Caution:

Always make sure that discharge gas is
flowing before heating and powering up
the detector.

1. Before installing the column, set the gas flow to

30 ml/min (measured at the detector vent). Let it
flow for 15 minutes so that all air is purged from the
helium purifier.

2. Plug in the helium purifier.

3. Install the column as illustrated at right.

4. Turn on the MAINS switch on the back of the

controller. Set the MODE switch on the front
panel of the controller to PDHID.

5. Set the detector temperature and allow time for

the detector and helium purifier to reach the set
temperature.

6. Turn on the DISCHARGE switch on the front panel

of the controller.

The discharge should start within five minutes. In a
clean system, the discharge will have a peach/pink color.
A purple discharge indicates leakage or impurities in the
system.

7. Check the standing/background current on the

controller display. Optimum current is 1.0 - 2.5 nA.

11.4 cm

COLUMN
INLET

COLUMN
FERRULE

NUT

CAPILLARY
COLUMN

CAPILLARY
COLUMN
ADAPTER
(IZERA1.5)

9.8 cm

(set at the

factory)

COLUMN
INLET

PACKED
COLUMN
ADAPTER
(I-23642-D4RU)

PACKED

COLUMN

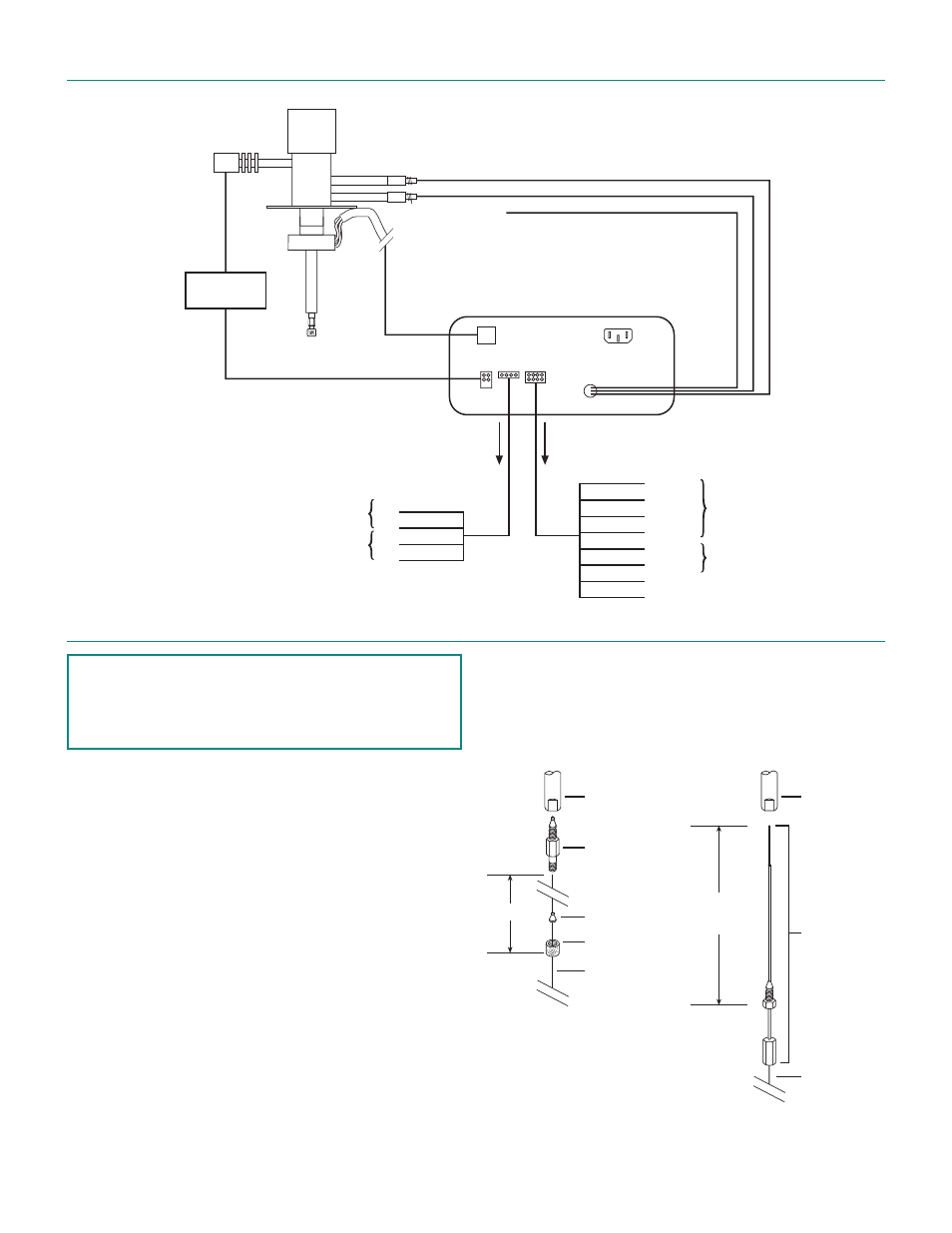

Initial Power-Up

Electrical Connections

CONTROLLER

(Rear panel)

ELECTROMETER
BIAS-A

BIAS-B

RED
BLACK
WHITE
GREEN
BROWN
BLUE
ORANGE
YELLOW

RED
BLACK
GREEN
WHITE

0 - 10 V
Common
0 - 1 V
Shield
COM
SET

UNATTENUATED
OUTPUT

AUTO
ZERO

TO COMPUTER
OR INTEGRATOR

+

ATTENUATED

OUTPUT

SHIELD

TO

RECORDER

(no connection)

HEATER CABLE
FROM DETECTOR

PULSER

MODULE

HIGH

VOLTAGE
