Technical Drawings
1 GRY 2 VIO 3 BLU 4 WHT 5 BLK 6 N/C
1 ORN 2 RED 3 BRN 4 YEL 5 GRN 6 N/C
6 N/C
5 GRN
4 YEL
3 BRN
2 RED
1 ORN
6 N/C
5 BLK
4 WHT
3 BLU
2 VIO
1 GRY
BRN

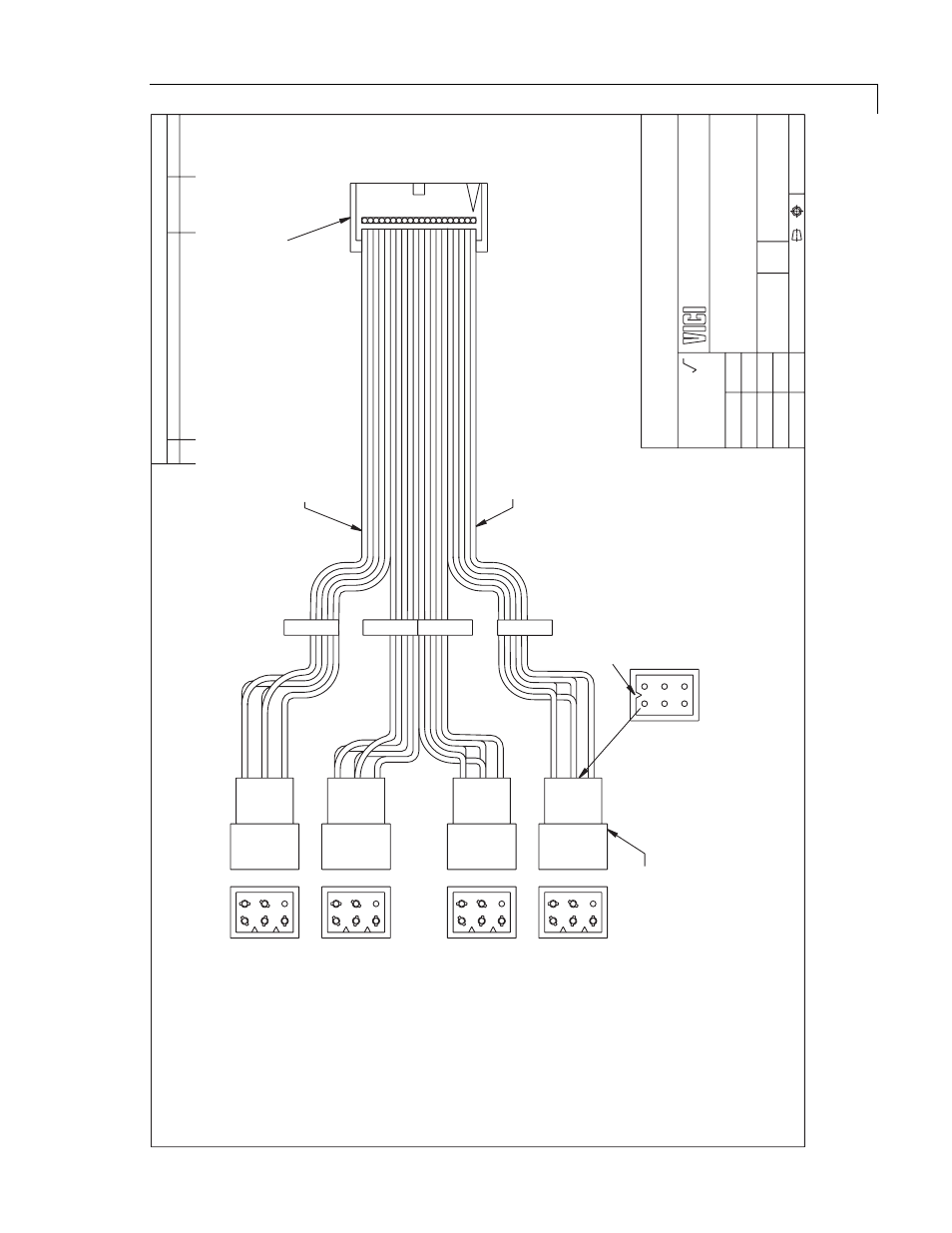

20 PIN IDC CONNECTOR #609-2030
STRAIN RELIEF #609-2031
20 PIN FLAT CABLE 6'-0" LONG
REAR VIEW OF CONNECTOR
NOTCH
6 PIN MOLEX CONNECTOR #03-06-2061 (4 EACH)
MALE MOLEX PINS #02-06-2132 (20 EACH)
PIN #
4 4 4 4
3 3 3 3
2 2 2 2
1 1 1 1
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
6
5
4
1
2
3
6
5
4
1
2
3
6
5
4
(CONTACT CLOSURE) (CONTACT CLOSURE) (COMMON) (LOAD) (INJECT)
(INJECT)
(LOAD)
(COMMON)
(CONTACT CLOSURE)
(CONTACT CLOSURE)
(CONTACT CLOSURE) (CONTACT CLOSURE) (COMMON) (LOAD) (INJECT)
(CONTACT CLOSURE) (CONTACT CLOSURE) (COMMON) (LOAD) (INJECT)
I-T03062061
I-T02062132
I-W-R/20
I-T6092031
I-T6092030
DJM
12/4/87
22041
SVI
22041
CABLE ASSY.
2 POS INTERFACE SVI
I-22041
A
CHG REF. GREEN TO COMMON ECN# 2816
12OCT95
JDURR
REVISIONS
DESCRIPTION
DATE
INITIATED
LTR
B
USA PROJECTION
SHEET
SIZE
DRAWING NO.
SCALE
Valco Instruments Co., Inc.
ANGLES
1
SUB-DIR
63
DATE
OF
APPROVED
DRAWN
DESIGNED
FRACTIONS
OTHERWISE SPECIFIED
TOLERANCES UNLESS
1/64"
CHECKED
FILE NAME
DEC.
.X.1
.XX.01
.XXX.005
THIS DOCUMENT AND THE INFORMATION WHICH IT CONTAINS SHALL NOT BE USED, EXPLOITED OR SOLD, AND SHALL NOT BE REVEALED OR DISCLOSED TO OTHERS WITHOUT THE EXPRESSED WRITTEN PERMISSION OF VALCO. THIS DOCUMENT SHALL REMAIN THE PROPERTY OF VALCO AND SHALL BE RETURNED UPON DEMAND.
