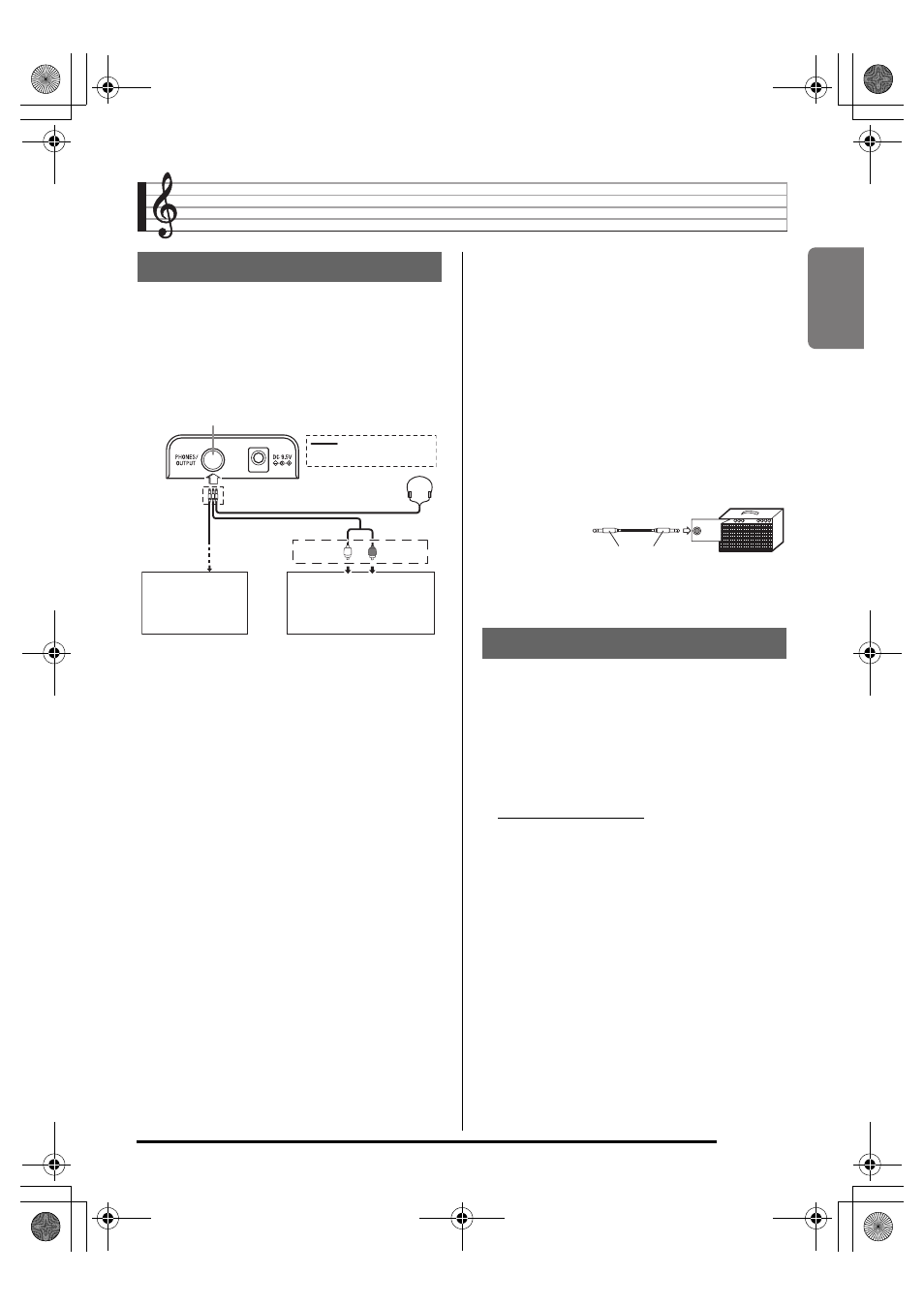

Connections
Before connecting phones or other external
equipment, be sure to first turn down the volume
settings of the keyboard and the connected
equipment. You can then adjust volume to the
desired level after connections are complete.
[Rear Panel]
Connecting Phones (Figure  )
Connecting phones cuts off output from the
keyboard’s built-in speakers, so you can play even
late at night without disturbing anyone.
Audio Equipment (Figure  )
Connect the keyboard to an audio equipment using
a commercially available connecting cord with a
standard plug on one end and two PIN plugs on the
other end. In this configuration, you normally set
the input selector of the audio equipment to the
terminal (usually marked AUX IN or something
similar) where the cord from the keyboard is
connected. See the user documentation that comes
with your audio equipment for full details.
Musical Instrument Amplifier (Figure  )
Use a commercially available connecting cord * to
connect the keyboard to a musical instrument
amplifier.
* Be sure to use a connecting cord that has
standard plugs on the ends you connect to the
keyboard and amplifier.
When connected to a musical instrument amplifier,
set the volume of the keyboard to a relatively low
level and make output volume adjustments using
the amplifier’s controls.
[Connection Example]
Use only the accessories and options specified for
this keyboard. Use of non-authorized items creates
the danger of fire, electrical shock, and personal
injury.
• You can get information about accessories that
are sold separately for this product from the
CASIO catalog available from your retailer, and
from the CASIO website at the following URL.
http://world.casio.com/
Phones/Output Terminal
1
3
2
PHONES/OUTPUT Terminal
LEFT
AUX IN or similar
terminalof audio amplifier
RIGHT
White Red
PIN plug
Stereo standard plug
Keyboard amp,
guitar amp,etc.
Audio connection
Accessories and Options
INPUT
To keyboard’s
PHONES/OUTPUT
jack
Standard plug
Keyboard or
guitar amp
