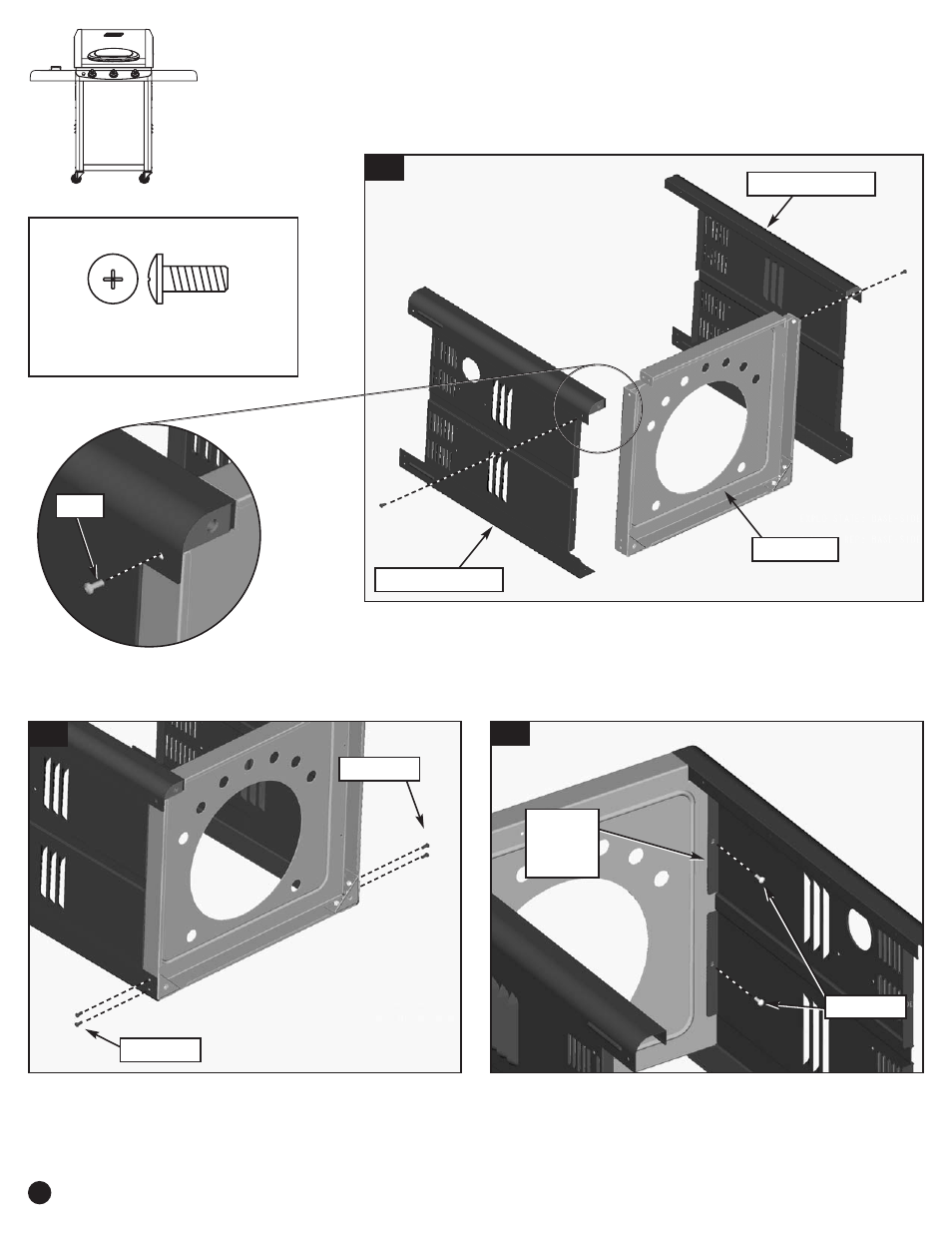

1-A. Arrange the two panels and the base on the ground as shown.
Ц Ц LOOSELY assemble the Right Panel and the Left Panel to the Grill Base
using one screw (TN) in each top corner.
Ц Ц NOTE: Use a large piece of cardboard or a ground
cloth to protect the painted finish on the grill.
Step
1
1-B
1-B. LOOSELY assemble two fasteners (TN) into each bottom
corner from the outside.
TN (x2)
TN
1-A
Base
Right Panel
Left Panel
8
(TN)
M6 x 15mm Screw
(10) Qty.
Hardware shown actual size
TN (x2)
1-C
1-C. LOOSELY assemble two fasteners (TN) through the Left
Panel Flange into the Base (as illustrated).
Ц Ц Repeat Step 1-C on the Right Panel Flange.
TN (x2)
Left
Panel
Flange
