Ц Ц NOTE: Use a ground cloth
to protect the paint finish
during Step 7 and 8.
Ц Ц Assemble Right Side Table
to the Firebox.
7-A

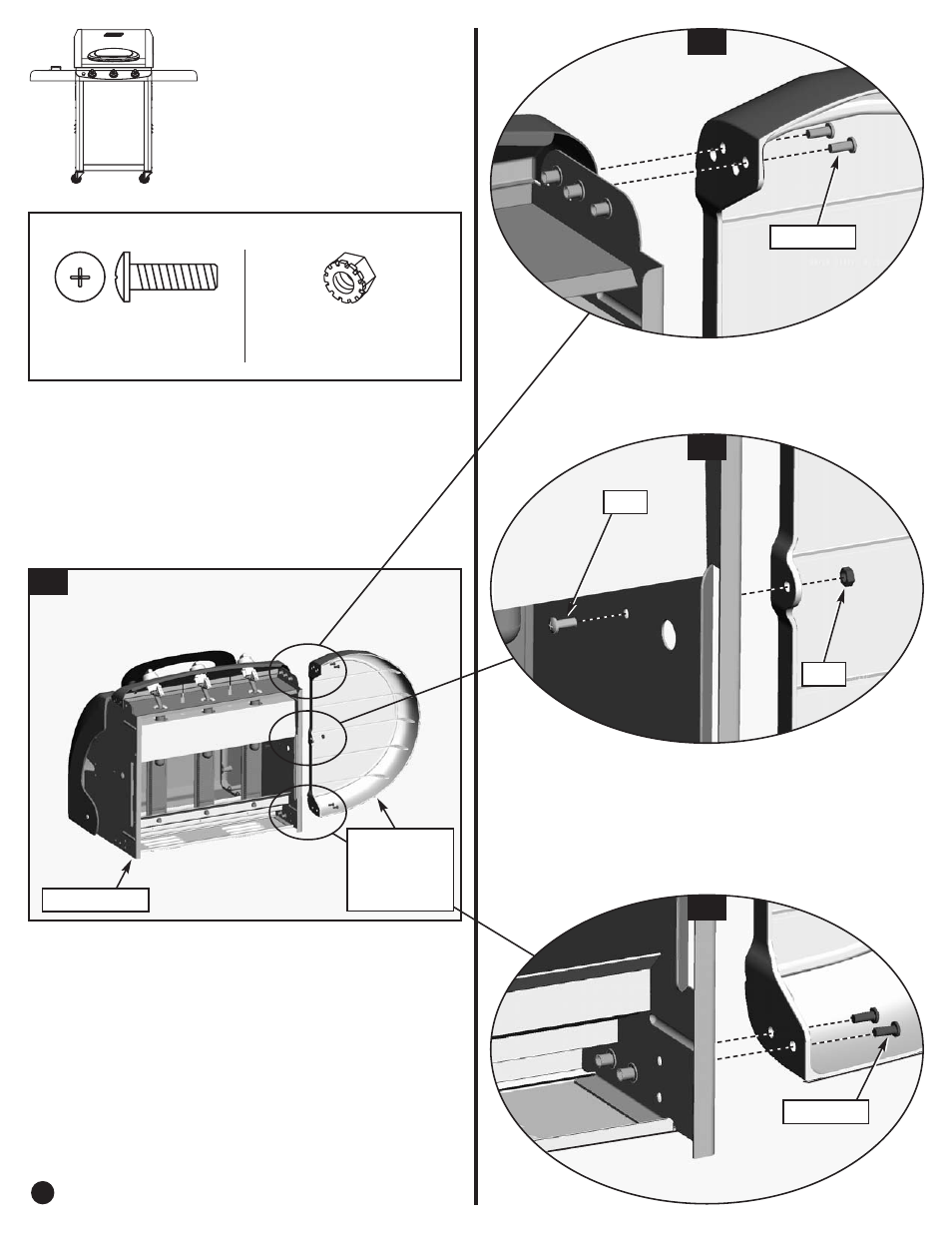

7-A. Lay the Firebox on it’s backside with lid closed . This
will allow easy access to the fastener locations.
Ц Ц Assemble the Right Side Table to the Firebox with
five Screws (CX) and one Locking Hex Nut (UO).
Place the Locking Hex Nut in the center position as
shown in 7-C.
Ц Ц Tighten all fasteners.
7-C
7-B
7-D
CX (x2)
UO
CX
CX (x2)
RIGHT
SIDE
TABLE
FIREBOX
Hardware shown actual size
(UO)
M6 Locking Hex Nut
(1) Qty.
Step
7
12
(CX)
M6 x 20mm Screw
(5) Qty.
