PAGE 4 SS85 SURGE OPERATION / MAINTENANCE MANUAL
Pump Assembled Height: IN (CM)
MAGNUM 610 14.82 (37.65)
MEGA 960 17.12 (43.49)
MAXIM 25 15.32 (38.91)
MAXIM 50 17.12 (43.49)
MAGNUM 620 14.97 (38.02)
1.2.b Inline
(10.67)
4.20
(28.96)
11.40
(14.63)
5.76
FLUID PORT FLUID PORT
FITTINGS (INCLUDED FITTINGS (INCLUDED
WITH TEE OPTION) WITH TEE OPTION)
(11.35)
4.47
(5.72)
2.25
(9.53)
3.75
(6.99)
2.75
BASE MOUNTING BASE MOUNTING
SLOTS .28 (.71) WIDE SLOTS .28 (.71) WIDE
IN
(CM)
MTD0398

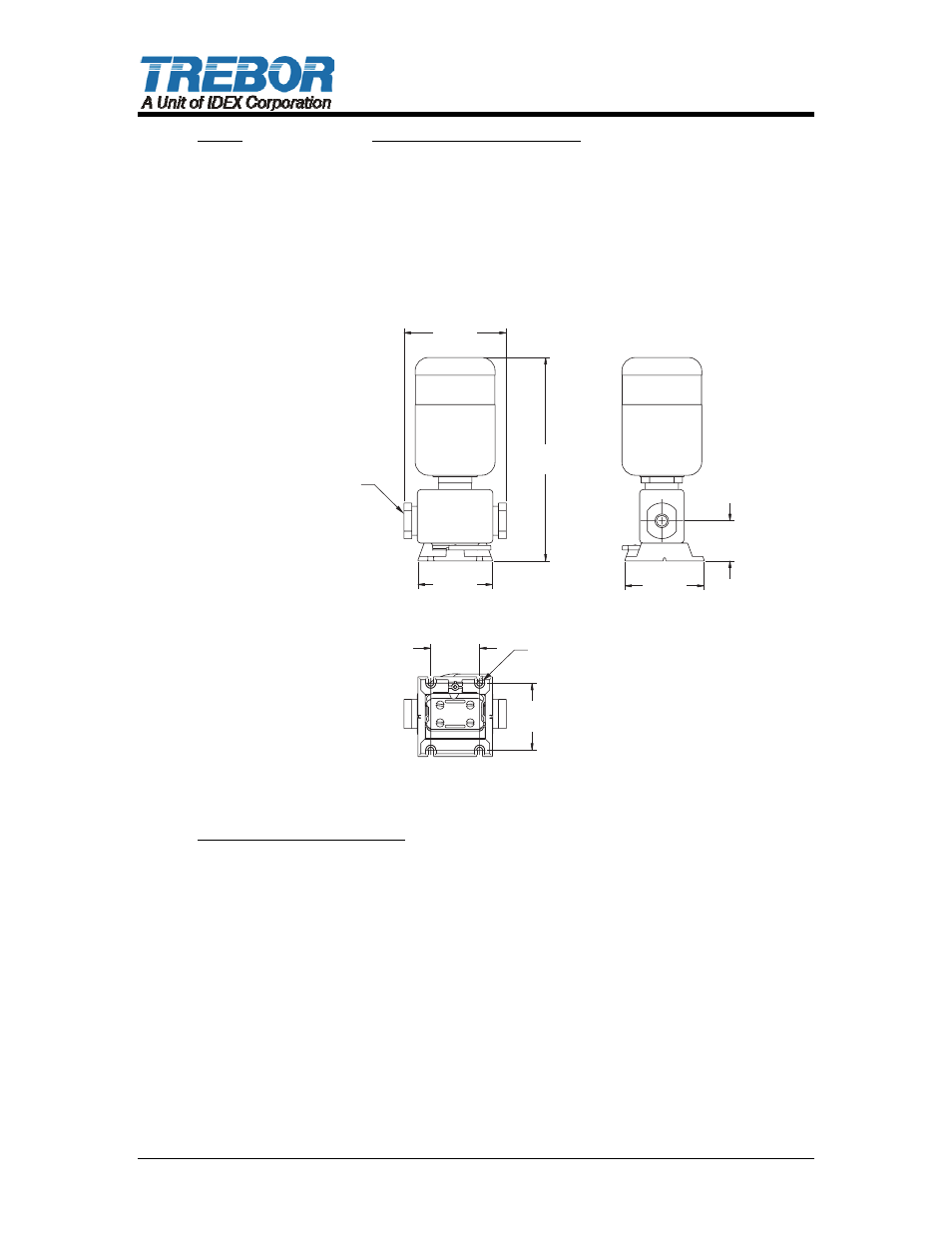

Figure 1-2
Assembled Height: IN (CM)
11.41 (28.99)
