Figure 2 – Connect Tech BlueStorm Multi-port Serial Adapter User Manual

Page 8

background image

BlueStorm/LP Installation Guide, Connect Tech Inc.

8 Revision 0.05

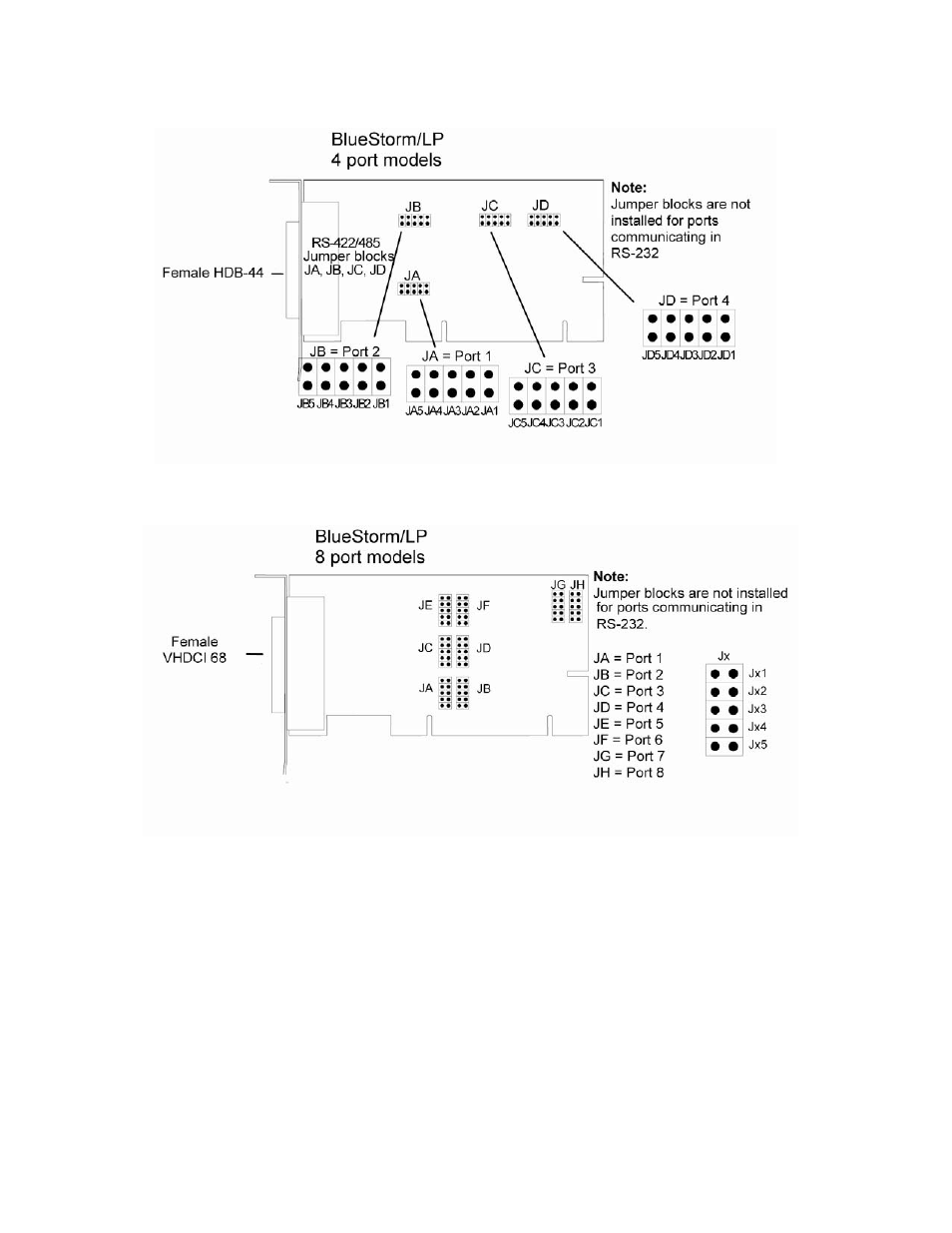

Figure 2: BlueStorm/LP jumper block locations 4 port models

Figure 3: BlueStorm/LP jumper block locations, 8 port models
