Brightness
• 10000 ANSI lumens +/- 10%
• Over 90% brightness uniformity
Contrast Ratio
• 300:1 ANSI, 500:1 full field
Resolution
• 1024 x 768 true resolution with resizing
capabilities to scale down from 1280 x
1024 and scale up from 640 x 480
• 16.7 million displayable colors
• 3-DMD™ Optical System (SLIC™)
• 13-bit user selectable gamma table
Horizontal Frequency
• 15kHz to 120kHz
Vertical Frequency
• 24Hz to 120Hz
Dot Clock
• 160 MHz
Field Interchangeable Optional Lenses
• Fixed short throw lens: 0.8:1
• Zoom lenses: 1.5-2.5:1, 2.5-4:1, 4-7:1
• Vertical lens offset: Up to 100% for
off-axis projection
• Horizontal lens offset: Up to 75%
• Intelligent Lens Systems (ILS™);
automatic adjustment of zoom (with
zoom collar), focus, vertical and
horizontal lens offset
• Lens mount tilt adjustment
• Built-in light shutter
• Screen size 72" to 480"(1.8 m – 12.2m)
diagonal image size (lens dependent)
• Motorized lens mount
Dynamic Scaling
• Resizing processing for computers
and workstations up to 1600 x 1200
resolution
• Independent horizontal and vertical
image size adjustment for graphics
and video
Inputs
• Input 1: Analog RGB 5 BNC for
RGBHV, YPrPb, YCbCr and YUV
• Input 2: Optional plug-in input
modules
• Separate, composite sync and sync-
on-green compatible
• HDTV Tri level sync compatible for all
known HDTV formats
Stereoscopic Source Compatibility
• Active stereo XGA with vertical refresh
rates up to 120Hz, with one field
delay, without frame dropping
• In 3D mode, inputs must be in RGB
Enhanced Feature Set
• Variable lamp power
(1.4 - 1.9kW on lamp)
• Intuitive on-screen display (OSD)
• Service functions can be
password protected
• Multiple language support
• 100 channel memories
• Dark Interval Adjustment (DIA™)
• Auto set-up feature
Control/Networking
• Auto power-up
• Dual RS232 and dual RS422
communication port
• IR Remote keypad
• Front and rear IR receiver
• Optional 2-way controller RS422
• Built-in backlit keypad
Lamp Specifications
• 1900W Xenon ® lamp
• Color temperature range 3200K
to 9300K
• Over 1000 hours of lamp life
• User replaceable lamp
Power Requirements
• Voltage range: AC 220 - 240V +/- 10%
• Line frequency: 50 - 60 Hz nominal
• Power consumption: 2800W maximum
• In-rush current rating: 60A maximum
• Current rating: 14 Amps maximum
at 200VAC
Environmental
• Operating temperature: 0 - 35° C
• Operating humidity: 20 - 80% non-
condensing
Diagnostics
• Built-in diagnostics LCD display indicates
operational status and error messages
• Power and status LEDs
• Full diagnostics through RS232
9-pin D connector
Size and Weight
• 220 lbs. (100 kg)
• 29" W x 54" L x 16" H
• 73.7cm W x 137.2cm L x 40.6cm H
Standard Accessories
• IR (infrared) remote keypad -
includes batteries
• User manual
• Warranty Registration Card
• 4 eyebolts for hoisting: 1/2"-13 x 1 1/2"
Optional Accessories
• Wired two-way remote controller
(RS422) with LCD display
• Remote IR sensor
• Replacement lamp kit
• Multi-standard video decoder
(NTSC 3.58, NTSC 4.43, PAL,PAL 60,
PAL M, PAL N, SECAM)
• DVI/DFP module
• Digital HDTV module (SMPTE 292)
• Service manual
• Vista compatible analog input modules
• Compatible with selected third
party switchers
• Librarian communication software
• Serial Digital Input (SMPTE 259M/
CCIR 601)
• 10-bit ADP (Advanced Digital Processing)
used in non-stereo mode
• Arbitrary Gamma Table Software
• Wired remote backlit keypad
• Optional sound reduction kits
Regulatory Approvals
• Safety: CSA C22.2 No. 950, UL 1950,
EN609050 European Norm "Safety of
Information Technology Equipment"
• 47CFR 2 and 15 (FCC) Class A - US -
Conducted and Radiated Emissions
Standards
• CRC 1374 (DOC) Class A - Canadian -
Conducted and Radiated Emissions
Standards
• Emissions per EN50081-1; Immunity
per EN50082-1
• ESD Susceptibility: EN61000-4-3 Level 3
• Radiated Susceptibility: EN61000-4-3
Level 3
• EFT/Burst: EN61000-4-4 Level 4
• Input transient protection: EN61000-4-5
Level 3
Warranty
• 1 year parts and labor
• Accessories: One year
Mirage 10000
•
Specifications

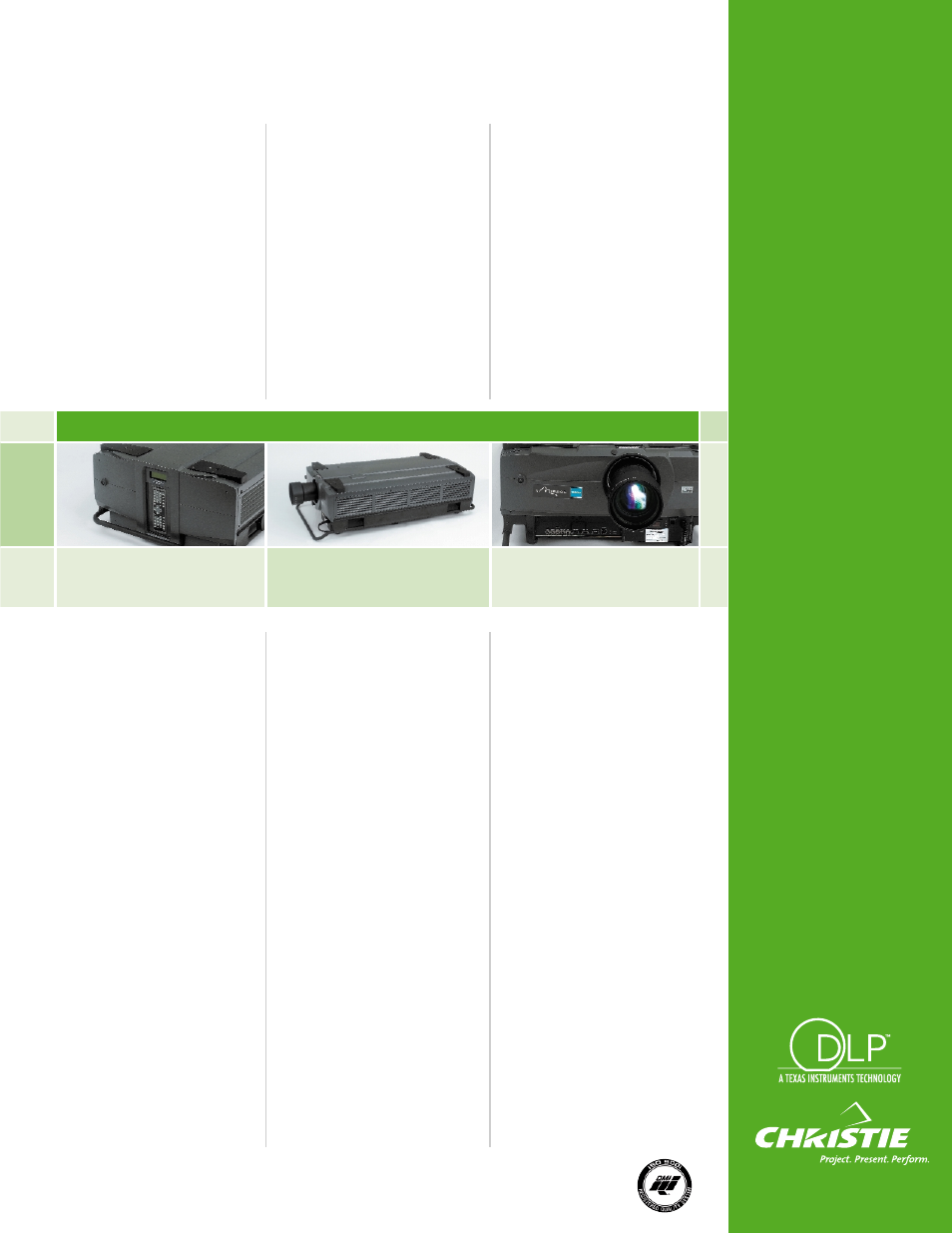

• Christie-designed electronics provide the
most advanced digital signal processing
for all types of stereo images. • The Mirage 10000 is fully digital and
requires only one projector to
produce stereoscopic images. • Intelligent Lens System (ILS™)
recalls focus, zoom and positioning
settings of each input source.
