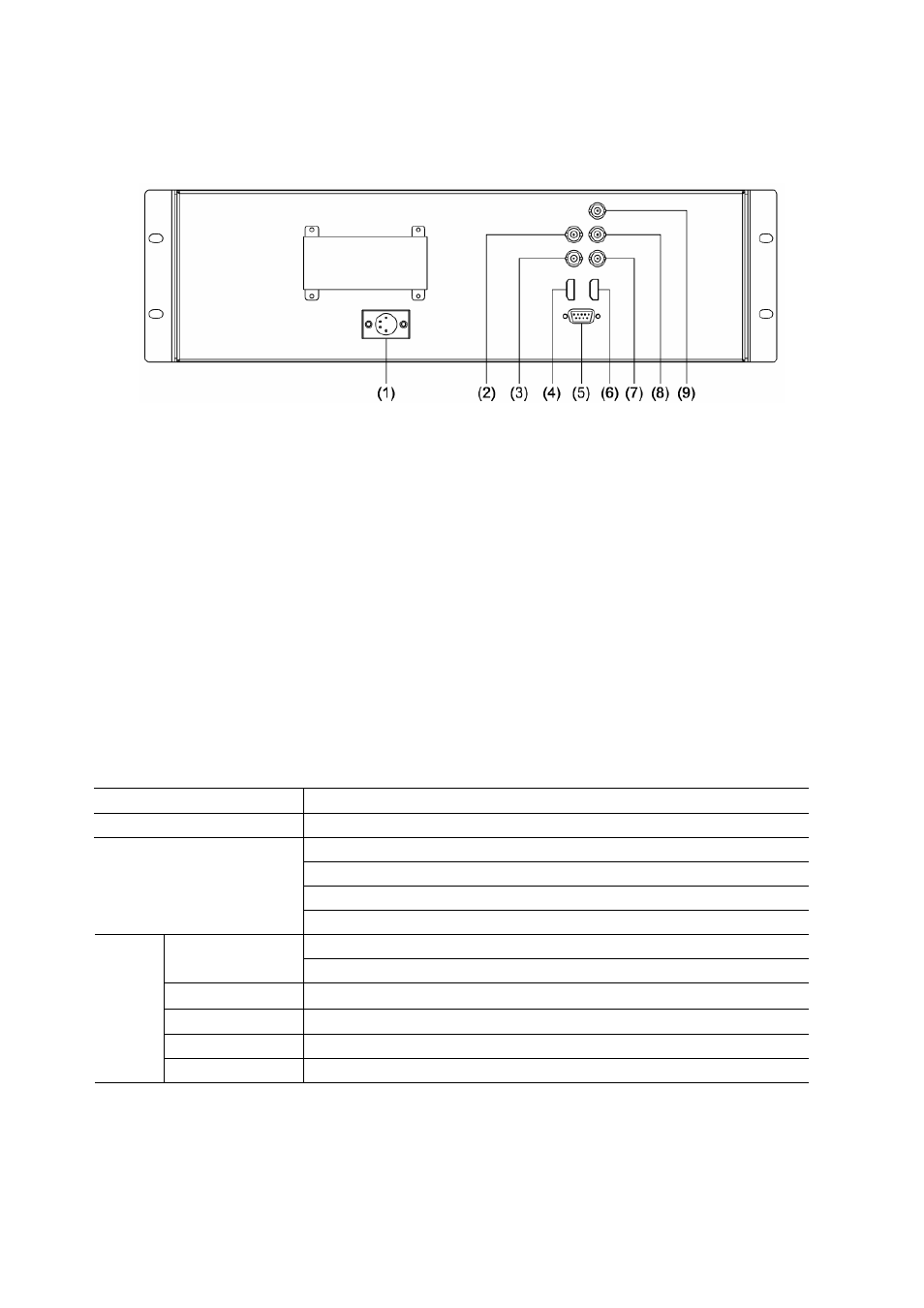

Rear view
⑴ DC 12V IN: Connect with DC12V 4-pin XLR power adapter. (Pin 1: Negative, Pin 4: Positive)
⑵ SDI-LOOP1: HD/SD-SDI loop through output from SDI-IN1 (BNC connector)
⑶ SDI-LOOP2: HD/SD-SDI loop through output from SDI-IN2 (BNC connector)
⑷ HDMI-IN: HDMI input
⑸ TALLY controlling port (RS-232)
⑹ HDMI-LOOP: HDMI loop through output
⑺ SDI-IN2: HD/SD-SDI input (BNC connector)
⑻ SDI-IN1: HD/SD-SDI input (BNC connector)
⑼ CVBS-IN: Composite video input (BNC connector)
Input formats
Input Supported formats
CVBS PAL / NTSC
480I / 576I / 480P / 576P
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
HDMI
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
SMPTE-274M
1080p (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-RP211 1080psf (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-296M 720p (60 / 59.94 / 50)
SMPTE-125M 480i (59.94)
SDI
ITU-R BT.656 576i (50)
