2. Panel Instruction

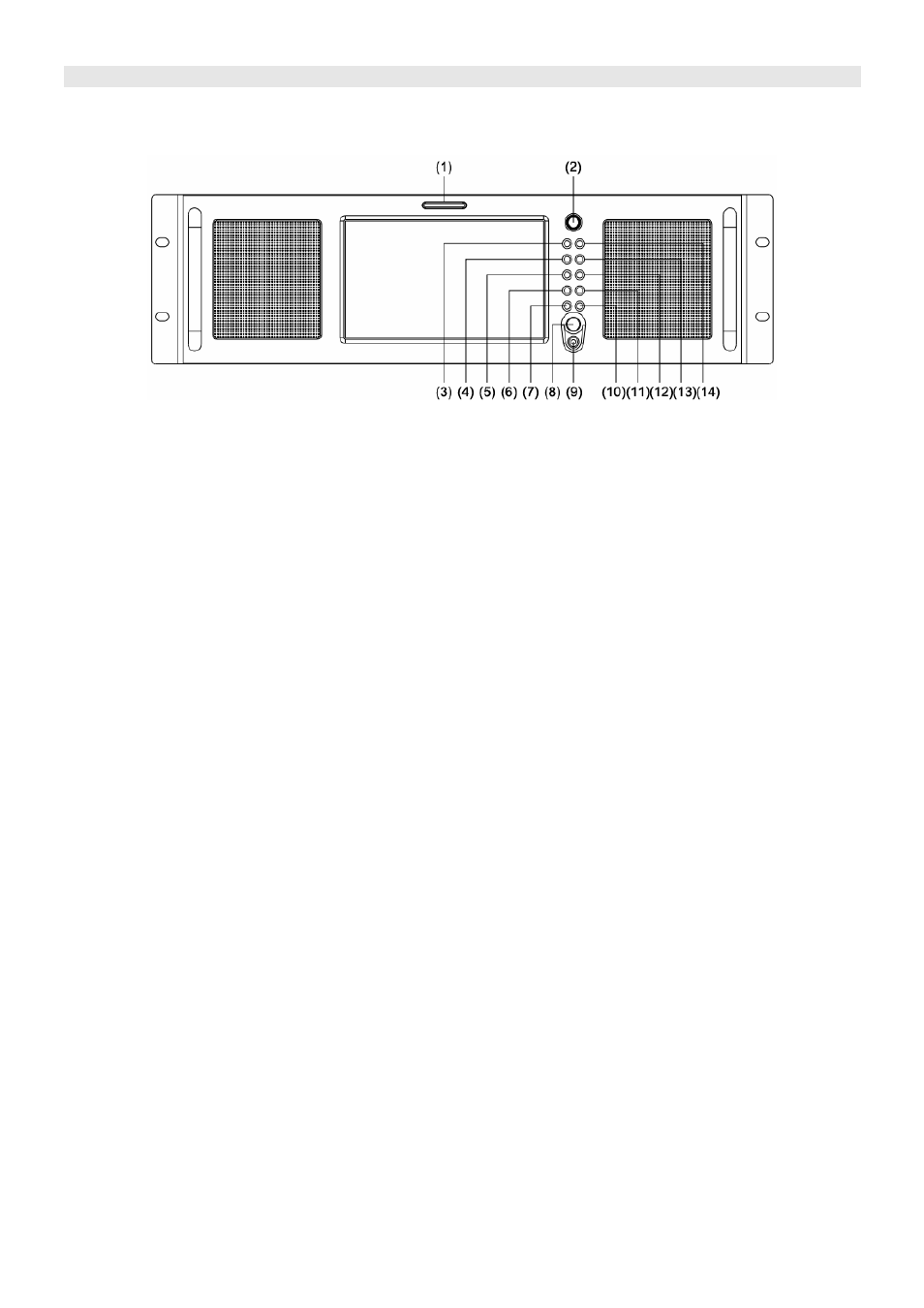

Front view
⑴ TALLY Light: Red, Green and Yellow 3-color TALLY indicator
⑵ ENTER: Select and Apply
Under menu system, revolve “ENTER” knob to adjust settings and press to apply; and out of menu
system, directly revolve “ENTER” to adjust volume.
⑶ SOURCE: Input signal selection
Press “SOURCE” and revolve the “ENTER” to select the input video signal.
⑷ F1: User definable function key 1
⑸ F2: User definable function key 2
⑹ A-WFM: Press to switch on the audio peak waveform display.
⑺ A-SEL: Audio pair channels selection.
Press “A-SEL”, and revolve “ENTER” to select a pair channels audio, for Lissajous pattern and peak
waveform display, and output via earphone or speaker.
⑻ POWER: Power on/off
Connect with power cable, press the “POWER” to switch on the monitor. Press again to switch off.
Disconnect with power cable if the monitor will not be used for a period of time.
⑼ PHONE: 3.5mm Earphone socket, for SDI and HDMI embedded audio monitoring
⑽ A-BAR: Press to switch on the VU/PPM audio bar display.
⑾ LISSAJOUS: Press to switch on the audio Lissajous pattern display.
⑿ F3: User definable function key 3
⒀ DISPLAY: Display current settings
Press “Display” to switch on/off the safety mark, title and the current input signal information
⒁ MENU: Press to enter Menu system
