2. Panel Instruction

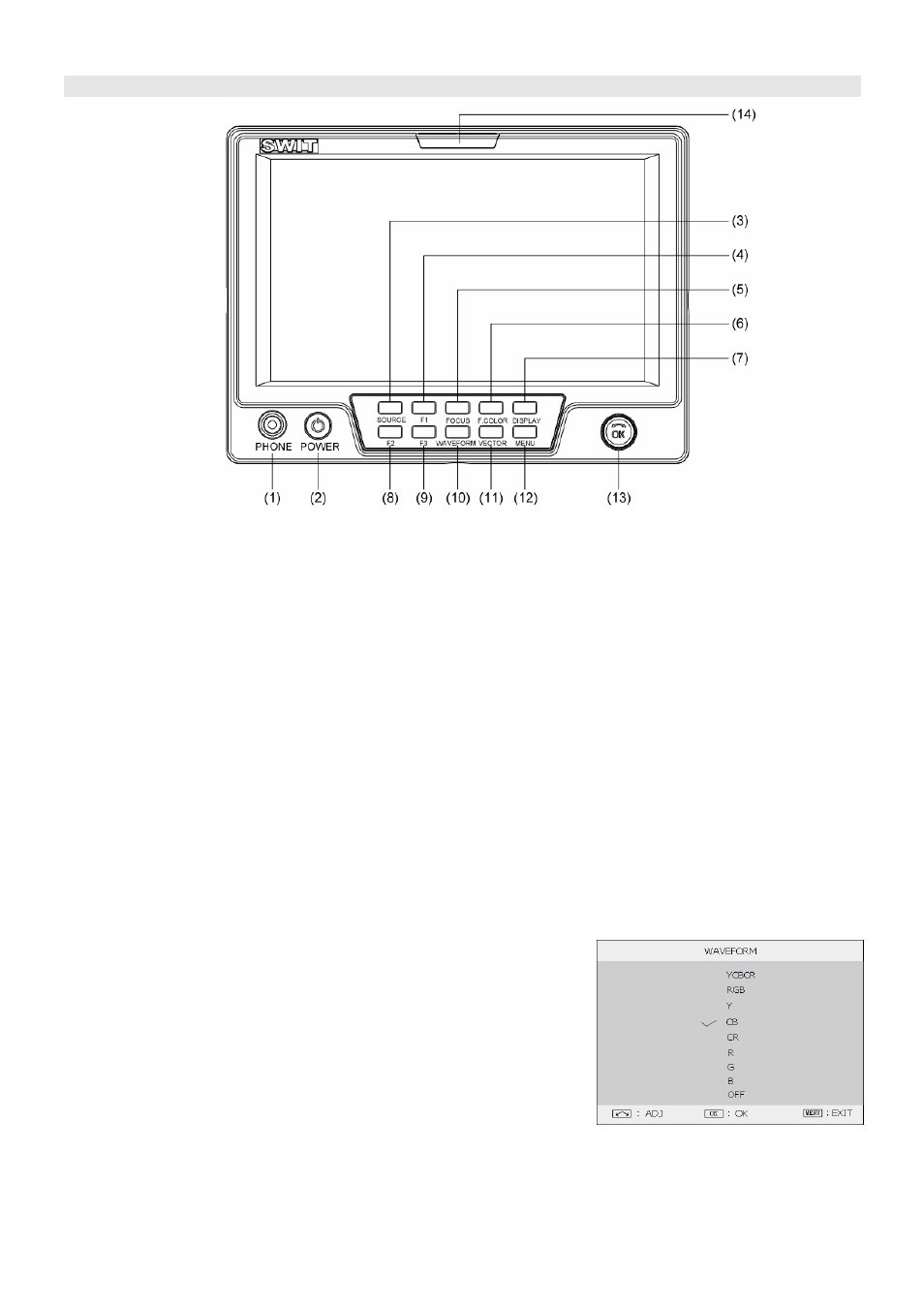

Front view
⑴ PHONE: Earphone jack, for SDI embedded audio, HDMI embedded audio monitoring
⑵ POWER: Power on/off
Connect with power cable, press the “POWER” to switch on the monitor. Press again to switch off.
Disconnect with power cable if the monitor will not be used for a period of time.
⑶ SOURCE: Input signal selection
Press “SOURCE” and revolve the “OK” to select the input video signal.
⑷ F1: User definable function key 1
⑸ FOCUS: Peaking Focus Assist
Press “FOCUS” once, it will display the current peaking on/off status. Press “FOCUS” again to switch on
RED line focus assist, switch on BLUE line focus assist, and switch off in turn.
⑹ F.COLOR: False color
Press “F.COLOR” once, it will display the current false color on/off status. Press “F.COLOR” again to
switch on/off the false color mode.
⑺ DISPLAY: Display current settings
Press “Display” to display safety mark, title and the current input signal information
⑻ F2: User definable function key 2
⑼ F3: User definable function key 3
⑽ WAVEFORM: Display waveform
Press “WAVEFORM” once, it will display the waveform menu as:
Revolve “OK” to select a waveform display mode and turn it on.
The selected waveform will display on the screen.
⑾ VECTOR: Display vector scope
Press “VECTOR” to switched on/off the Vector scope
⑿ MENU: Press to enter Menu
⒀ OK: Select and Apply in Menu system
Out of Menu system, and with PIP window on, revolve “OK” to adjust the window position;
Out of Menu system, and without PIP window, revolve “OK” to adjust volume..
⒁ TALLY Light: Red and Green 2-color TALLY indicator
