SWIT Electronics S-1071C - Manual (Page 6)

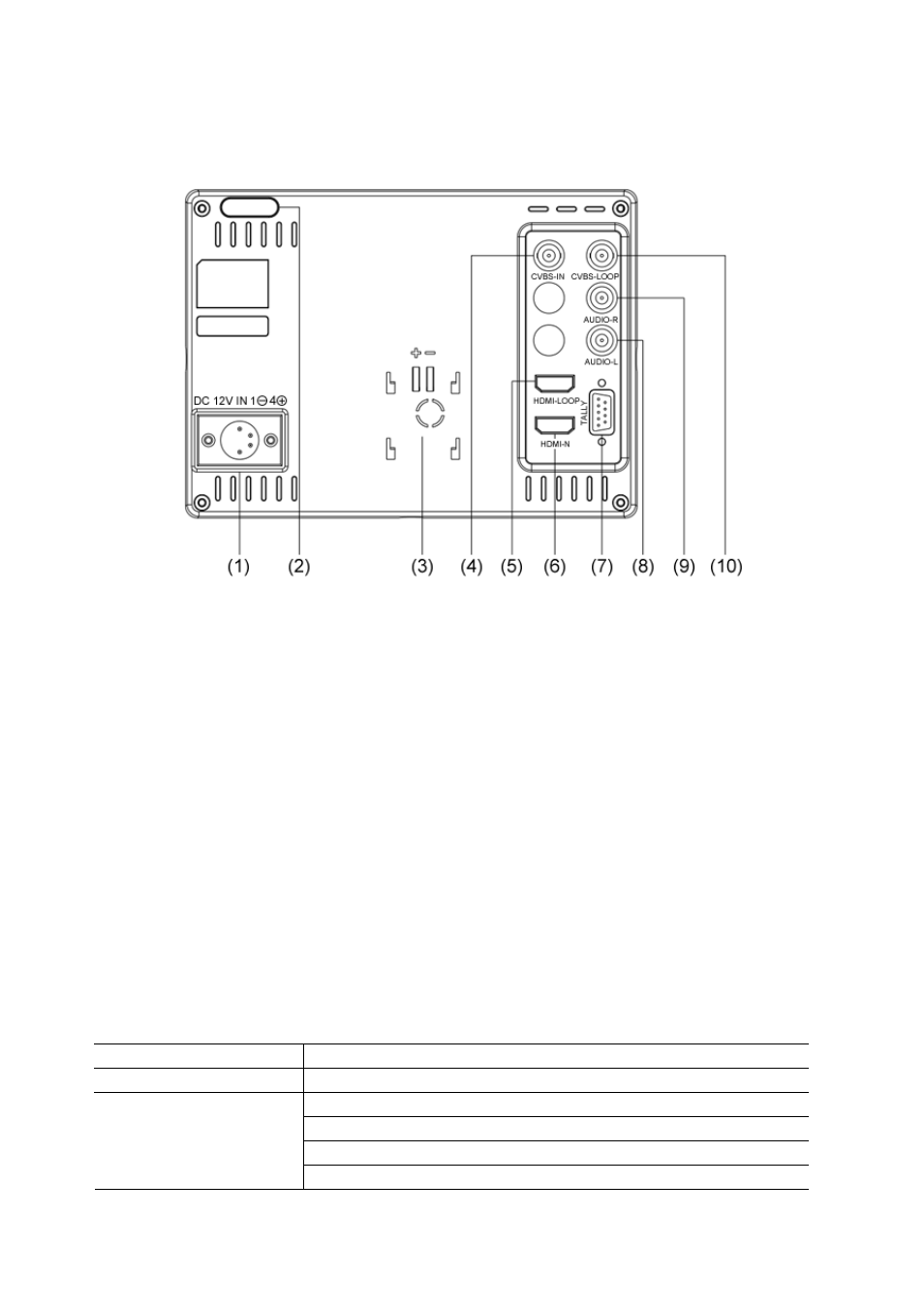

Rear view
⑴ DC 12V IN: Connect with DC12V 4-pin XLR power adapter. (Pin 1: Negative, Pin 4: Positive)
⑵ TALLY Light: Red, Green and Yellow 3-color TALLY indicator
⑶ Battery mount install:
Connect with Gold mount, V-mount, or SWIT S-7004 series snap-on DV mounts,
See details in “Optional Battery Mount”.
⑷ CVBS-IN: Composite video input (BNC connector)
⑸ HDMI-LOOP: HDMI loop through output
⑹ HDMI-IN: HDMI input
⑺ TALLY controlling port (RS-232)
⑻ AUDIO L: Stereo audio left channel input (RCA connector)
⑼ AUDIO R: Stereo audio right channel input (RCA connector)
⑽ CVBS-LOOP: Composite video loop through output (BNC connector)
Input formats
Input Supported formats
CVBS PAL / NTSC
480I / 576I / 480P / 576P
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
HDMI
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
