2. Panel Instruction

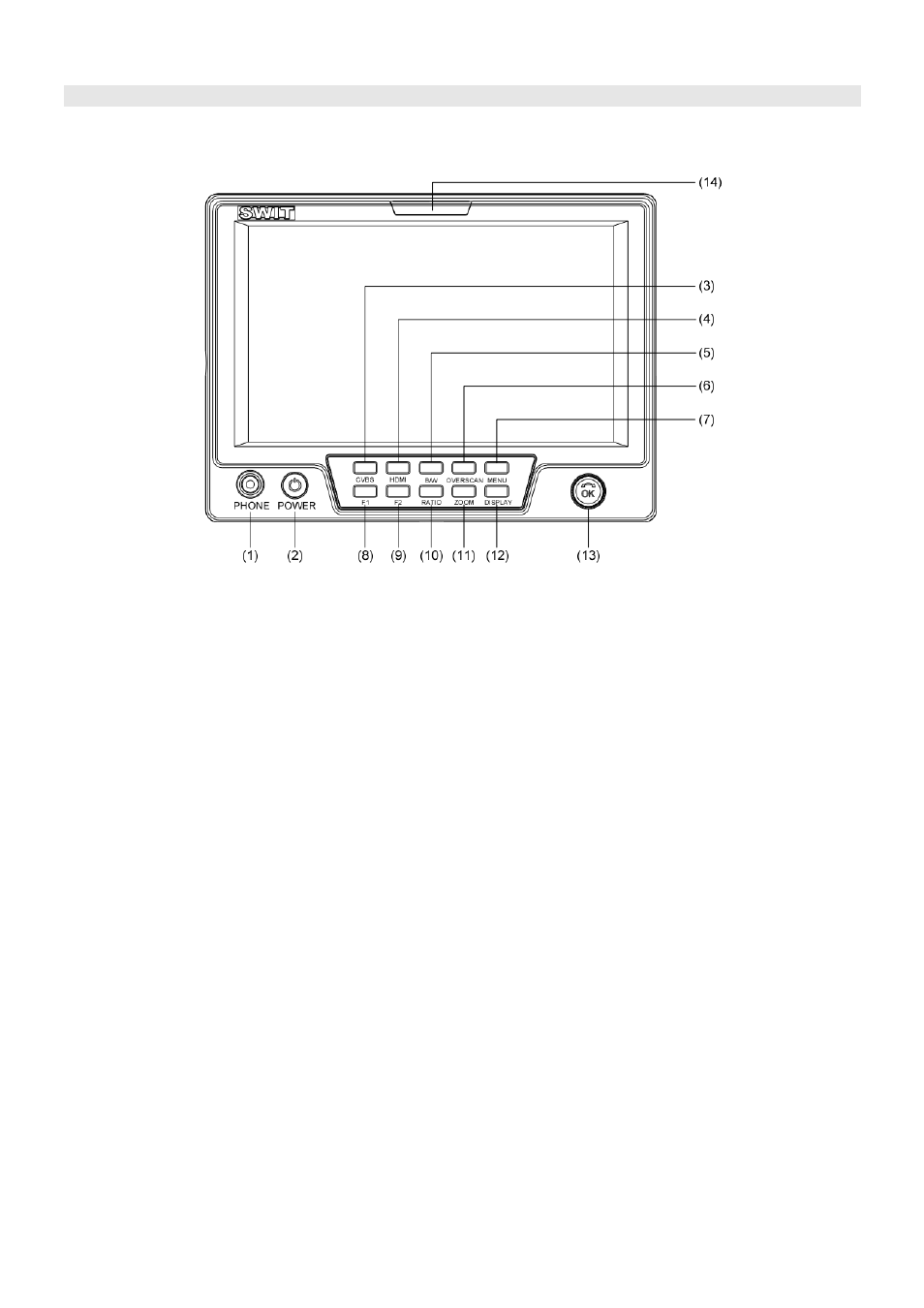

Front view
⑴ PHONE: 3.5mm Earphone jack, for HDMI embedded audio and L/R analog audio monitoring
⑵ POWER: Power on/off
Connect with power cable, press the “POWER” and the monitor will be switched on and get into normal
working status. Press the “POWER” again, the indicator is turned off and monitor is switched off.
Disconnect with power cable or battery if the monitor will not be used for a period of time.
⑶ CVBS: Press to switch the input signal to Composite video
⑷ HDMI: Press to switch the input signal to HDMI
⑸ B/W: Black and White mode
⑹ OVERSCAN: Overscan / Underscan switch
⑺ MENU: Press to enter Menu
⑻ F1: User definable function key 1
⑼ F2: User definable function key 2
⑽ RATIO: 16:9 and 4:3 switch
⑾ ZOOM: Picture Zoom-in
Press “ZOOM” to switch ZOOM1: Canon DSLR scale zoom-in, and ZOOM2: pixel to pixel zoom-in.
⑿ DISPLAY: Display current settings
Press “Display” to display safety mark, title and the current input signal information
⒀ OK: Select and Apply
Under menu system, revolve “OK” to adjust settings and press to apply;
and out of menu system, directly revolve “OK” to adjust volume.
⒁ TALLY Light: Red, Green and Yellow 3-color TALLY indicator
