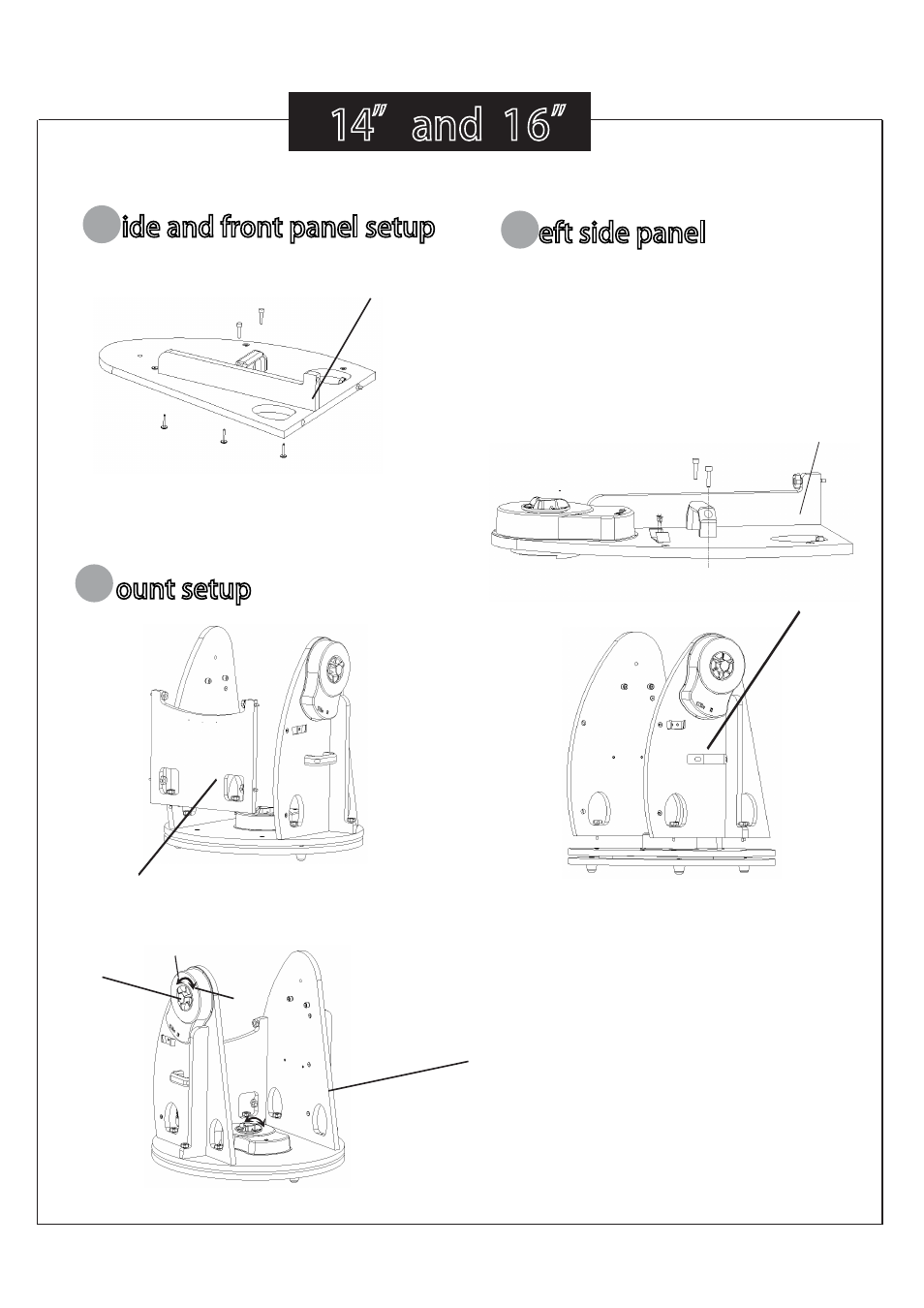

14”and 16”
S
ide and front panel setup
Right side panel
Reinforce board
Hex socket flat head screw 7X50
Reinforce board
Left side panel
assembly
When using GoTo and tracking
function , please tighten the
handwheel
Front panel
L
eft side panel
M
ount setup
Locate the hand control holder.
Using the two screws provided ,
attach the holder to the Left side
panel assembly
handwheel
loose
lock
