Owner’s Manual
THANK YOU FOR
CHOOSING REVEL
The Revel ® Performa ™ IC15 has been specifically designed
to deliver unsurpassed home theater sound reproduction
from an in-ceiling speaker that does not intrude on your
room or its décor.
Please take a moment to register your product on our
Web site at www.revelspeakers.com. It enables us to
keep you posted on our latest advancements, and helps
us to better understand our customers and build products
that meet their needs and expectations.
Unpacking the Speaker
Carefully unpack the speaker. If you suspect damage
from transit, report it immediately to your dealer and/or
delivery service. Keep the shipping carton and packing
materials for future use. All models include a mounting
template and paint shield.
PLANNING
YOUR SYSTEM
Sofa
Subwoofer
Left Front
Channel
Right Front
Channel

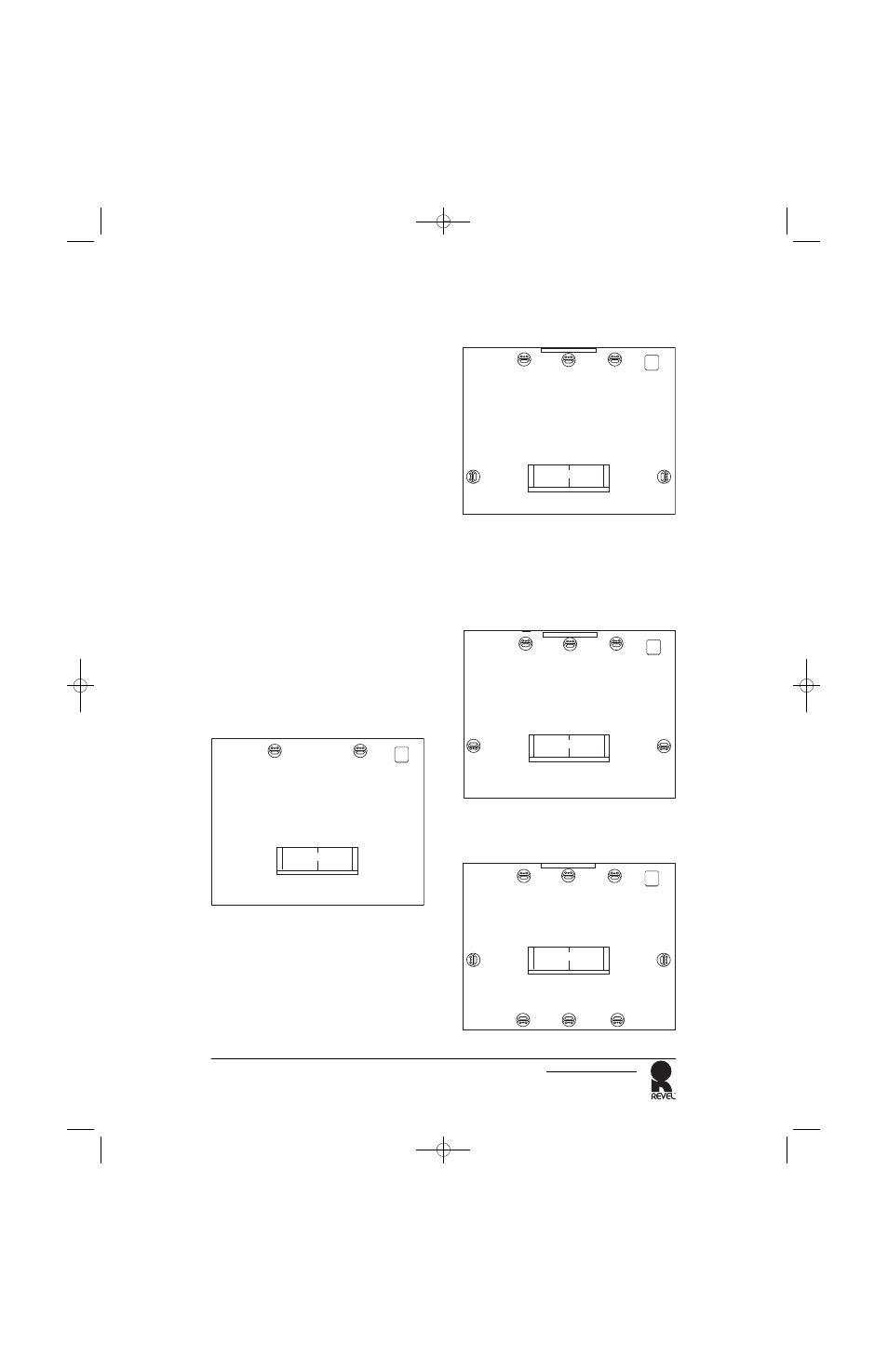

Figure 1. This overhead view shows a typical 2-channel
system arrangement.
Figure 2. This overhead view shows a typical home
theater system arrangement.
Sofa
Subwoofer
Left Front
Channel
Right Front
Channel
Center Channel
(above TV)
Left
Surround
Channel Right
Surround
Channel
Sofa
Left
Surround
Channel Right
Surround
Channel
Subwoofer
Left Front
Channel
Right Front
Channel
Center Channel
(above TV)
Figure 2a.
Figure 3. This overhead view shows a 6- or
7-channel home theater system arrangement.
Left/right rear channels are for a 7-channel system.
Center rear channel is for a 6-channel system.
Note: Revel IC 15 loudspeakers are intended for use with
one or more subwoofers. A powered subwoofer will add
impact and realism to both music and film soundtracks.
Contact your Revel dealer for recommendations on
subwoofer models for your application.
An alternative setup is to position the left and right
surround speakers with them “aimed” at the rear
wall (Figure
2a) – providing a more diffuse surround
sound field, for those preferring greater diffusion.
Such orientation provides good surround coverage,
even in home theaters with several rows of seating.
Sofa
Left
Surround
Channel Right
Surround
Channel
Left Rear
Channel
Right Rear
Channel
Center Rear
Channel
Subwoofer
Left Front
Channel
Right Front
Channel
Center Channel
(above TV)
