Attach the Mount Receiver
⑨
to the Front Clamp Assembly
⑩
using the two M6 Socket Head Cap Screws
④
and a 5mm hex
wrench (not included). Note: There is a wide and narrow part to the dovetail of the Mount Receiver. At this point it makes no
difference which way it is secured to the Front Clamp. However, when securing the Front Clamp to the center support of the
bench, the wider part of the dovetail needs to be at the top.

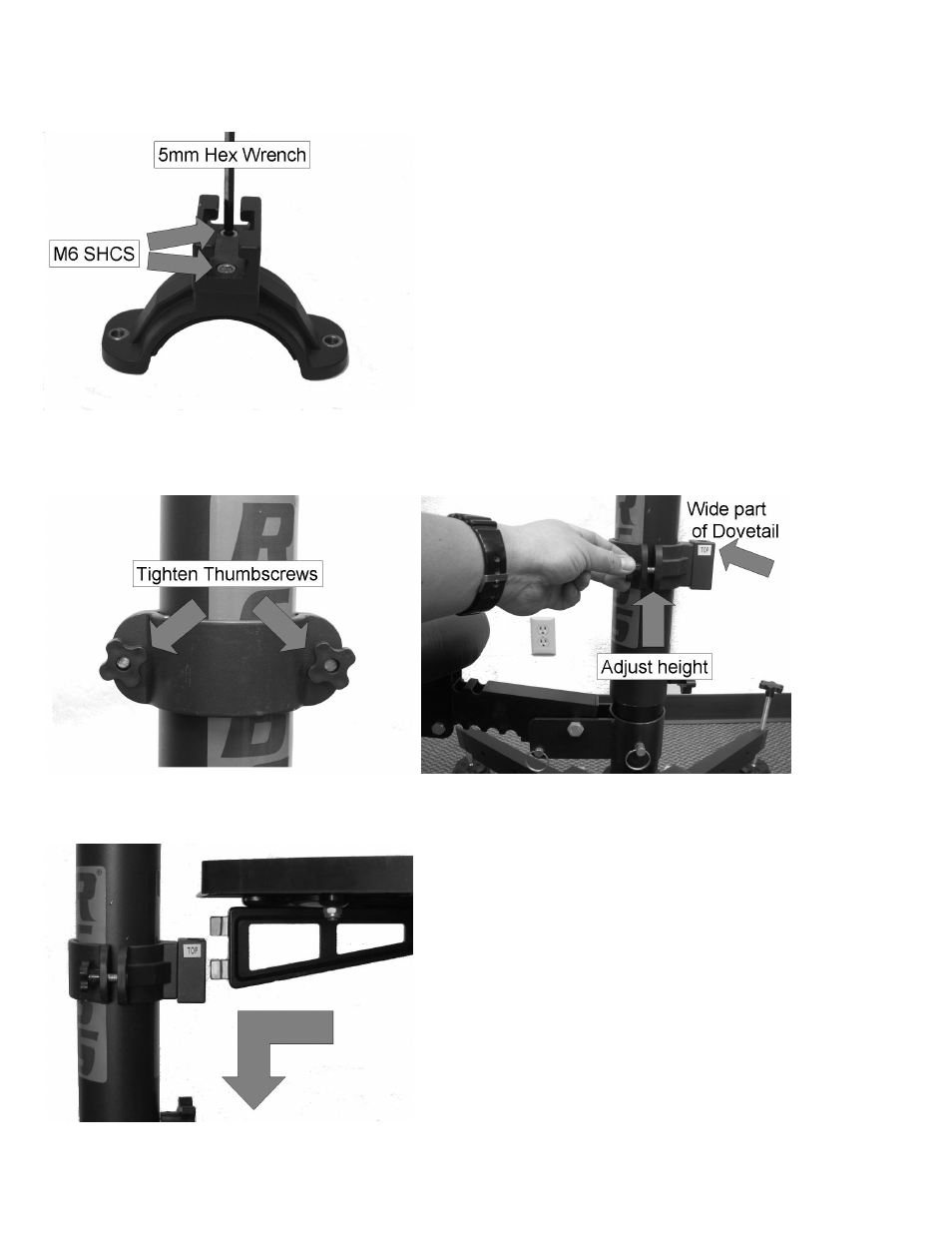

Attach the Front
⑩
and Rear Clamp
⑪
to the Center Support of your R.A.S.S. Bench with the two Thumb Screws
⑭
. The wide
part of the dovetail must be at the top and the dovetail should be opposite of your seat location. The height of the Clamps should
be just above your knees when seated on the R.A.S.S. Bench. (See photo) Adjust the height of the Clamps to your comfort.
Attach the Tray Top assembly to the Clamp. The dovetail features a ‘bayonet’ type mount, slide the bottom half of the Tray
Mounting Brace into the Mount Receiver and press downward. (See photo)
