INTRODUCTION
The RCBS R.A.S.S. Utility Tray has been designed specifically to provide ample area to keep your shooting related accessories
and extra ammunition close at hand. The Utility Tray also provides a convenient built in Drink Holder.
If additional storage is required, three locations are provided for the mounting of AkroBin® style boxes (AkroBins not included).
UNPACKING
Remove the contents from the packaging and lay them out in an orderly fashion to ease the assembly process.
ASSEMBLY INSTRUCTIONS
Using a 4mm hex wrench (not included), attach the Tray Support
⑦
to the Tray Brace
⑧
with the four M6 Funnel Head Cap
Screws
⑤

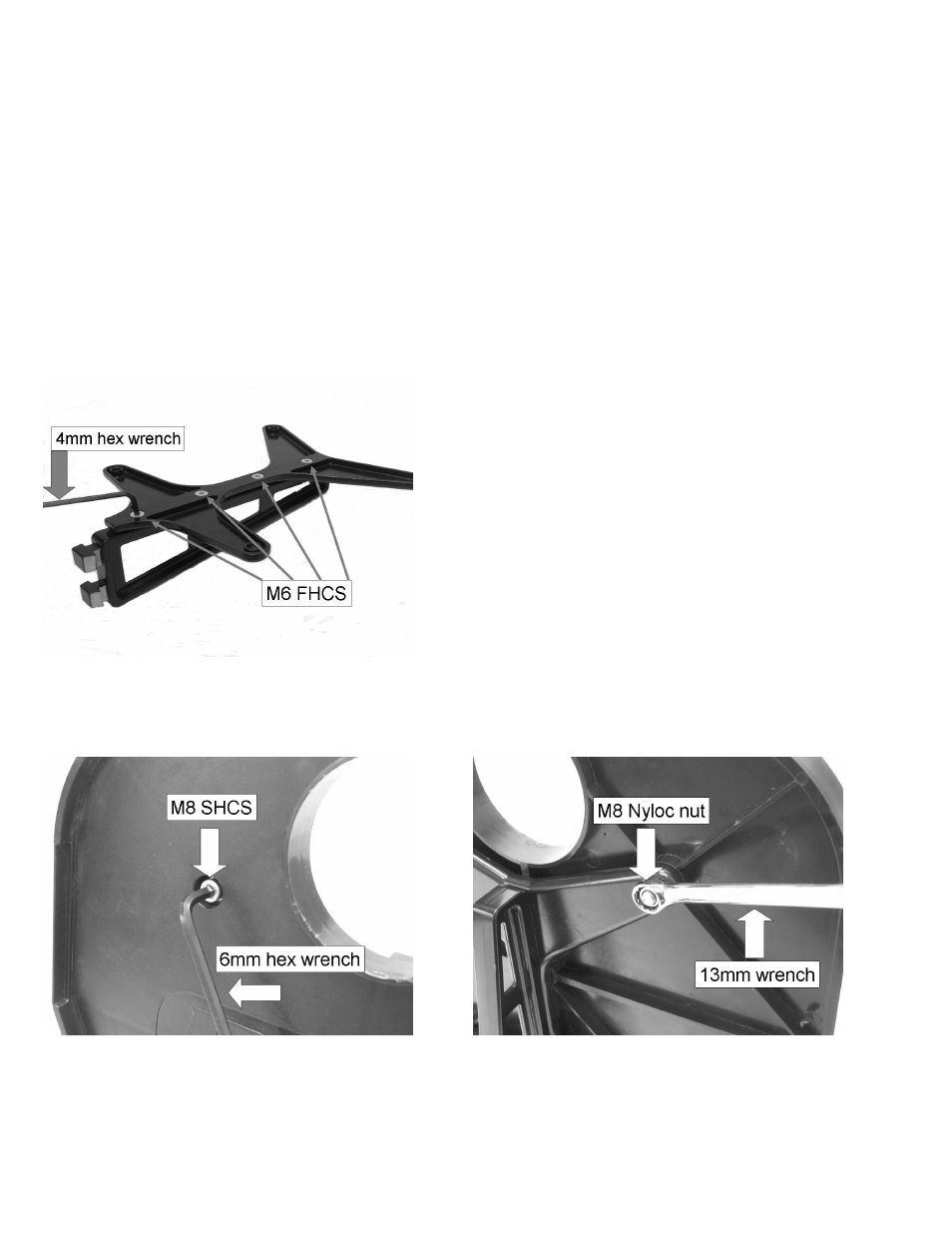

. NOTE: The shorter straight arms of the Tray Support are closest to the dovetail mount of the Tray Brace. (See Photo)
Using a 6mm hex wrench and 13mm wrench (neither included), attach the Tray Top
⑥
to the Tray Support
⑦
using the four M8
Socket Head Cap Screws
①
, Washers
③
and M8 Nyloc nuts
②
. (See Photo)
