RCBS Lube Die - Manual (Page 10)

Key Part # Description
1 87570 Hex Lock Nut 12-28
2 ✦ Lube Die Body
3 87571 Seal Ring
4 87501 Die Lock Ring 7 /
8
-14
5 87562 Lube Retainer (#1, 2 & 3)
5 87564 Lube Retainer #4
6 87556 Felt Lubricating Bushing #1
6 87557 Felt Lubricating Bushing #2
6 87558 Felt Lubricating Bushing #3
6 87559 Felt Lubricating Bushing #4
7 81015 “O” Ring Seal
8 87568 Lube Die Decapping Unit
✦ Not available separately

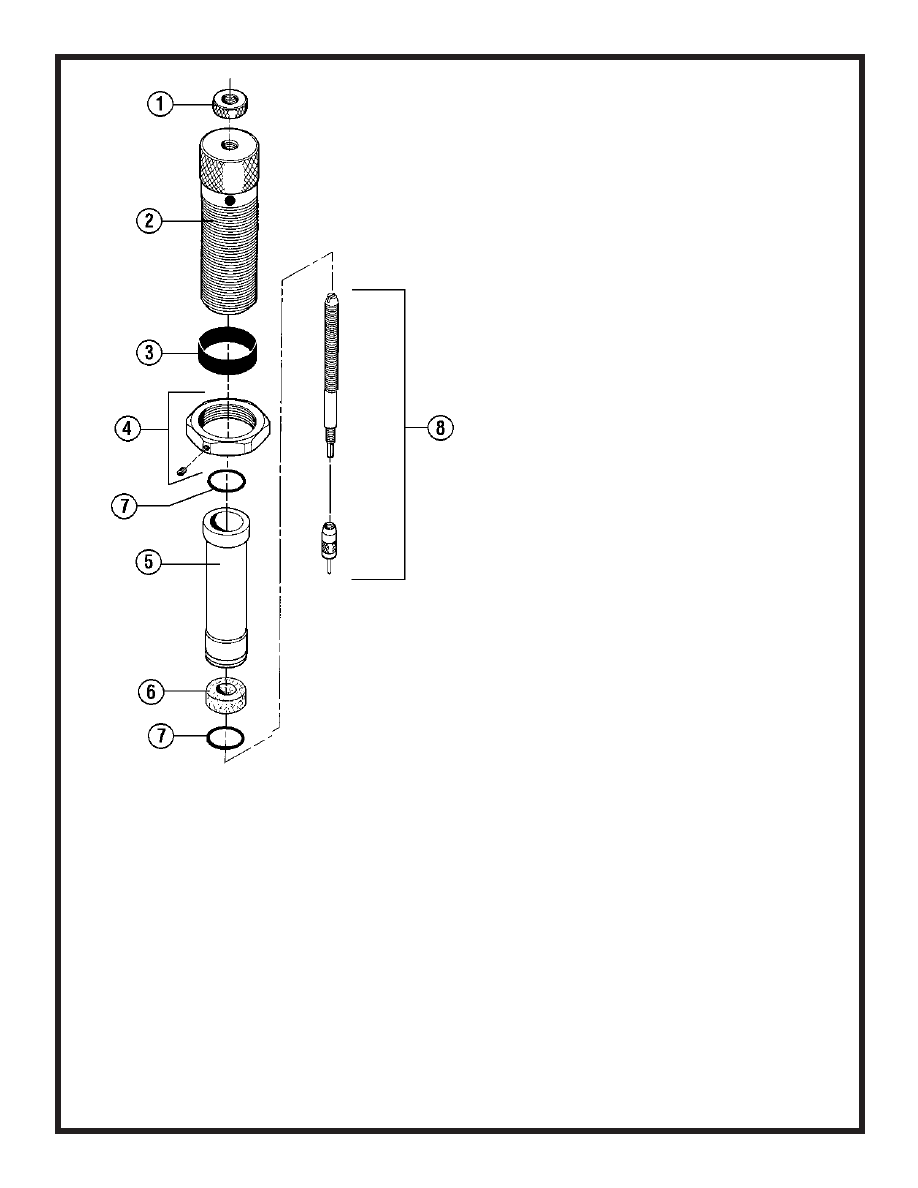

LUBE DIE PARTS LIST
