Nipros FR-P1 - Manual

For using FR-P1.
Before operating your FR-P1, please read this manual thoroughly and keep it for future reference.
■Features
・ Supports the Panasonic ENG video camera.
・ Able to be attached to either right or left pan handle of a tripod.
FR-P1
FOCUS DEMAND for Panasonic Camera
Operating
Instructions
■Specifications
Applicable Camera Panasonic Camera with φ3.5 4P FOCUS IRIS connector
CAM connector φ 3.5 4P Mini jack : for connection to Panasonic camera
HDS connector 6P : for connection to HDS-300
FOCUS switch Selects the rotating direction of FOCUS Ring
FOCUS ring Rotating direction is reversible.
IRIS knob Rotating the knob is adjusts the iris.
Input/Output
■Option
Remote control cable for HDS-300 ASC-FR1P : 6P Cable for connection to HDS-300
NOTE Features, design and specifications are subject to change without notice.
Clamp bracket, φ3.5 Mini-plug Cable, Operating Instructions
Accessories
Clamp bracket For fixing FR-P1 on the pan handle of the tripod.
Outside Dimensions approx. 73 x 73 x 82 mm (main body) （WxHxD）
Weight approx. 0.5 kg (main body), approx. 0.45 kg (clamp bracket)
Operating Temperature 0 ℃ ∼ 40 ℃
Storage Temperature -20 ℃ ∼ 60 ℃
General
42
82
73
40
63
FR-P1 main body
Clamp bracket
( 上面 )
( 下面 )

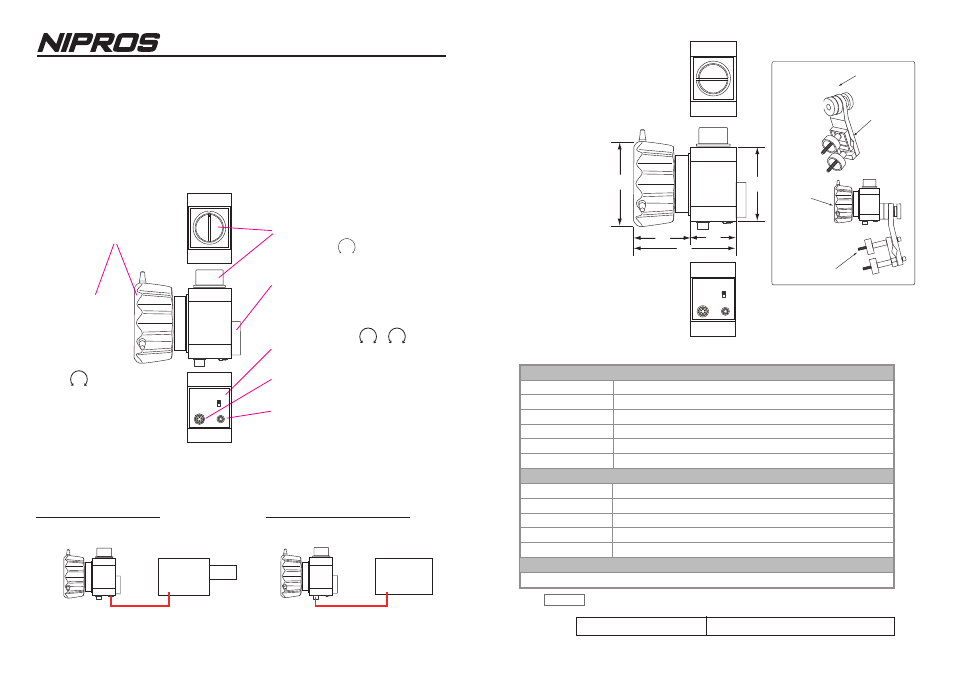

■Outsideview and Dimensions
Clamp bracket
FR-P1 main body
(top)
(bottom)
■Connection/Use
Panasonic camera
Lens
Connection to Panasonic Camera
＜φ3.5 Mini Plug Cable(supplied)＞
FOCUS IRIS
φ3.5 4P Jack
FR-P1
FOCUS Ring
IRIS FR-P1 IRIS
HDS-300
FOCUS IRIS
6P Connector
Connection to HDS-300
＜Remote Control Cable(optional)ASC-FR1P＞
■Parts Names and Functions
IRIS Knob : Rotating knob adjusts the iris.
FOCUS Ring
HDS connector(6-pin):
Connect to HDS-300.
(Connect HDS-300 to a camera.)
FOCUS IRIS connector (φ3.5 4P Mini Jack):
Connect to FOCUS IRIS
connector of a camera.
(When HDS-300 is not connected.)
FOCUS Ring
Rotating Direction
Reverse Switch
Fixture to attach the clamp bracket :
Attaches the clamp bracket that fixes
the AS-1/P on the pan handle of the tripod.
FOCUS Ring
FOCUS IRIS Jack HDS connector(6-pin)
C O
IRIS
NORMAL REVERSE
REVERSE
NORMAL
FOCUS
FOCUS IRIS HDS
NIPPON VIDEO SYSTEM CO.,LTD
MADE IN JAPAN
NORMAL REVERSE
CLOSE OPEN
TM
