INPUT RECLOCK
HD SD
IN
SDI B
IN
OUT
OUT
SDI A
OFF ON
POWER
DC IN 5∼25V▶
SDI A/SDI BのINは表
または裏の片方のみ
接続してください
from
Camera
HD-SDI
RET HD-SDI
to
Camera,
Monitor,
etc.
when connecting from
the right side.
IN 1
IN 2
OUT 1
OUT 2
OUT 1
OUT 2
IN 1
IN 2
SDI B
SDI A
Input
Output
NOTE Input the SDI signal
to only IN 1 or IN 2 either
of each SDI A and SDI B.
(DC 12 V IN)
Connect an AC adaptor.
Connect a Li-ion battery.
SDI A/SDI B Operating Indicator
LED lights up when as the following.
(left) (right)
INPUT : receiving the SDI signal
RECLOCK : RECLOCK is operating normally.
HD : receiving the HD-SDI signal.
SD : receiving the SD-SDI signal.
＊Do not connect and input
to both IN 1 and IN 2.
＊Doing so may cause that
the VHD-2200 cannot work
normally.
Operable SDI signal to reclock
HD-SDI : 1.485Gbps, 2.97Gbps
SD-SDI : 270Mbps
(with SMPTE)
DC power supply connection
SDI signal Input/Output connection
DC 12 V approx. 3 W
( DC 5 V to 25 V )
INPUT RECLOCK
HD SD
IN
SDI A
PROTECH
MADE IN JAPAN
VHD-2200
DC IN 5∼25V 3W
SDI B
IN
OUT
OUT
■Specifications
Operating Humidity
Operating Temperature
Weight
Dimensions (W H D)
Operating Instructions
Input/Output
Accessories*
Output
Power Consumption
General
DC Input
Input
Storage Temperature
Power
Input/Output
DC Output
2 2(left side and right side) HD-SDI（BNC）
2 2(outputs distribution) HD-SDI（BNC）
DC 12 V IN XLR 4-pin connector : to connect a AC adaptor*
V-shoe/DC INPUT : to connect a Li-ion battery pack*
V-shoe mount/DC OUTPUT : to install to a camera*
DC12V ( DC 5 V to 25 V ) / approx. 3 W
approx. 430 g
approx. 92 mm x 138 mm x 44 mm
-20 ℃ to +60 ℃
0 ℃ to +40 ℃
10% to 90% (no condensation)
* VHD-2200 is not attached with Li-ion battery pack, AC adapter and camera.
NOTE Features, design and specifications are subject to change without notice.

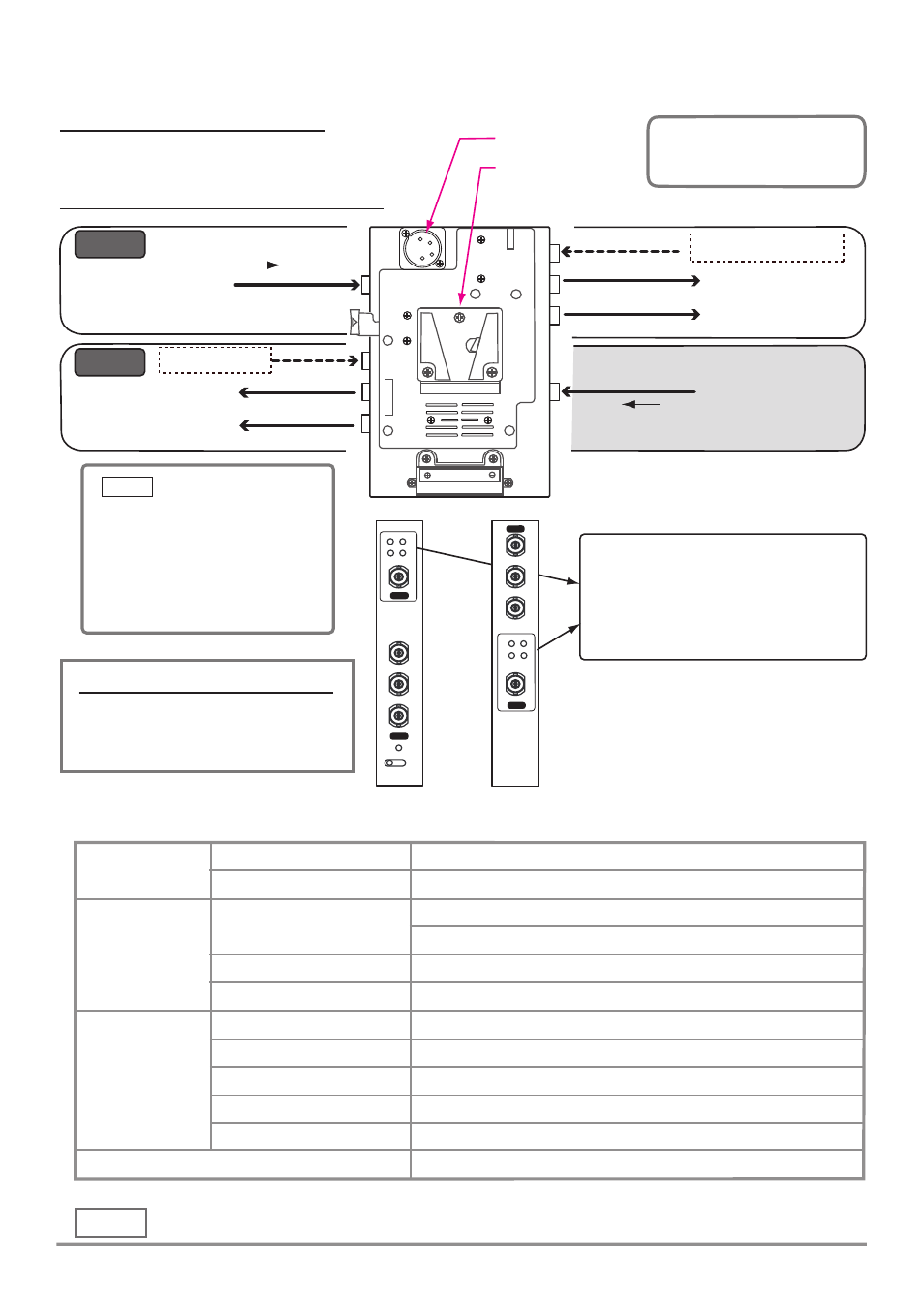

■Connection/Use
to
Switcher,
Monitor,
etc.
Output
from
Switcher,
Distributor,
etc.
Input
DC power supply :
Li-ion battery pack(to V-shoe) or
AC adaptor(to DC 12 V IN) either
can be connected.
when connecting
from the left side.
or
2
