7

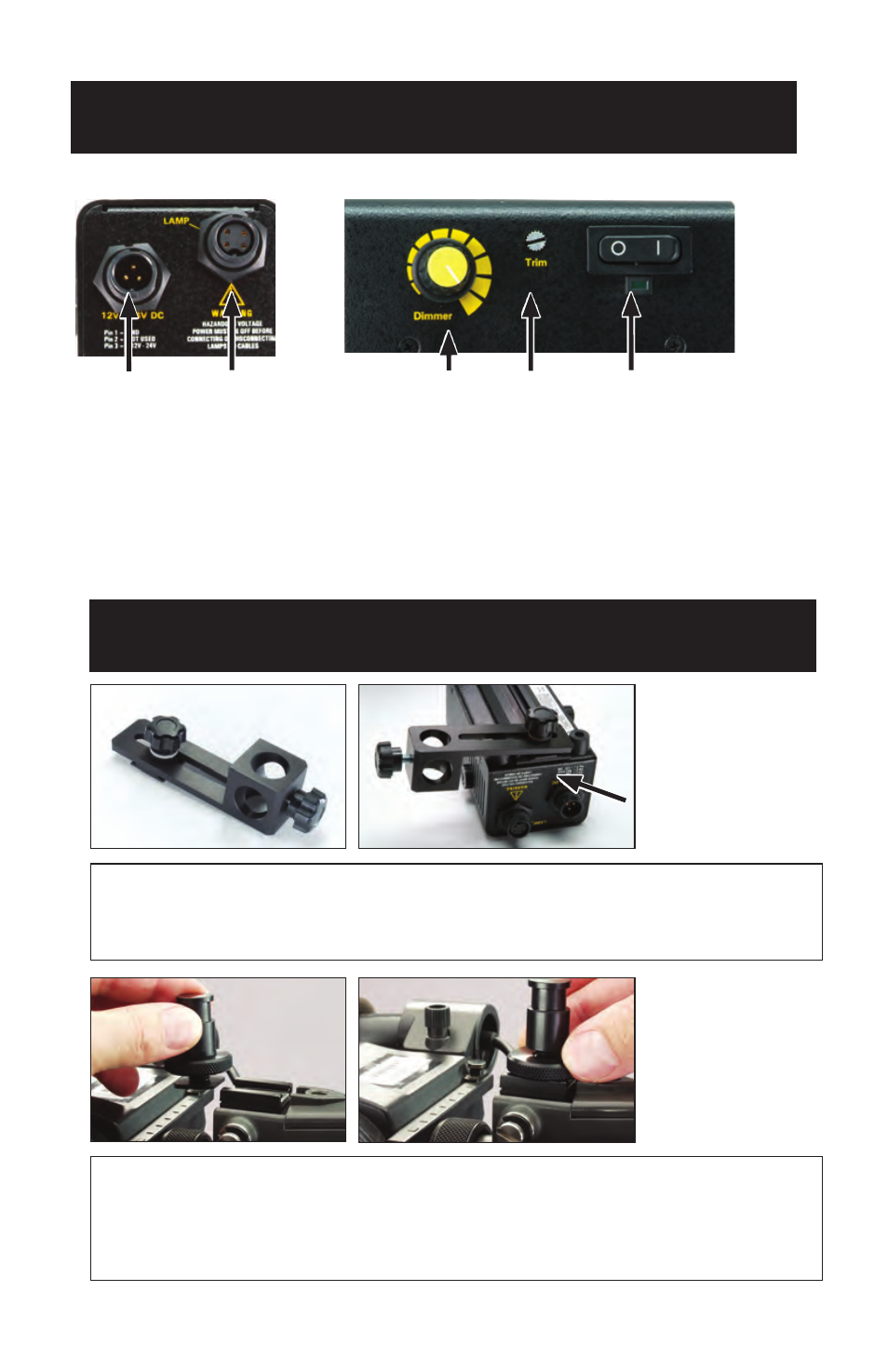

Ballast Controls
A) Power Input: Connects to 12VDC power cable (4-Pin xlr) or
24VDC cable (3-Pin xlr).
B) Lamp Output: Connects to lamp Harness cable.
C) Dimmer Control: Adjusts light level of the Lamp.
D) Trim: Adjusts the bottom end of the dimming curve.
E) Power Switch: On/off power switch. Indicator lights up green when
power is applied.
END VIEW
SIDE VIEW
A
B
C
D
E
Mounting Ballast
Mounting Bracket,
MTP-141, is required to mount the ballast to a baby pin.
Loosen thumbscrew on the
MTP-141 sufficiently to allow the flange to insert
into the track on the underside of the ballast.
MTP-141
Baby Shoe Adapter,
MTP-141S, is used to mount the Ballast to a camera
equipped with a hot shoe receptacle. Slide the flange of the
MTP-141S into
the hot shoe receptacle on the camera. Lock the pin by screwing down the
thumbscrew.
MTP-141S
