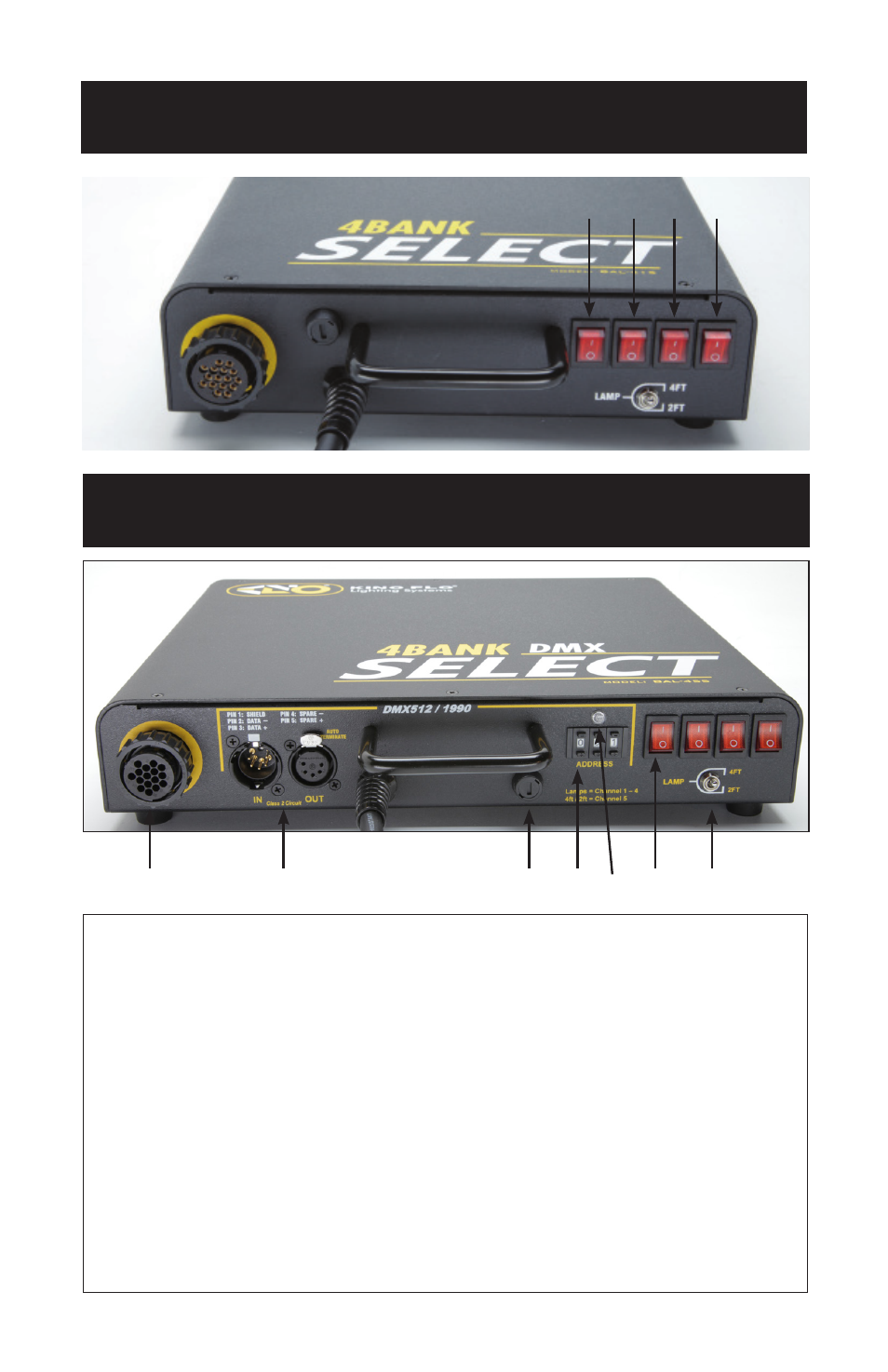

Select 4Bank Control Panel

Select/DMX 4Bank Control Panel

A) Circular Output Connector: Provides electrical power to the lamp head

with the use of a 4Bank extension cable.

B) DMX-In & DMX-Out: DMX-In receives DMX signals from Dimmer Board.

DMX-Out relays DMX signals through other Fixtures or Instruments.
(

Note: Each 4Bank DMX ballast (BAL-455 Series) has an

“

AUTO TERMINATE” feature. The last ballast that does not have an XLR

cable attached to the “Out” port will automatically terminate.)

C) Fuse: Provides circuit protection. Note: If Fuse is “blown” or “open”,

replace with same type of fuse rating as marked.

D) DMX Address: Sets DMX Address of Fixture.

(Channels 1~4 = Lamps; Channel 5 = 4ft/2ft)

E) DMX Indicator: Lights if valid DMX signal is present.

F) Manual Switches: Turns lamps on and off manually.

G) Lamp Select Switch: Set to 4ft for 4ft lamps and 2ft for 2ft lamps.

1 2 3 4

D E F
