10
DMX Operation

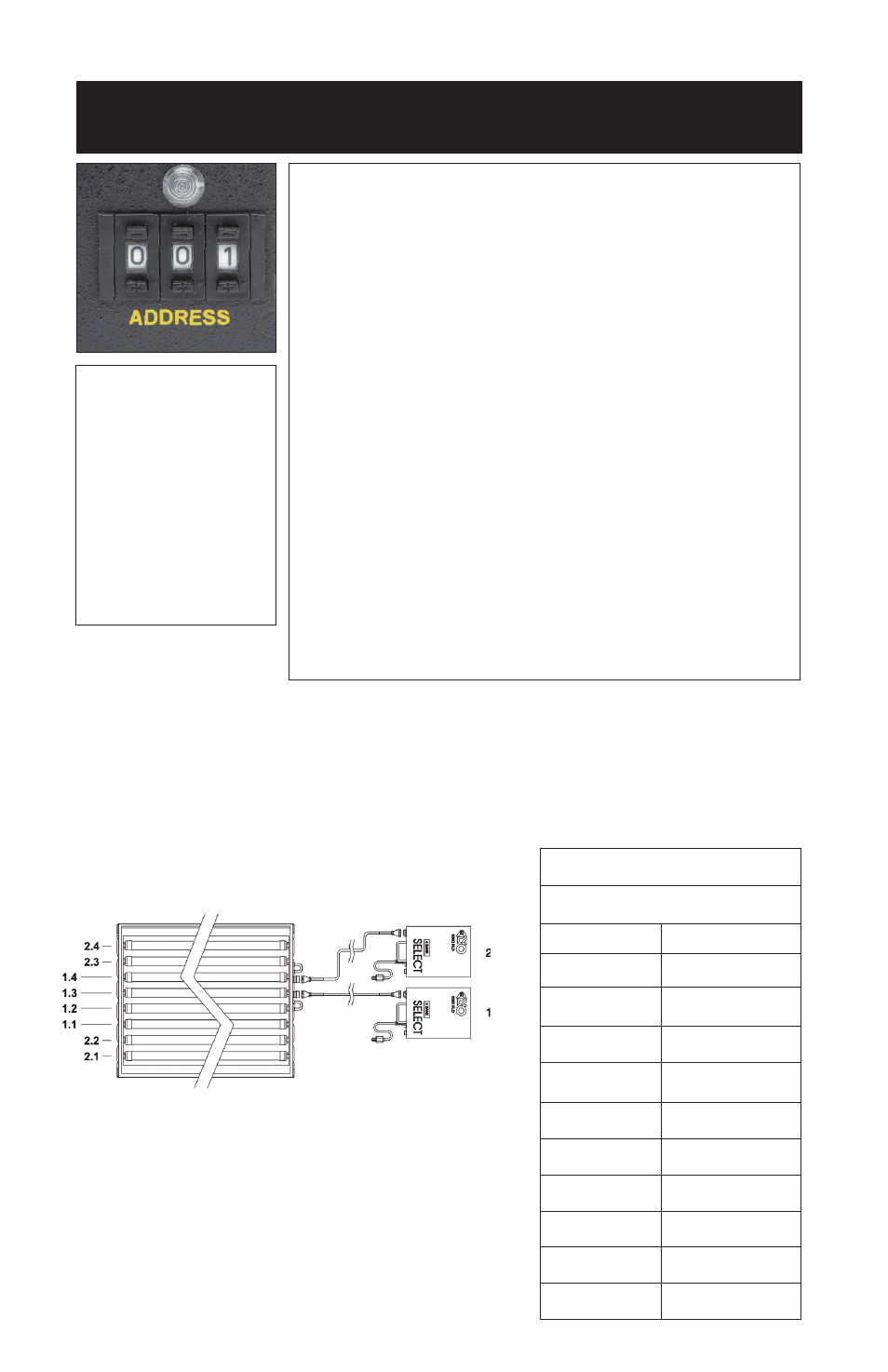

DMX Addressing
Push the tabs above or below the number window to set
the address. (Valid addresses range from 001 to 512.)
The yellow light above the address block will illuminate
if a DMX signal is present.
Each 4Bank DMX ballast operates on 5 addresses.
This is useful in achieving light effects like flickering,
chasing or creating light patterns.
After the DMX address is entered, the ballast automatically
assigns the first 4 addresses to control lamps 1-4 and the
5th address controls the 4ft/2ft setting.
The 4ft/2ft setting is defaulted to 4ft.
To activate the 2ft lamp setting on address 5, set dimmer
slider to full. Setting the dimmer value under 49% or
not programming address 5 will restore the 4ft setting.
Note: The 4ft/2ft select setting controls all 4 lamps equally.
Individual settings per lamp are not possible.
DMX Address Sequence
DMX Address = 001, 006
Lamp # DMX Address
Lamp 1.1 1
Lamp 1.2 2
Lamp 1.3 3
Lamp 1.4 4
4ft/2ft 5
Lamp 2.1 6
Lamp 2.2 7
Lamp 2.3 8
Lamp 2.4 9
4ft/2ft 10
IMPORTANT!
The dimmer board/
light console should
have its channel
set to LINEAR light
output response.
(LINEAR response
is the default setting
on most dimmer
boards.)
For example: If the 4Bank DMX base address is set at 001 for Ballast 1, and Ballast 2
is set at 006, the configuration below will provide 8 lamps individually addressable through
DMX 512.
Lamp Sequence
