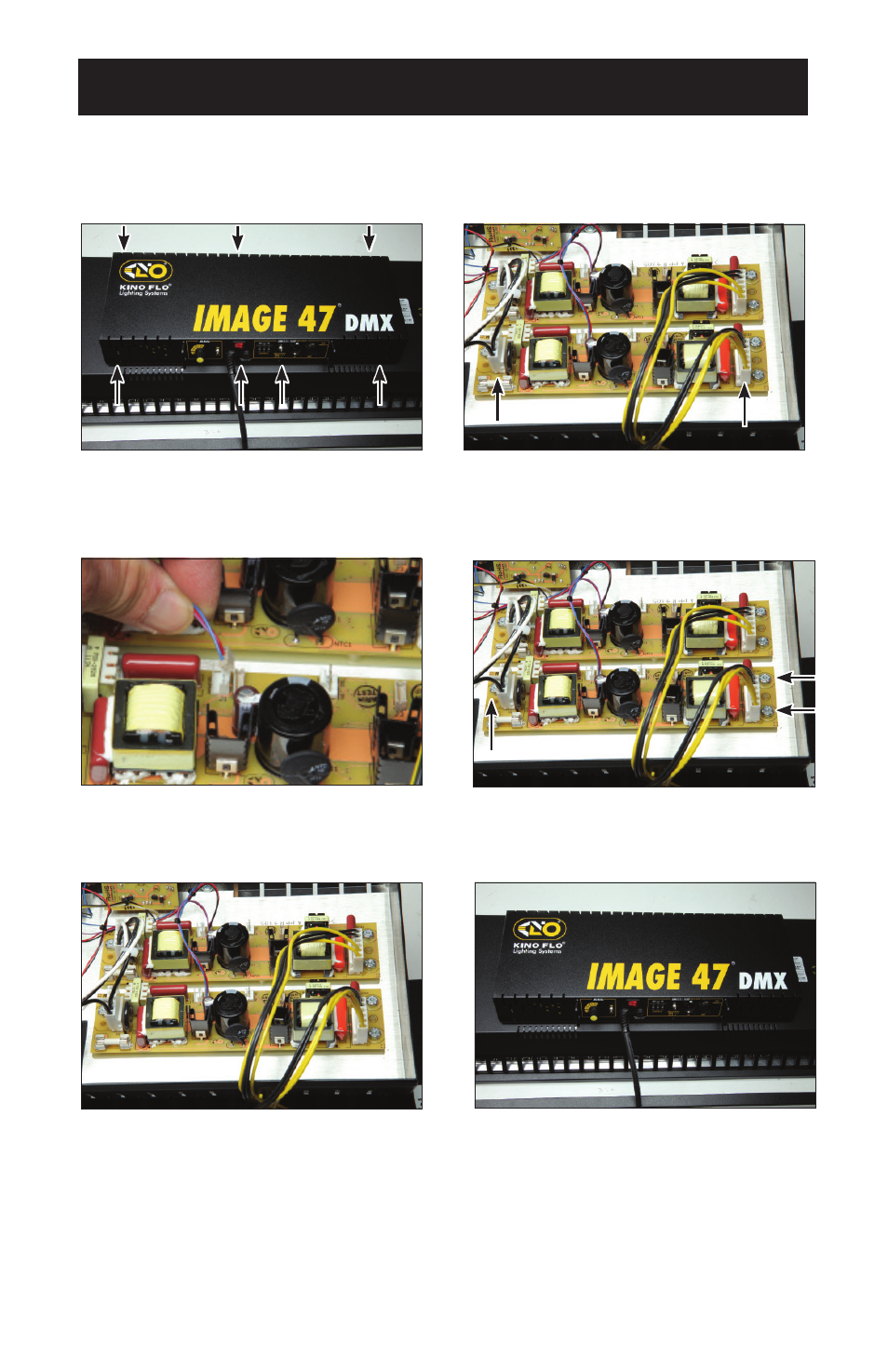

Ballast Board Removal and Installation
1) Remove seven (7) cover screws.
2) Remove AC input connector (A).
Then remove lamp output connector (B).
Image 47 used for illustration purposes only. Follow similar instructions for all
VG products.
3) Remove DMX connector.
4) Remove three (3) nuts and remove
board.
5) Install new ballast board, three (3) nuts,
lamp output and DMX connectors. Then
connect AC input connector.
3
6) Install seven (7) cover screws.
A
B
