Kino Flo VG4R Ballast Board User Manual
Page 3

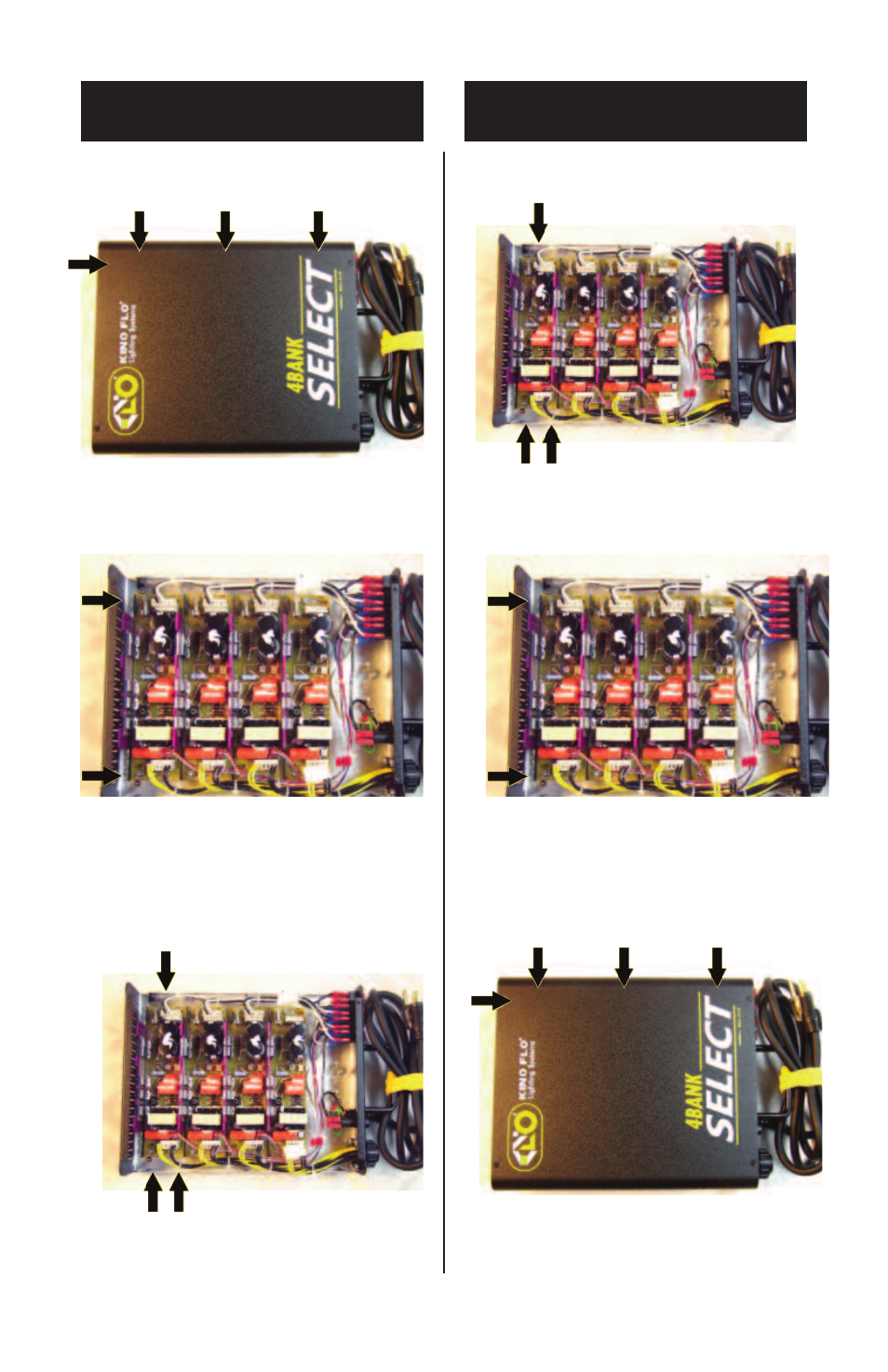

Ballast Board Removal
Ballast Board Installation
1) Remove ten (10) cover screws.
4) Install new ballast board and
three (3) nuts.
2) Remove AC input and output
connector and HO/Std connector.
5) Install AC input and output
connector and HO/Std connector.
3) Remove three (3) nuts on each
board.
6) Install ten (10) cover screws.
3
4Bank Ballast (BAL-415-120)
is shown for illustration purposes.
