8

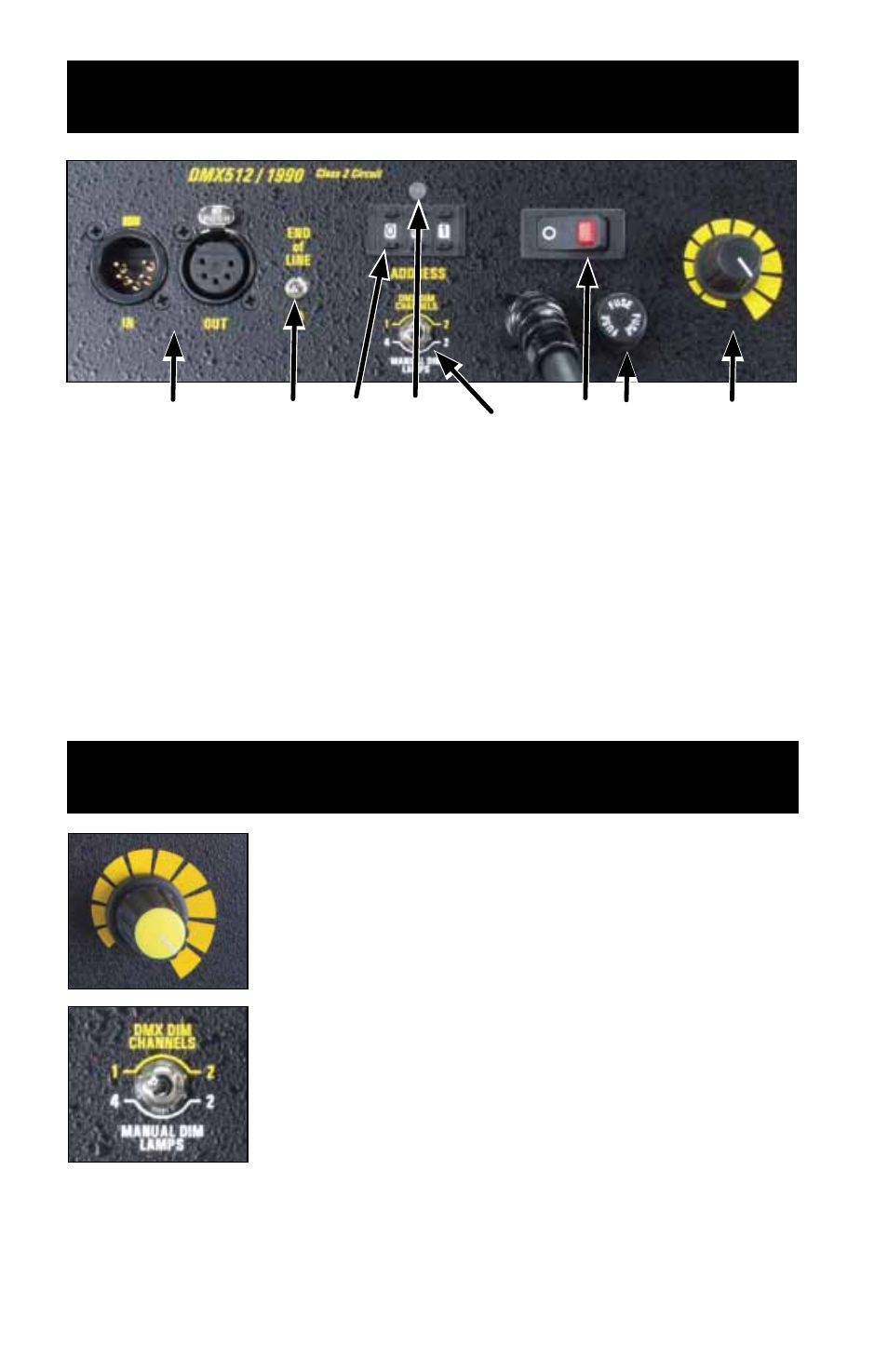

ParaZip Control Panel
A) DMX-In & DMX-Out: DMX-In receives signals from Dimmer Board. DMX-Out relays
DMX signal through other fixtures or instruments.
B) End of Line: Terminates DMX signal at the end of Fixture series.
C) DMX Address: Sets DMX address of fixture.
D) DMX Indicator: Lights if valid DMX signal is present.
E) DMX Dim Channels/Manual Dim Lamps: Sets the fixture for 2 or 4 lamp operation.
F) Power Switch: Turns fixture on and off. Has built-in indicator light to detect if AC power
is present in power cord. “O” = OFF position.
G) Fuse: Provides circuit protection. Note: If Fuse is “blown” or “open”, replace with same
type of fuse rating as marked.
H) Dimmer Knob: Manual dimming control
B C D E F G H A
Manual Operation
The onboard dimmer dial can manually dim lamps.
The MANUAL DIM LAMPS switch selects 4 or 2 lamp operation.
Select the 2 setting to turn off the outer lamps.
Note: All manual controls are disabled as soon as the DMX
cable is applied. For Manual control with DMX cables plugged in,
set address to “000”. There is a 5 second delay when switching
between DMX and Manual control.
