Kino Flo Celeb 400Q DMX LED - Manual (Page 12)

12

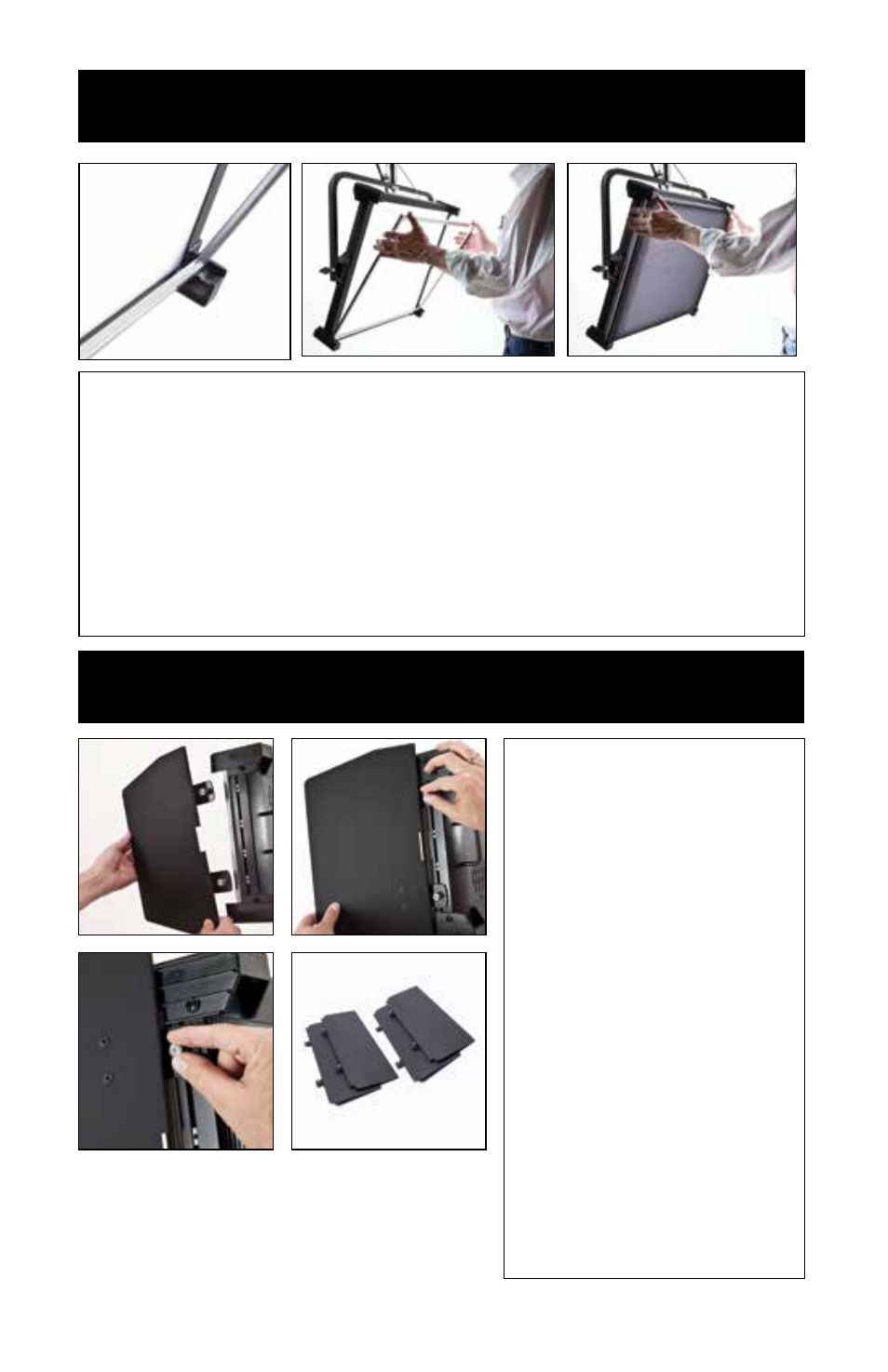

Inserting Gel Frame and Louver
The Celeb includes spring loaded accessory holders and two channels to
hold the Gel Frame and Honeycomb Louver.
Place the long edge of the Gel Frame or Honeycomb Louver into the lower
channel. Press down on the left and right corners of the Gel Frame or
Louver and slip the upper edge into the upper channel of the fixture.
To remove, reverse the procedure.
Note: Do not press down along the top center portion of the Gel Frame or
Louver. Doing so may deform the Gel Frame or Louver over repeated usage.
Inserting Barndoors
Position the barndoors
alongside the extruded
edge of the fixture. Align
the thumbscrews with the
adjustable receptacle holes
in the fixture and insert into
place. Lock the barndoors by
turning the silver thumbscrew.
To remove, reverse the
procedure.
For replacement screws,
use M5 Metric size screws.
Note: To adjust the
placement of the receptacle
holes, use a pointed tool
(such as a pen) to slide the
holes within the extruded
edge.
BRD-CE4-Q
