KN6 - KN10S
8.5 POWER CONNECTORS WIRING
8.6 AUDIO INPUT CONNECTORS WIRING
The KN6/KN10S’s amplifiers receives DC power from the 3-pin blue PowerCon
connector on their back panel. The white PowerCon connector is a parallel OUTPUT
for supplying power to other devices (max 16A supported). When AC power is
applied to the speaker, the auto-range power supply selects automatically the correct
operating voltage.

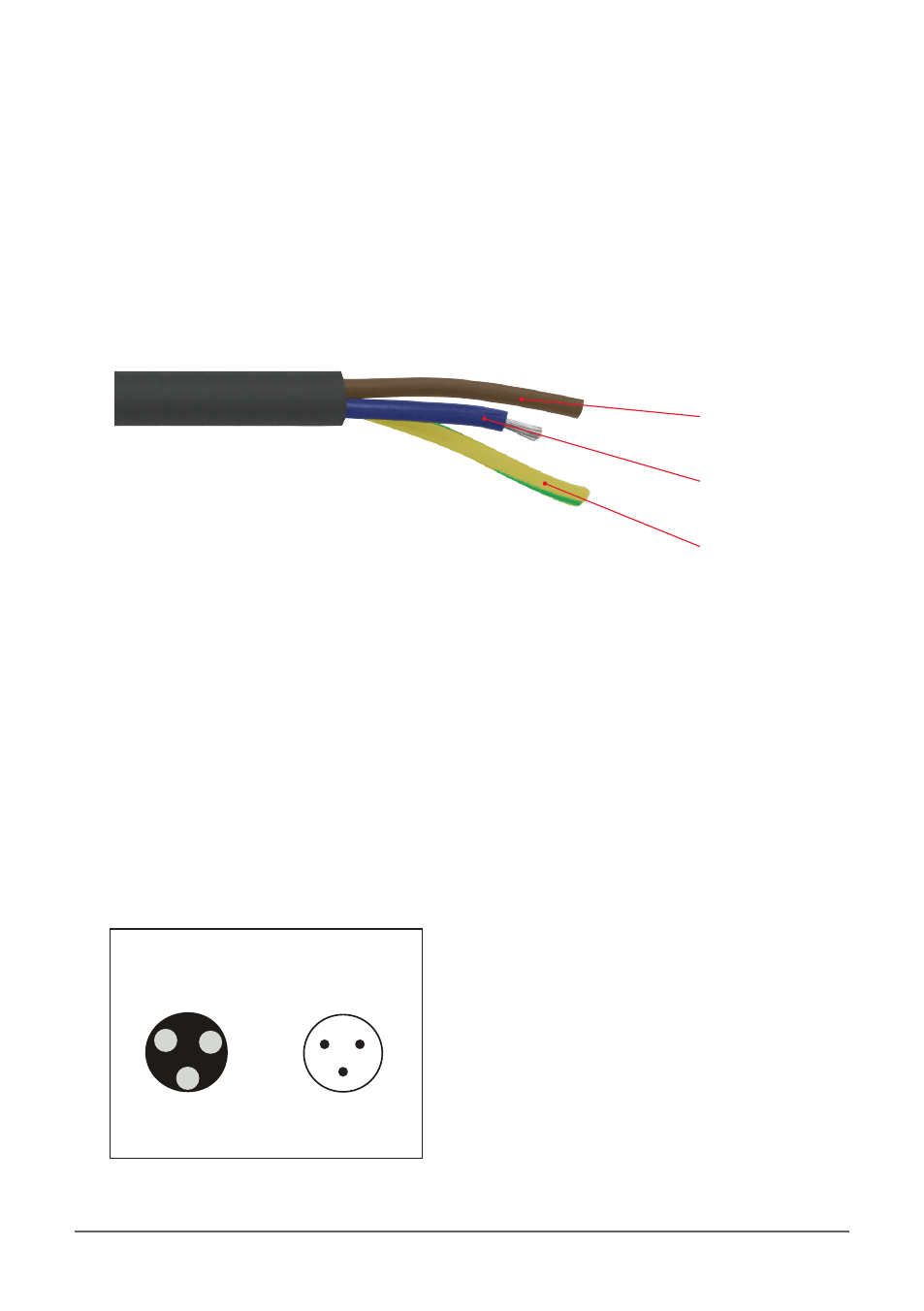

For creating your power cables, please use the following wiring diagrams:
The Audio section includes a female balanced XLR connector and a male XLR
connector wired in parallel. Thanks to these connectors it is possible to feed a
module and to send the same signal to another one through the LINK connector. It
is possible to connect till 30 different modules in parallel on the same balanced line
(with a source of 600 ohm output impedance). A Level Control potentiometer (PAD)
allows different set levels. For creating your signal cables, please use the following
wiring diagrams:
brown = hot
blue = neutral
yellow/green =
earth ground
hot
XLR connector
grd
cold
hot
grd
cold
2
1
3
2
1
3
INPUT
PARALLEL
OUTPUT
