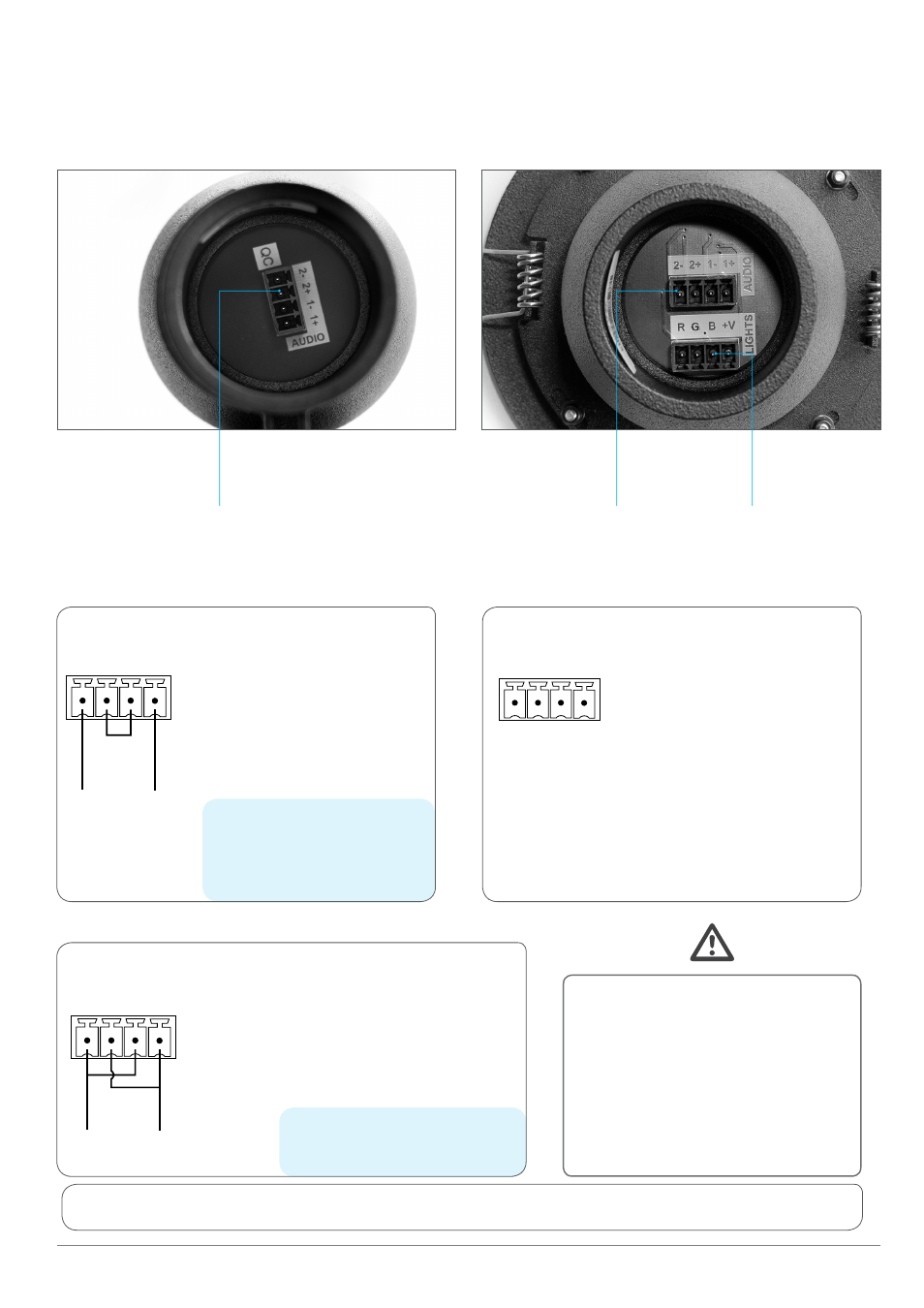

9. REaR PaNEL aND WIRING
KTL2 - KTL2C
KT2 - KT2C
1
1
2
1.
4-pin audio input connector
2- 2+ 1- 1+
-
+
AMPLIFIER
2- 2+ 1- 1+
-
+
AMPLIFIER
R G B V+
LIGHT CONTROLLER
2- 2+ 1- 1+
-
+
AMPLIFIER
2- 2+ 1- 1+
-
+
AMPLIFIER
R G B V+
LIGHT CONTROLLER
2.
4-pin light controller connector
2- 2+ 1- 1+
-
+
AMPLIFIER
2- 2+ 1- 1+
-
+
AMPLIFIER
R G B V+
LIGHT CONTROLLER
Controller Wiring
32Ω Wiring
the 32Ω configuration can be
used with a KA24, KA84,
KA7, KA7-7, KA10
or a KA10-10 amplifier
the 8Ω configuration must be
used only with
a KA1-1 amplifier
2-
to (-)pin of the Amp
2+
bridged to 1(-)
1-
bridged to 2(+)
1+
to (+)pin of the Amp
2-
/
1-
parallel to (-)pin of the Amp
2+
/
1+
parallel to (+)pin of the Amp
R
to negative DC power for
Red LED
G
to negative DC power for
Green LED
B
to negative DC power for
Blue LED
V+
Common positive DC
power (24V) for RGB LEDs
8Ω Wiring
Warning
Take care, respect the polarity
and the maximum DC voltage.
An inverted polarity or a different
voltage could damage the device
or part of its component parts.
Please note that (-) and (+) pins of the amplifier must be connected to the same output channel.
