KT2 - KT2C - KTL2 - KTL2C
REV A 14
KA1-T2H specs
Audio Input
Connectors 4-pin Phoenix connector
Wiring IN – (-) IN + (+) GRD (Ground)
Power Input
Connectors 4-pin Phoenix connector
Wiring VCC (+) GND (common)
Amplifi er
Type 1 Module Class D Electronically Processed
Nominal Power Output 32 W @ 8 Ω 1% THD + NOISE (1 )
Protections
Dynamic limiter, over current, over temperature,
short circuit power supply polarity inversion
Frequency response 20Hz – 20kHz (+/- 3 dB) for 1W @ 8 Ω
THD+N 1kHz,1 W 0,100%
DC Power
Nominal voltage 12/24 Vdc
Operating range 10 - 26 Vdc
I. Nom. 0.4 A / 24 Vdc
Notes for data
1. EIAJ Test Standard, 1KHz, 1%THD
Consumptions
Effi ciency N.A.
1/8 rated power
(pink noise)@ 8Ω
83%
Physical
Dimensions
35 mm x 40 mm x 14 mm
(1,37“ x 1,57” x 0,55 “)
Weight 40 g (0.08 lb)
D
ESIGNED AS PASSIVE SPEAKER
,
THE NEW
T
ORNADOS CAN BE EASILY CONVERTED INTO
SELF
-
POWERED DEVICES BY INSERTING THE
KA1-T2 12V/24V
AMPLIFIER MODULE
.
KA1-T2H
KTL2 KTL2C
Acoustics
Speaker power handling 18 W (AES)
Impedance 8Ω - 32Ω (settable)
Frequency range (-10 dB) 150 – 18 kHz (1)
Maximum SPL 101 dB (cont.) – 107 dB (peak) (2)
Coverage
Horizontal 90°
Vertical 90°
Crossover
Type External crossover required
Frequency 150Hz 24dB/Oct minimum required
Transducers
Full-range 2” Neodymiun magnet Woofer with 2 voice coils of 0.8”
Impedance 2 x 16 Ω
Power Audio Input
Connectors 4-pin Phoenix connector
Wiring VoiceCoil A=1+ 1- VoiceCoil B=2+ 2-
LED connections
Connectors 4-pin Phoenix connector
Wiring R=1+ ; G=1- ; B= 2+ ; V=2-
Certifi cation
IP 40
Physical
Dimensions
110 mm x 75 mm x 70 mm
(4.33“ x 2.95” x 2.76 “) 110 mm x 75 mm x 70 mm
(4.33“ x 2.95” x 2.76 “)
Weight 0.54 Kg (1.19 lb) 0.65 Kg (1.43 lb)
Notes for data
1. With Dedicated preset
2. Measured with musical signal
New materials and design are introduced into existing products without previous notice.
Present systems may differ in some respects from those presented in this sheet.

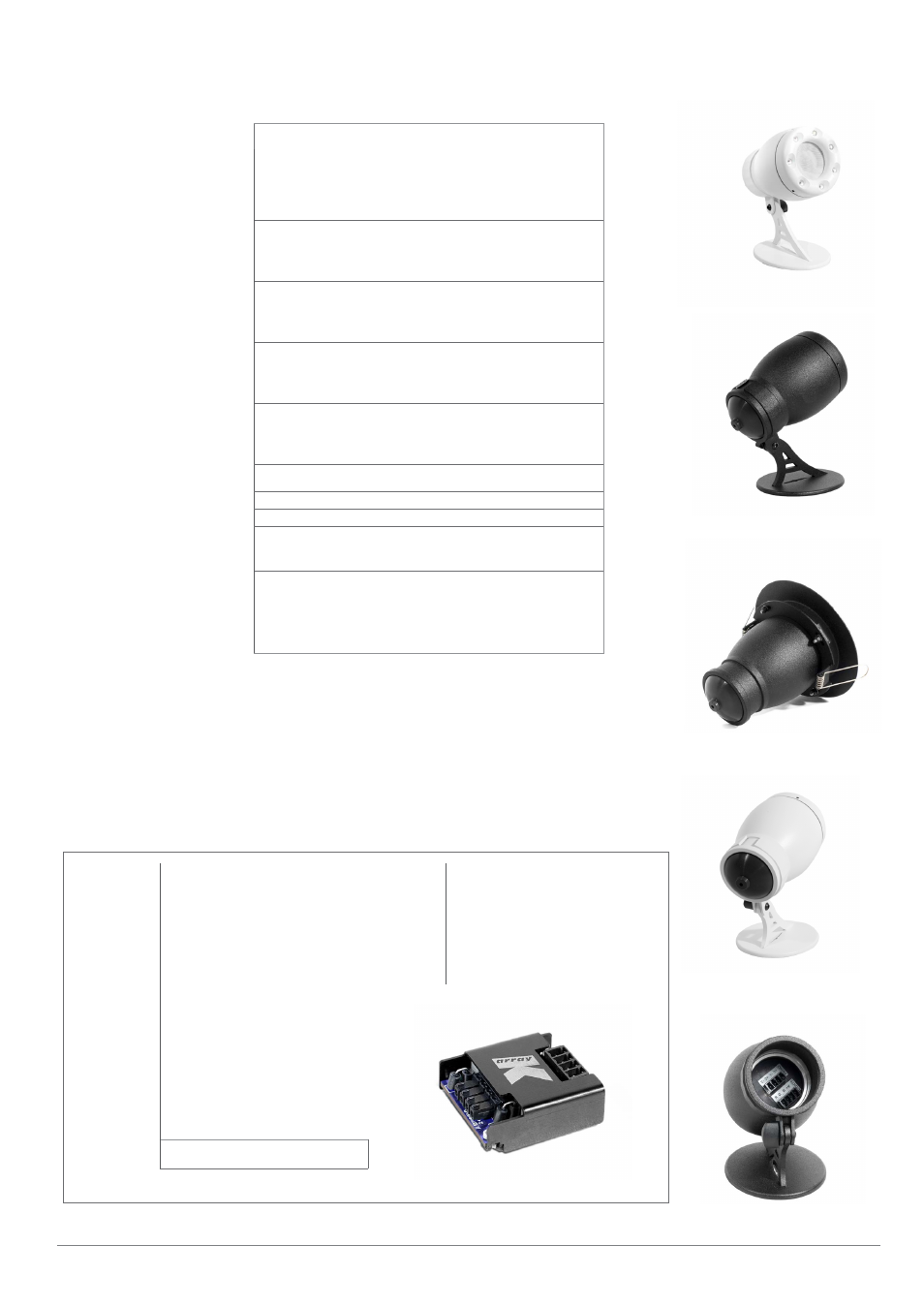

Designed as passive speaker, the new Tornados can be easily converted into
self-powered devices by inserting the KA1-T2H amplifier module.
