Your new JK Audio product has been registered with the
Federal Communications Commission (FCC). This product
complies with the standards in Part 68 of the FCC rules.
1.
Connection and use with the nationwide telephone
network
The FCC requires that you connect this telephone
equipment to the national telephone network through a
USOC RJ-11C modular telephone jack.
This equipment may not be used with Party Line Service
or Coin Telephone Lines.
This equipment is hearing aid compatible.
2.
Information for the telephone company
Upon request from your local telephone company, you
are required to provide the following information:
a) The "line" to which you will connect the telephone
equipment (that is, your telephone number), and
b) The telephone equipment's FCC registration number.
This can be found on the bottom of your telephone
equipment, and,
c) The ringer equivalence number (REN) for this equip-
ment.
The REN is used to determine the quantity of de v i c e s
which will be connected to the telephone line. Excessive
RENs on the telephone line may result in the devices
not ringing in response to an incoming call. In most, but
not all areas, the sum of the RENs should not exceed
5.0. To be certain of the number of devices that may be
connected to the line, as determined by the total RENs,
contact the local telephone company.
FCC Registration
3

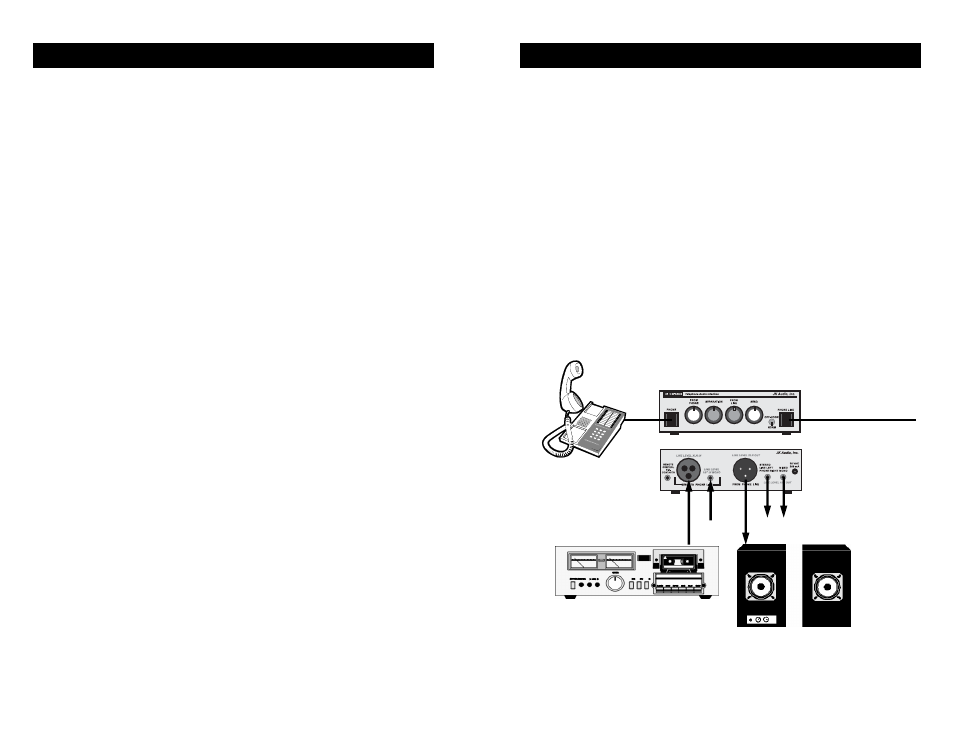

Connection
Inline Patch
To analog RJ11
Wall Jack
Audio Equipment
To send audio into
phone line
Analog Telephone
Powered Speakers or audio
equipment to receive audio
from phone line
Setup for use with residential / analog telephones:
1. Unplug the telephone cord from the base of your tele-
phone.
2. Plug that telephone cord into the jack on the Inline Patch
marked “Phone Line”.
3. Using the telephone cable we have provided, plug one
end into your Inline Patch marked ‘Phone” and the other
end of the cable into your telephone.
4. Connect your audio equipment to the 3.5mm and / or XLR
line input and output jacks on the Inline Patch.
5. Connect the power supply to the back of the Inline Patch.
