Auto-Drop Most PBX phone systems (and talk shows systems for that matter) are built on the premise that when you are done talking to one person, and you select a dif
ferent line, the
fi
rst caller automatically gets disconnected. In other words,
you have to go through an extra step to place a call on hold. While this has the distinct advantage of allowing you to get through calls quickly
, you are also more
likely to accidentally lose a call. With Concierge, you have a choice:
•
When Auto-Drop
is
ON
, calls are automatically dropped after selecting a
dif
ferent line, or using the Next and Previous buttons, unless you speci
fi cally
put a call on hold.
•
When Auto-Drop
is
OFF
, calls are automatically put on hold after selecting a
dif
ferent line, or using the Next and Previous buttons.
A
TTENTION: Auto-Drop
is
OFF
by default, it can be Enabled/Disabled by
using the DIP
switch panel (see page 9).
Aux Phone Control The use of a conventional telephone for call screening and dialing can be an important part of any system. Concierge
Aux Phone jacks provide seamless call
control, allowing the phone to become an integral part of the system. The
Aux Phone takes precedence over the hybrid, similar to picking up the
handset during a speakerphone call. Picking up the handset of a phone connected to an
Aux Phone jack during a call, will disconnect the Hybrid and
connect the
Aux phone to the phone line.
This is true in all cases except when
using an INN2 in Conference mode, when nothing will happen until one of the two phone lines is selected. The
Aux Phone will follow these basic rules:
•
If a phone connected to the
Aux jack is of
f-hook before a line select button is
pressed, the line will be connected to the phone instead of the hybrid.
•
If a call is routed to the hybrid and the phone is taken of
f-hook, the phone will
take control of the call.
•
If the
Aux Phone is not present, or on-hook, pressing a line select button will
connect that line to the hybrid.
•
If the
Aux Phone is connected to a port where no hybrid is connected, and the
phone is on-hook, pressing a line button does nothing.
•
If auxiliary phones are part of your system, they should be connected to the 1/A
or 2/B Phone Ports for proper system integration. Do not use external line
splitters to connect an
Aux phone to any other port. Do not connect an
Aux
phone directly to the innkeeper digital hybrid.
10
Concierge™ 2x6
Switch Core
Auto-Drop &
Aux Phone Control

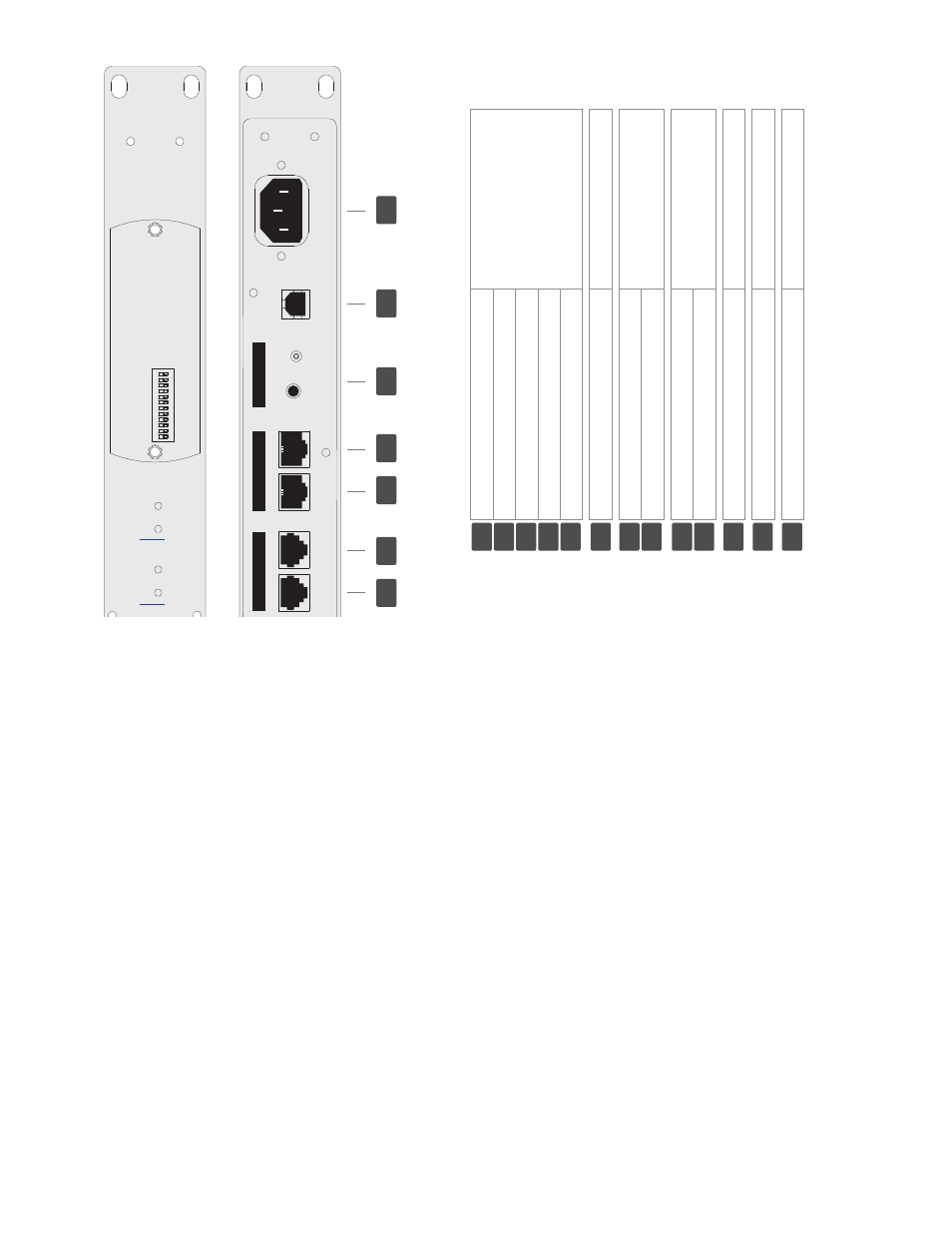

1
6 Phone Line Jacks
RJ-1
1C
2
Row-A
Phone Line to Hybrid 1
3
Row-A
Auxiliary
Phone
4
Row-B Phone Line to Hybrid 2
5
Row-B Auxiliary
Phone
6
Expansion Bus to Second Concierge
RJ-1
1C / RJ-45
fl at
cable
7
Hybrid Remote 1
RJ-50
fl at
cable
8
Hybrid Remote 2
9
Row-A
Guest Module Bus
RJ-45 CA
T5
10
Row-B Guest Module Bus
11
Hold Audio
Input
3.5 mm
12
USB Control Port
USB T
ype B
13
100-240 V
AC Input
Getting Connected
3
Getting Connected
12
12
Hybrid
GM Bus
1
2
3
4
5
6
7
8
9
10
11
12
12
12
Hybrid
GM Bus
1
2
3
4
5
6
7
8
9
10
11
12
/`IYPK9LTV[L
1
.\LZ[4VK\SLZ 1/
A
K
PV
0
UJ
/VSK(\KPV
Input
USB
10
0-
24
0 V
A
C
50
-6
0 Hz
, 2
.5 A
2/
B
Le
ve
l
2
78
9
1
0
1
1
1
2
1
3
Ports & Cable
T
ypes
