Broadcast Host™ Broadcast Field Mixer

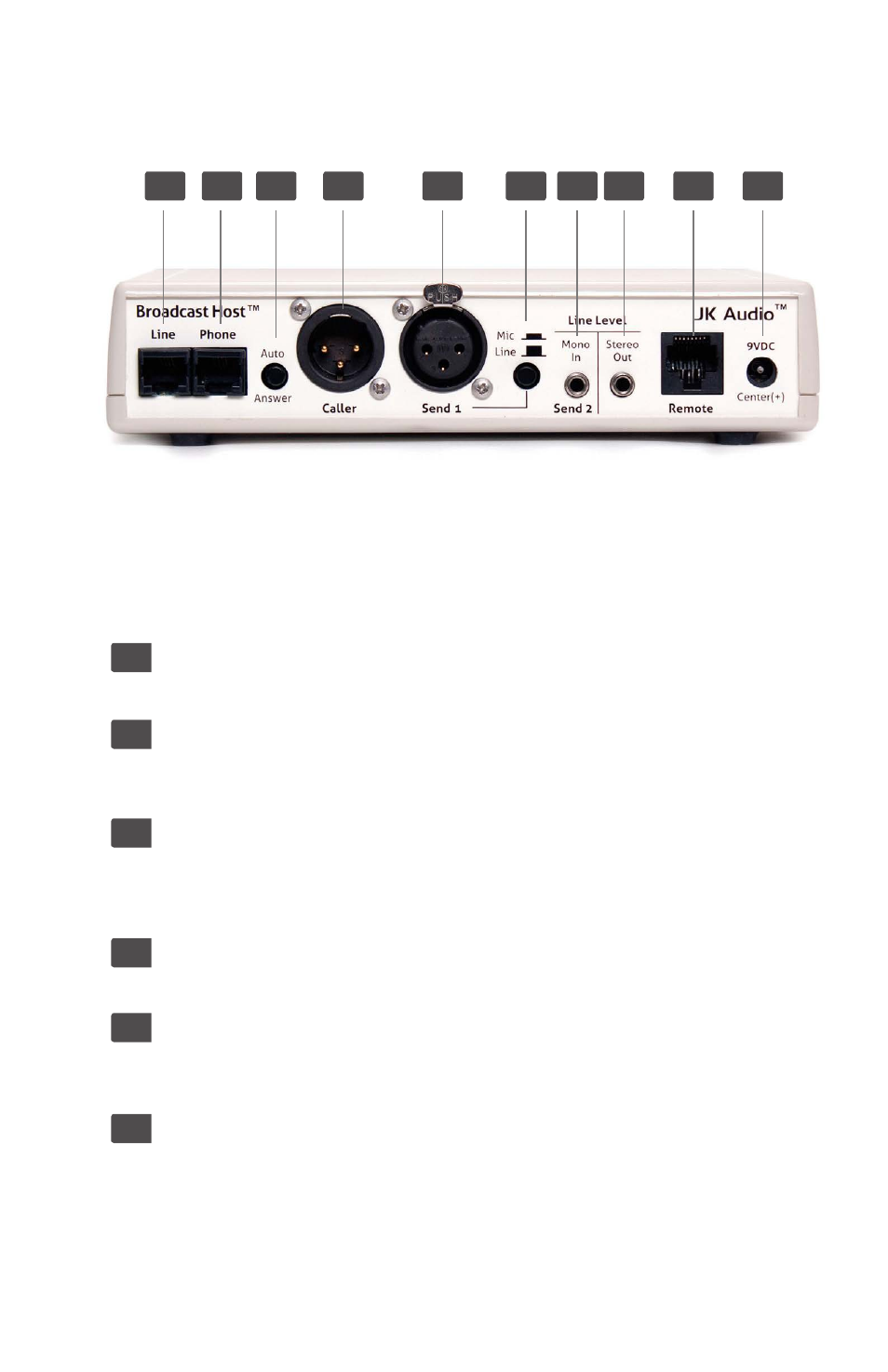

Getting to Know Your Broadcast Host
Inputs & Outputs
1. Line Jack
Connect to a standard, single line, analog telephone line.
2. Phone Jack
Connect a single line analog telephone for call setup, dialing, or call
screening. (Optional).
3. Auto-Answer
This switch enables Broadcast Host to automatically answer an incoming
call and then disconnect after the caller hangs up. Auto answer will occur on
the first ring.
4. Caller Output
Male balanced XLR output contains only the caller’s voice.
5. Send 1 Input
Female balanced XLR input for signals going out to the phone line. Mic or
line level input.
6. Mic / Line switch
7. Sets the front end sensitivity of the Send 1 XLR jack. Set to Mic if you intend
to connect a dynamic microphone directly to the Send 1 jack. Set to Line if
you are connecting to the output of a mic mixer.
3 4 5 6 10 9 7 8 1 2
