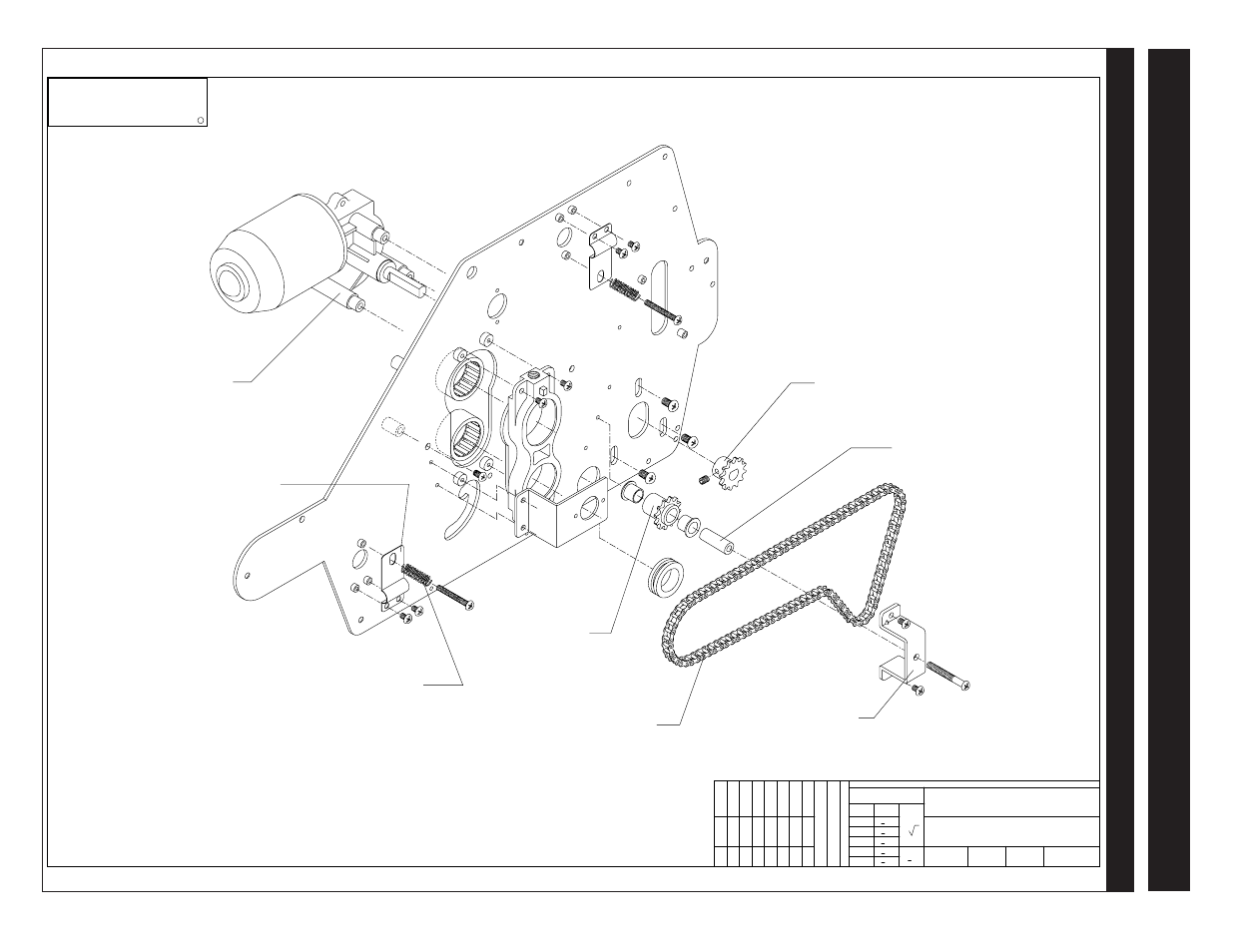

Right side assembly
Ultima 65-1
U651-004 N/A N/A 11/27/02
(1) 6090202
DC Geared motor
(2) 601230802
Film shaft support plate
(2) 701090158
Compressed coil spring
(1) 701070150
Roller chain, 50 pc
(1) 701080266
Chain gear, 12T, F12
(1) 601310504
Idler gear support
(3) 613030540
Auxiliary gear support pin
(1) 701080265
Chain gear, 12T, F10
U651-004 RIGHT SIDE ASSEMBL
Y
