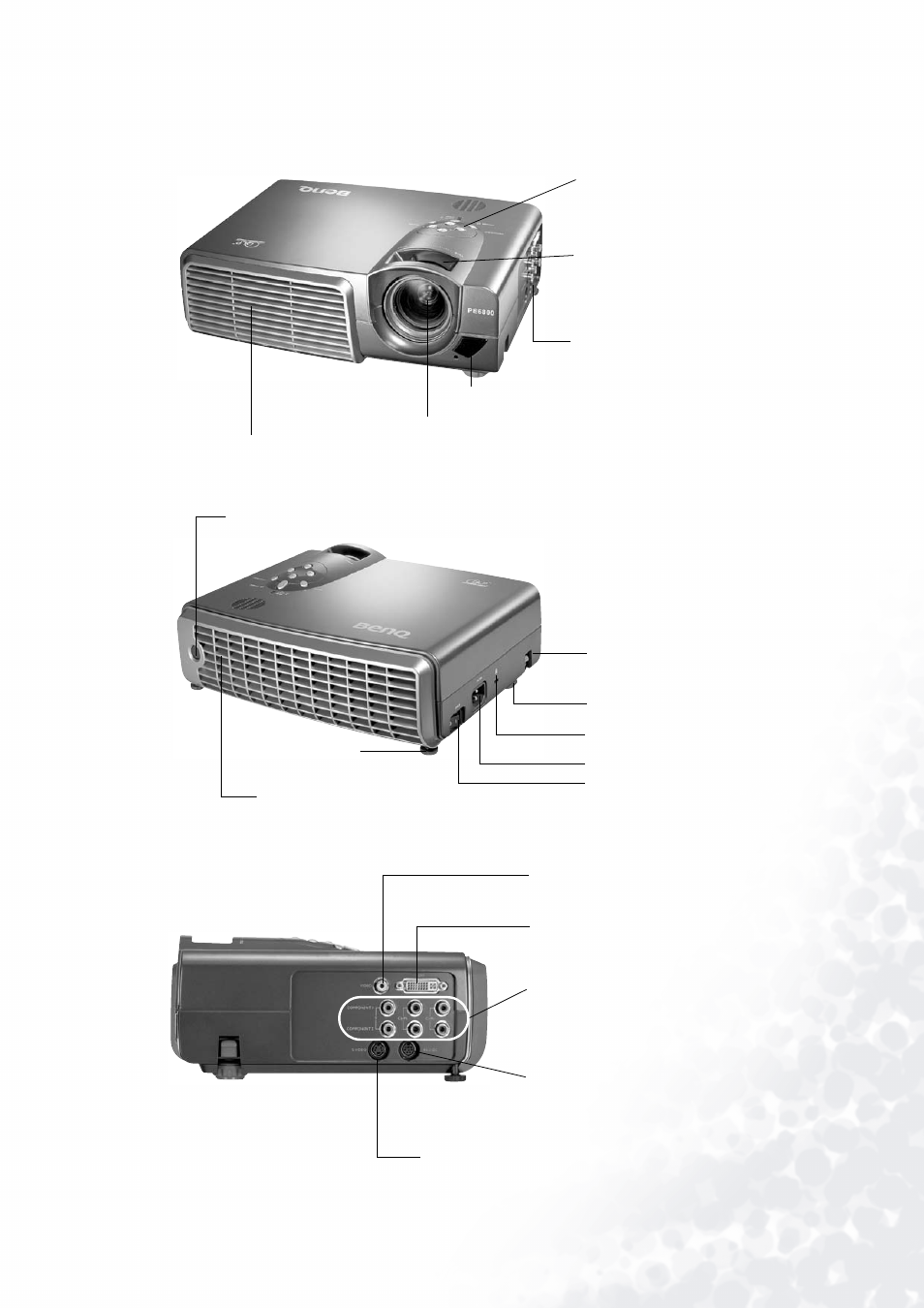

Projector Exterior View
Front / Upper Side
Rear / Left Side
Connector Panel
Projection Lens
Focus Ring and Zoom Ring
Adjusts the focus and zoom of the projection
lens.
Front IR Sensor
Ventilation Holes (intake)
Control Panel
Show lamp status and whether the projector
is on or off. For more details, see "Control
Panel" on page 12.
Connector Panel
For more details, see the description of
Connector Panel, below.
Front Adjuster button
Adjusts the height or projection angle.
Back IR Sensor
Kensingtone Lock
AC Power IN Socket
Main AC Power Switch
Ventilation Holes (Exhaust)
Front Adjuster
Rear Adjuster
VIDEO (RCA Jack)
Composite video signal input.
CONTROL (mini DIN 8-pin)
For external control systems and use by service
personnel.
DVI
RGB computer and DVI signal input
COMPONENT 1, 2
Two component inputs for connection to a DVD
player or digital TV receiver using Y/P
b
/P
b
, Y/C
b
/
C b video signal.
S-VIDEO (mini DIN 4-pin)
Y/C (S-video) signal input
