Rudder Installation
Assembly

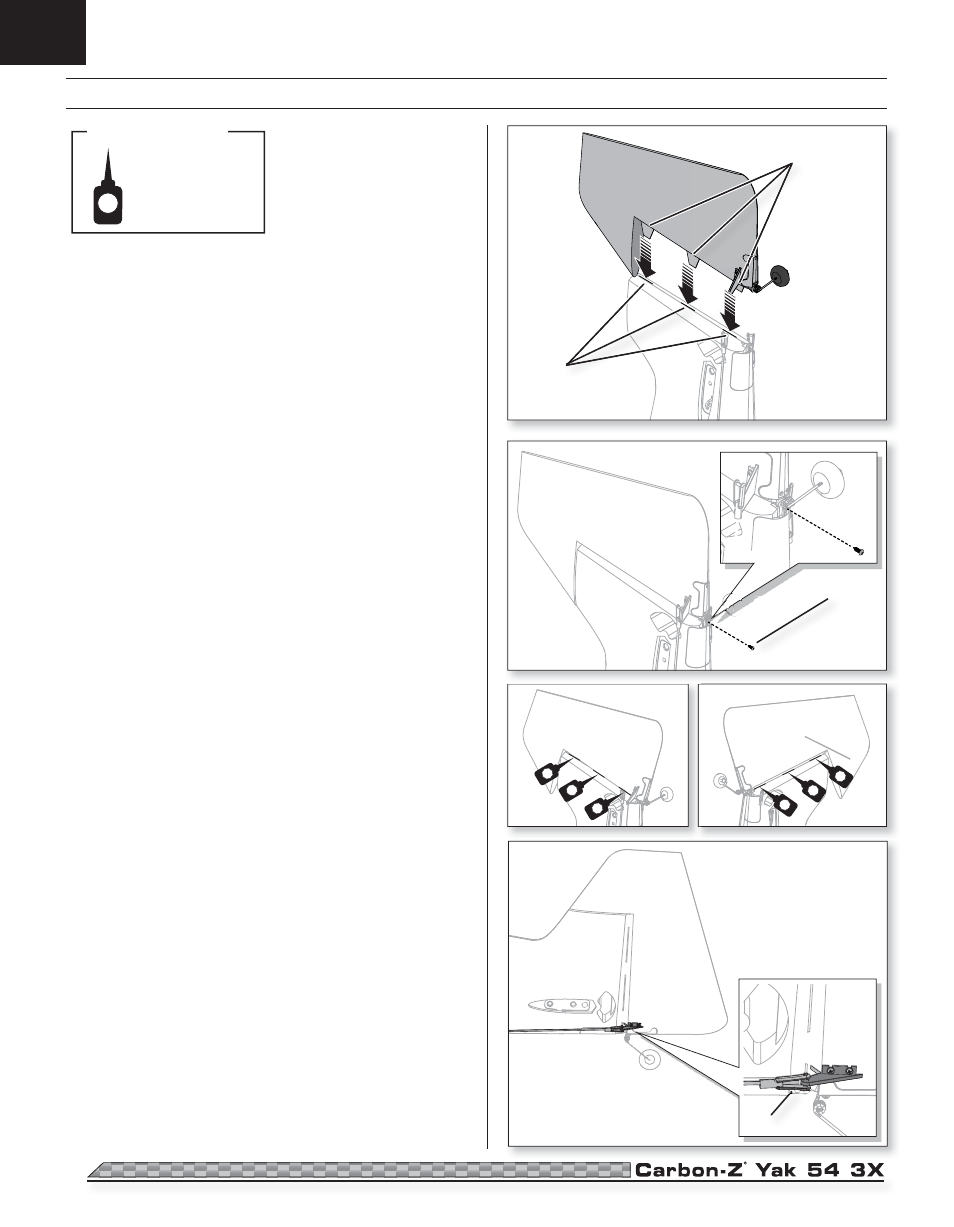

1. Slide the rudder’s CA hinges (A) in the hinge slots (B) of the vertical tail.
2. Install the screw (C) in the rudder mount.
3. Rest the aircraft on its nose, holding the tail up so the thin CA
(cyanoacrylate adhesive) will flow into the slots.
4. Bend the hinges by turning the rudder left, then carefully apply thin CA to
each hinge in the right side of each slot.
5. When the CA is dry, turn the rudder to the right and apply CA in the left
side of each slot.
6. Connect the clevis (D) to the rudder control horn. Ensure the rudder
servo arm is in the correct position, then adjust the linkage to center
the rudder.
A A
B
C C
Required Adhesives:
Thin CA
D
