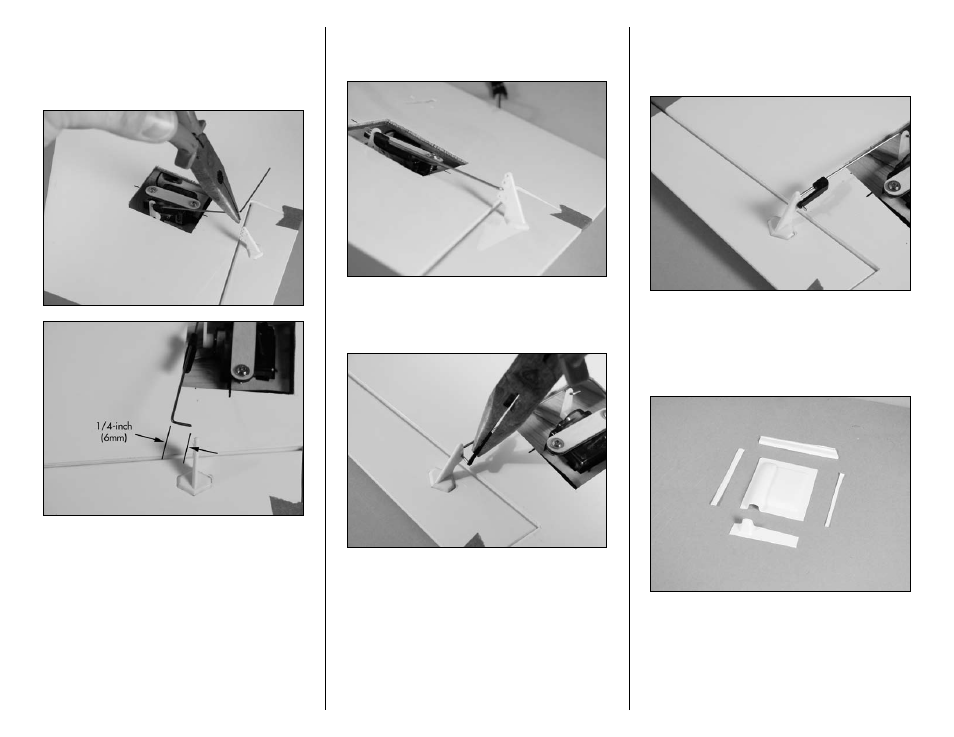

E-flite BAe Hawk ARF Assembly Manual



11. Use needle-nose pliers to bend the pushrod

wire 90 degrees at the mark made in the previous

step. After making the 90-degree bend, cut the

excess wire off of the pushrod leaving 1/4-inch

(6mm) from the bend in the pushrod.



12. Insert the bend into the hole in the aileron

control horn that is one up from the bottom of the

horn as shown.



13. Use needle-nose pliers to open the pushrod

connector wire enough that it can be fit onto the

pushrod wire.



14. Make sure the hole in the keeper fits onto

the pushrod wire. The keeper should fit close

to the control horn and not be bent when

installed correctly.



15. Use hobby scissors to trim the aileron control

horn servo cover on the lines that are molded into

it. Use medium grit sandpaper to clean up and

rough edges and to round the corners slightly on

the cover.
