E-flite Carbon-Z Cub PNP - Manual (Page 9)

EN

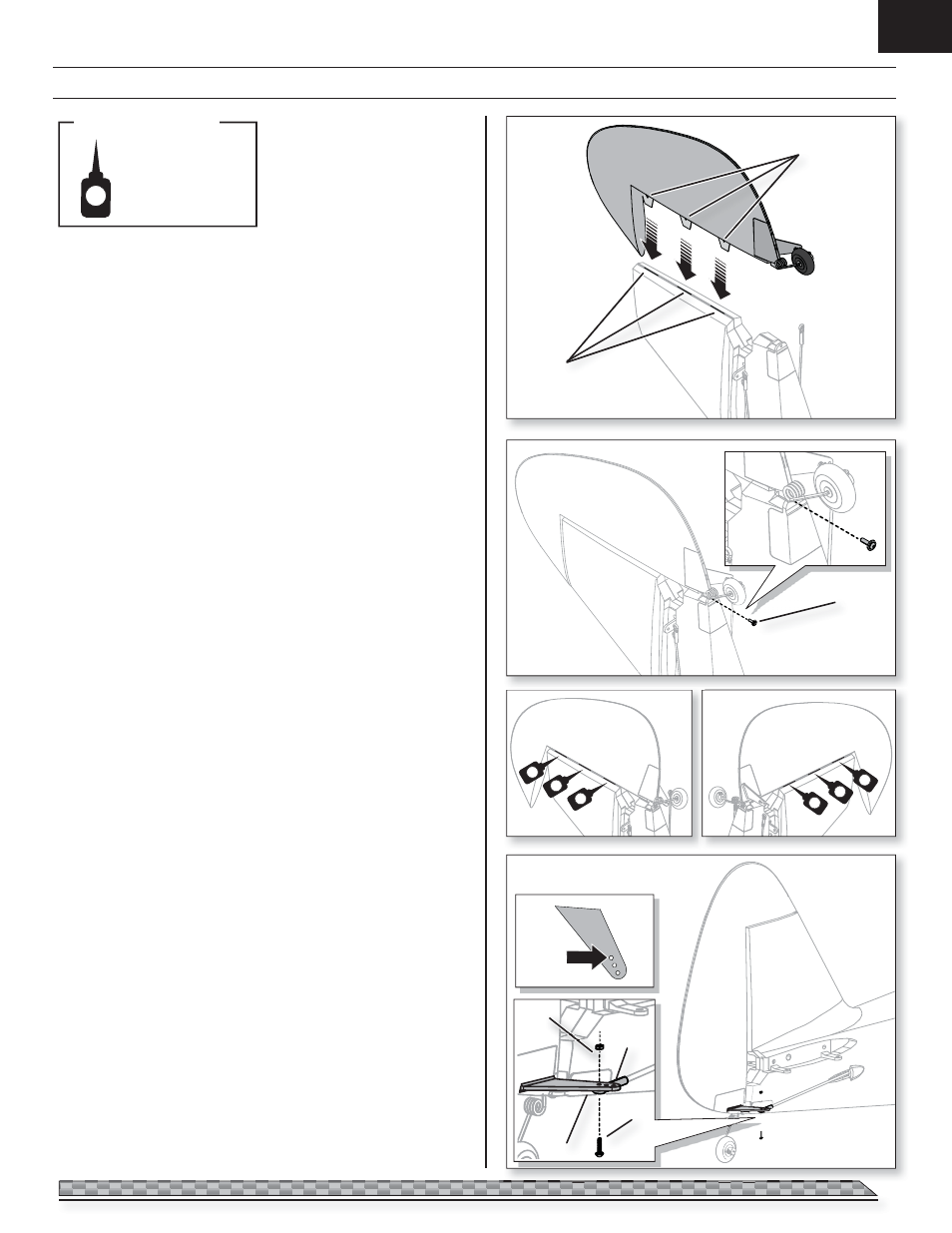

Rudder Installation
Assembly
1. Slide the rudder’s CA hinges (A) in the hinge slots (B) of the vertical tail.
2. Install the screw (C) in the rudder mount.
3. Rest the aircraft on its nose, holding the tail up so the thin CA
(cyanoacrylate adhesive) will flow into the slots.
4. Bend the hinges by turning the rudder left, then carefully apply thin CA to
each hinge in the right side of each slot.
5. When the CA is dry, turn the rudder to the right and apply CA in the left
side of each slot.
6. Connect the ball link (D) to the rudder control horn’s outermost
hole (E) using a screw (F) and nut (G). Ensure the rudder servo arm
is in the correct position, then adjust the ball link on the linkage to
center the rudder.
A A
B
C C
Required Adhesives:
Thin CA
D
E
F
G
F
9
