ES-CSM-61-T
Series CSM-61-T
Flow Measurement Valves
Sizes: 1 ⁄
2
" – 3"

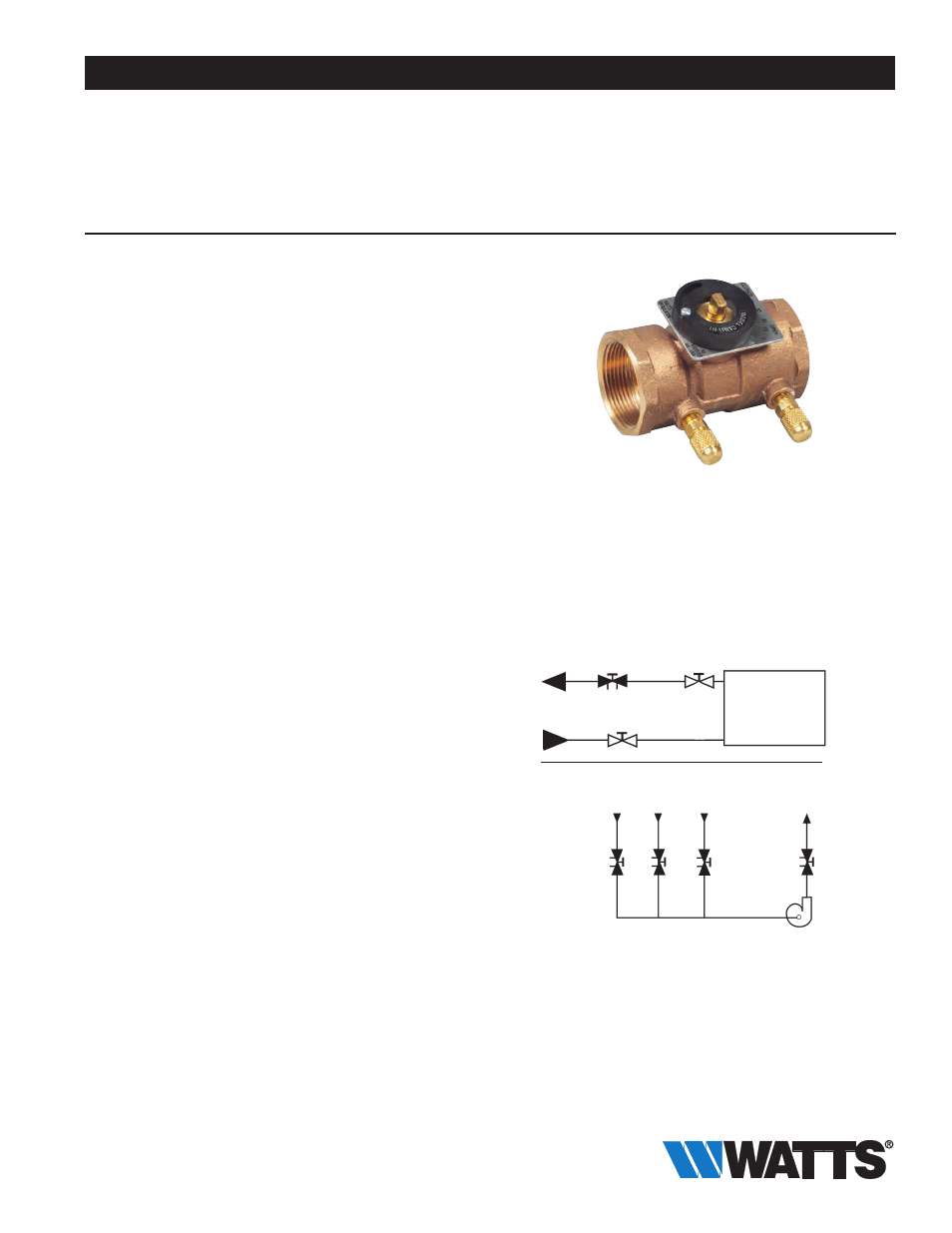

Series CSM-61-T Flow Measurement Valves are designed for appli-
cation on low or medium flow rate HVAC units recirculation system.
Their compact size allows for easy installation and use in crowded
piping compartments. The CSM-61-T’s ball-type design, extended
throttling range, and large indicator plate, make for accurate flow
measurement, even in very low flow ranges.
The LFCSM-61-T's positive memory feature is easy to see, access,
and operate, facilitating system balancing and flow measurement.
These valves are also bi-directional, so there is no chance of
installing the valve in the incorrect flow direction.
Series LFCSM-61-T valves provide positive shutoff, eliminating the
need for a separate service valve. These valves are also provided
with blowout resistant stems.
Features
• Flow measurement
• Easy to use memory
• Bi-directional flow
• Positive shutoff
• Safe “blowout” resistant
• Integral drain port
Applications
• Fan coil units
• Water source heat pumps
• Reheat coils
• Panel coils
• Small branch lines
• Unit heaters
• Unit ventilators
• Finned radiation
• Small domestic hot water lines
• Convectors
• Small pumps
CSM-61-T
Job Name ––––––––––––––––––––––––––––––––––––––––––– Contractor ––––––––––––––––––––––––––––––––––––––––––––
Job Location ––––––––––––––––––––––––––––––––––––––––– Approval –––––––––––––––––––––––––––––––––––––––––––––
Engineer ––––––––––––––––––––––––––––––––––––––––––––– Contractor’s P.O. No. ––––––––––––––––––––––––––––––––––
Approval ––––––––––––––––––––––––––––––––––––––––––––– Representative ––––––––––––––––––––––––––––––––––––––––
Watts product specifications in U.S. customary units and metric are approximate and are provided for reference only. For precise measurements,
please contact Watts Technical Service. Watts reserves the right to change or modify product design, construction, specifications, or materials with-
out prior notice and without incurring any obligation to make such changes and modifications on Watts products previously or subsequently sold.
Fan Coil Unit
Pump and Branches
Typical Installation
Fan
Coil
Unit
Series CSM-61-T
Series CSM-61-T Series CSM-61-T Series CSM-61-T Series CSM-61-T
For Balancing and Flow Meaurement Applications
