5. Turn the knob from the MAX position to the MIN

position quickly or open and shut the oven door,

making sure that the burner is not extinguished.

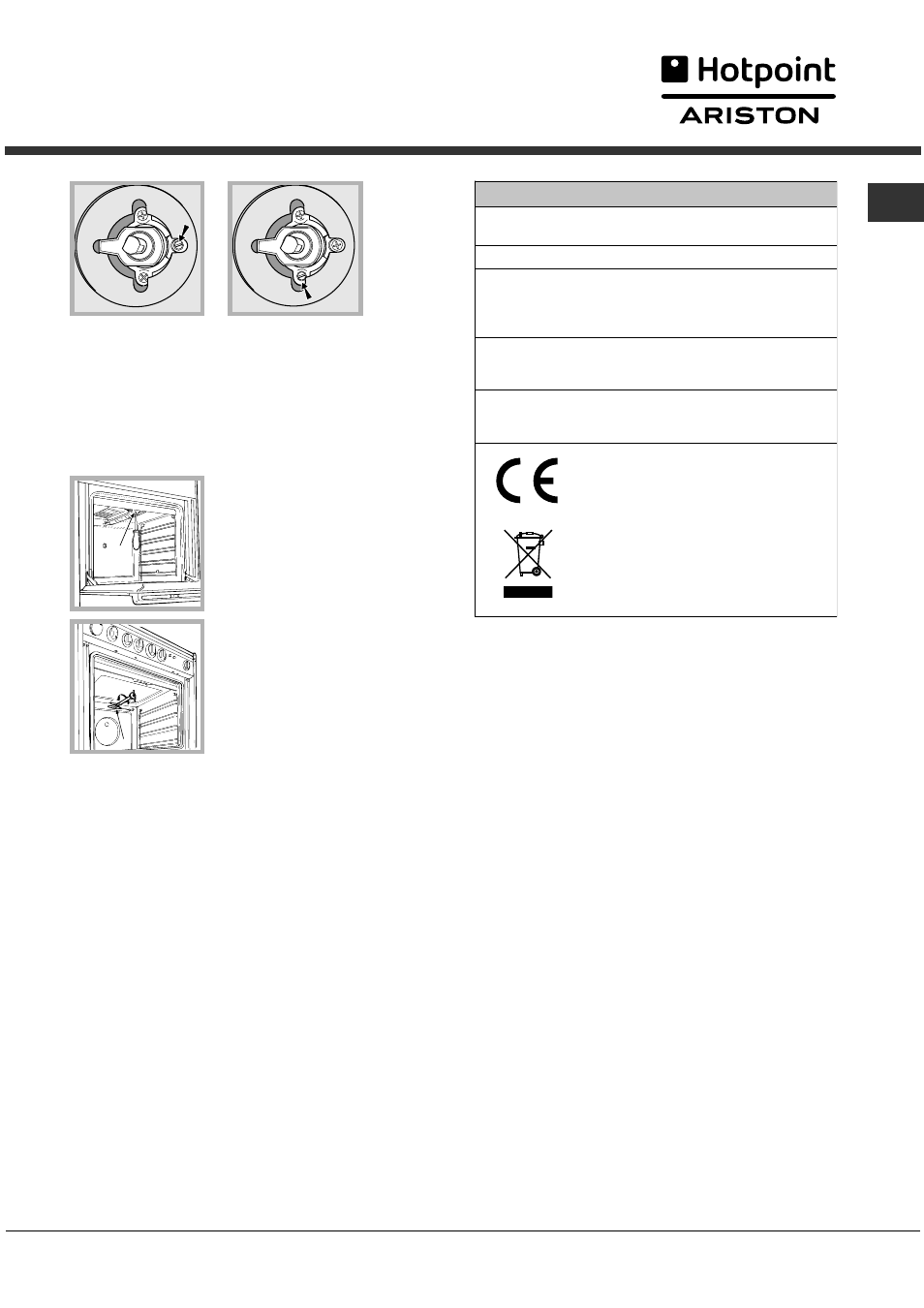

Adapting the grill

Replacing the grill burner nozzle:

1. Remove the oven burner

after loosening screw V (see

figure).

2. Unscrew the grill burner nozzle

using a special nozzle socket

spanner (see figure) or preferably

with a 7 mm socket spanner, and

replace it with a new nozzle that

is suited to the new type of gas

(see Burner and nozzle

specifications table).

! Be careful of the spark plug wires and the

thermocouple tubes.

! The oven and grill burners do not require primary air

adjustment.

! After adjusting the appliance so it may be used with

a different type of gas, replace the old rating label

with a new one that corresponds to the new type of

gas (these labels are available from Authorised

Technical Assistance Centres).

! Should the gas pressure used be different (or vary

slightly) from the recommended pressure, a suitable

pressure regulator must be fitted to the inlet hose in

accordance with current national regulations relating

to regulators for channelled gas.

TECHNICAL DATA

Oven Dimensions

HxWxD

31x43,5x43,5 cm

Volume

58 l

Useful

measurements

relating to the

oven compartment

width 46 cm

depth 42 cm

height 8,5 cm

Voltage and

frequency

see data plate

Burners

may be adapted for use with any

type of gas shown on the data

plate.
EC Directives 73/23/EEC dated

19/02/73 (Low Voltage) and

subsequent amendments -

89/336/EEC dated 03/05/89

(Electromagnetic Compatibility)

and subsequent amendments -

90/369/EEC dated 29/06/90 (Gas)

and subsequent amendments -

90/68/EEC dated 22/07/93 and

subsequent amendments. -

2002/96/EEC.
