Billion Electric Company BiPAC 7402G - Manual (Page 14)

802.11g ADSL2+ VPN Firewall Router
Chapter 3: Basic Installation
13
Configuring PCs in Windows in Window XP
1. Go to Start / Control Panel (in Classic View). In the Control
Panel, double-click Network Connections.
2. Double-click Local Area Connection. (See Figure 3.1)
3.
In the LAN Area Connection Status window, click
Properties
. (See Figure 3.2)
4.
Select Internet Protocol (TCP/IP) and click Properties.
(See Figure 3.3)
5.
Select the Obtain an IP address automatically and Obtain
DNS server address automatically
radio buttons. (See
Figure 3.4 )
6.
Click OK to finish the configuration.

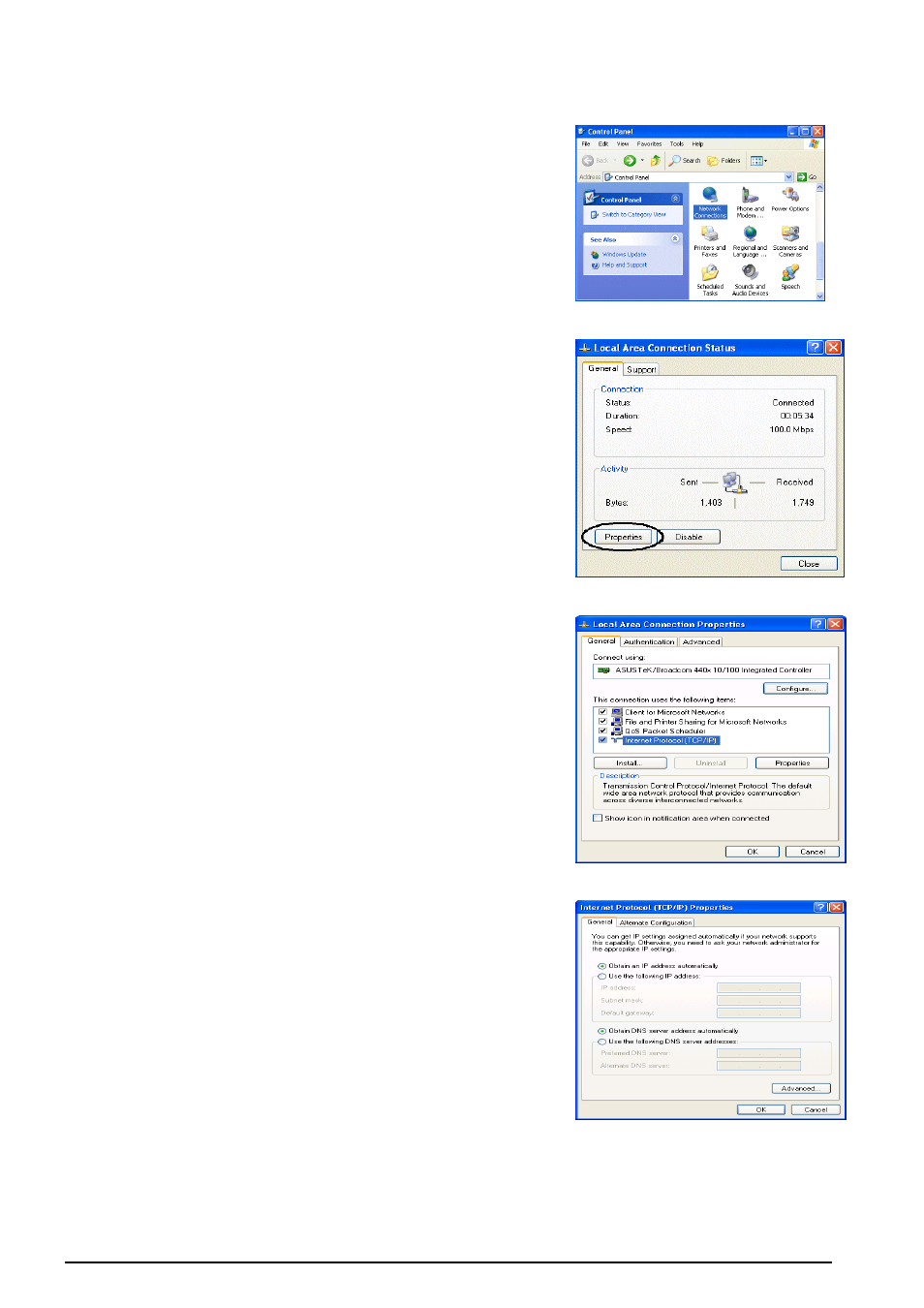

Figure 3.1: LAN Area Connection
Figure 3.2: LAN Connection Status
Figure 3.3: TCP / IP
Figure 3.4: IP Address & DNS
Configuration
