802.11g ADSL2+ VPN Firewall Router
Chapter 2: Installing the router

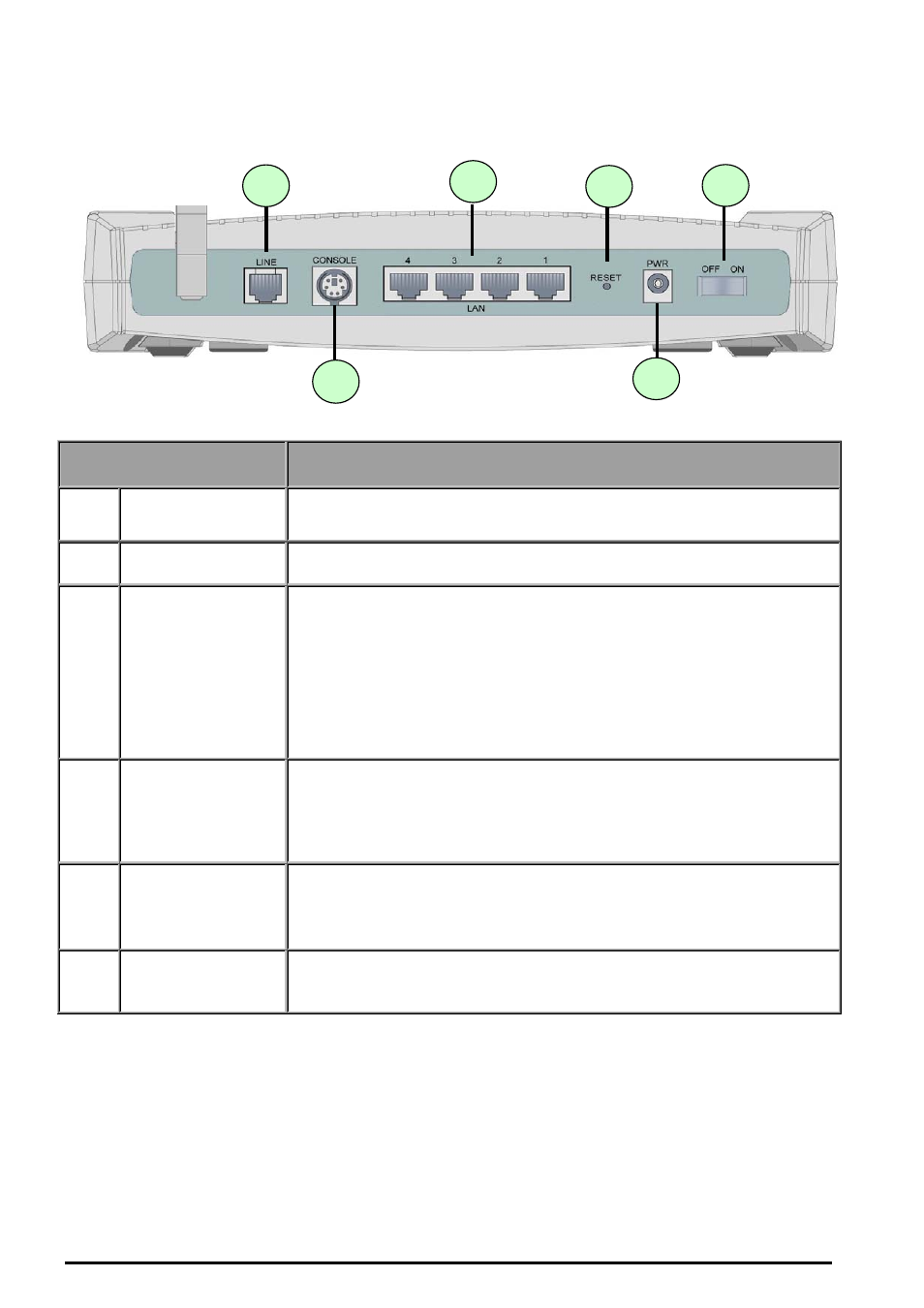

The Rear Ports
4
1 6 3
2 5
Port Meaning
1
Power Switch Power ON/OFF switch
2
PWR Connect the supplied power adapter to this jack.
3 RESET
To be sure the device is being turned on press RESET button for:
1-3 seconds
: quick reset the device.
6 seconds above, and power off, power on the device : restore to
factory default settings. (Cannot login to the router or forgot your
Username/Password. Press the button for more than 6 seconds).
Caution : After pressing the RESET button for more than 6 seconds, to be
sure you power cycle the device again .
4
LAN
1X — 4X
(RJ-45 connector)
Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one of the four
LAN ports when connecting to a PC or an office/home network of
10Mbps or 100Mbps.
5
CONSOLE
Connect a PS2/RS-232 cable to this port when connecting to a PC’s
RS-232 port (9-pin serial port).
6
LINE
Connect the supplied RJ-11 (“telephone”) cable to this port when
connecting to the ADSL/telephone network.
