Braun MILLENIUM 5 - Manual (Page 14)

Page 2
NL917-05-003.ai
UP DOW N 3281 9
FOLD UNF OLD 3282 0 ®
Specified (recommended) Available Braun
Lubricant Type Lubricant Amount Part No.
LO - Light Oil
LG - Light Grease
Light Grease Lubriplate 4 oz.
(Multipurpose) Can
Light Penetrating Oil LPS2, General Purpose oz.
(30 weight or equivalent) Penetrating Oil Aerosol Can
Stainless Stick Door-Ease .68 oz.
Style (tube) Stick (tube)
DE - Door-Ease
5807
5806
5805
See the Maintenance/Lubrication Schedule for recommended applications per number of cycles.
Maintenance and Lubrication

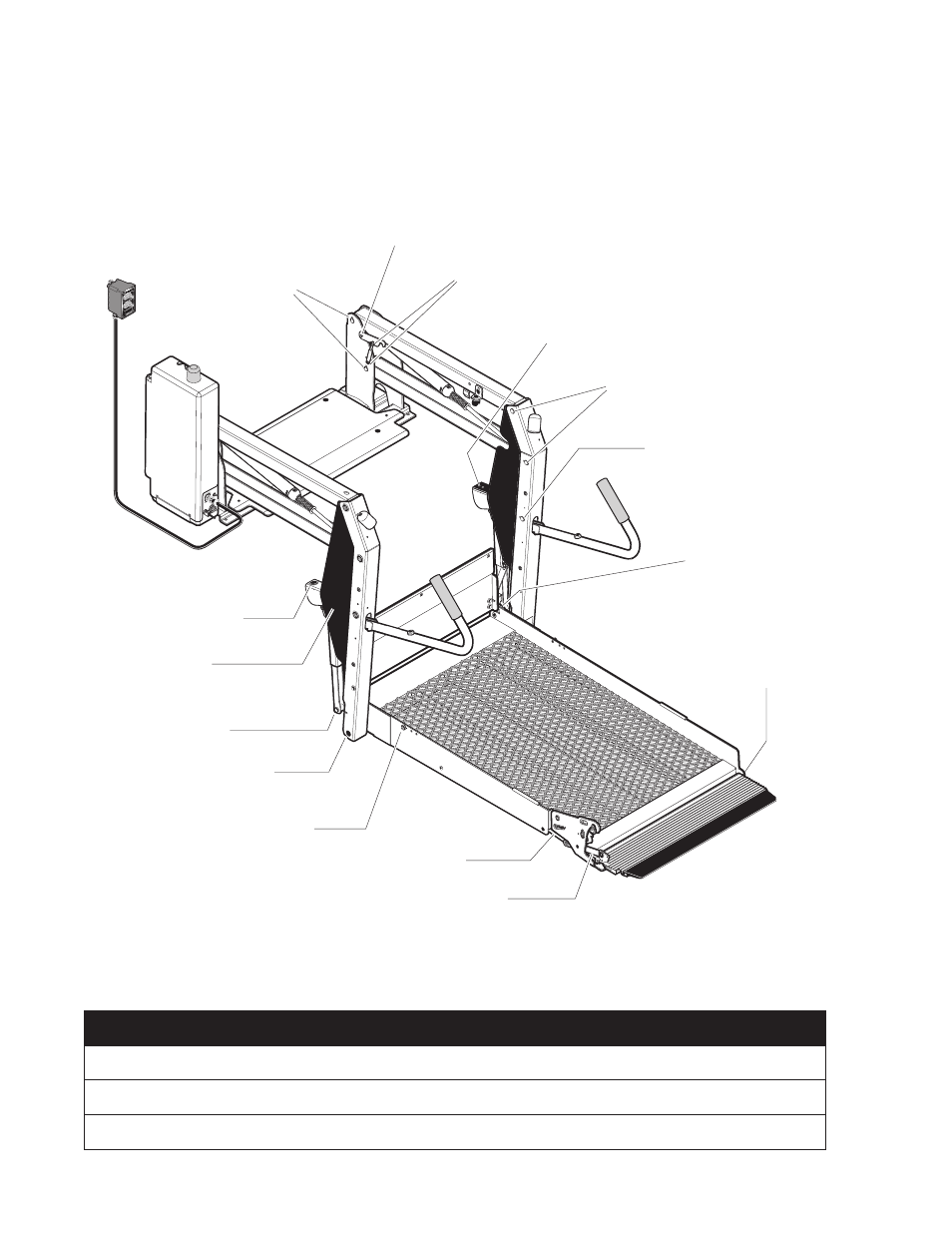

Lubrication Diagram
Handrail Pivot Pins (2)
LO
Parallel Arm Pivot Pins (8)
LO
Lift-Tite Latches
(Tower Pivot Points - 2)
LO
Lift-Tite Latch Dampening Spring
(2 springs - 4 Points) LO
Parallel Arm
Pivot Pins (8)
LO
Inner Roll Stop (IB)
Pivot Points
LO
Outer Barrier Hinge
Pivot Points (2)
LO
Outer Barrier Latch Lever
LO
Outer Barrier Latch LO
Platform Pivot Pin (2 Points)
LO
Platform Fold Axles (2)
LO
Rotating Pivot Slide
Arm UHMW Slide ()
DE
Rotating Pivot
Slide Arm Pivot Pins
LO
Lift-Tite Latch Roller Assemblies (2)
LO
Rotating Pivot Slide Arm
UHMW Bearings (2) DE
