For practising in the rehearsal room or at home, please wire your VIRTUBE as

shown in fig. 3.1. Connect a CD player or drum computer to the CD IN input.

If you want to practice with headphones, connect your headphones to the

LINE OUT/PHONES jack. The built-in loudspeaker will be muted automatically.

Connect the dual footswitch supplied with the unit to the FOOTSWITCH jack

on the VIRTUBE. The CHANNEL footswitch switches between the channels.

The IN/OUT footswitch turns the effect on and off (VT30FX only).

4. Installation

Except for the INPUT jack (1/4" TS), all audio inputs and outputs of the BEHRINGER

VIRTUBE are on 1/4" TRS connectors. Please see Chapter 5, “Specifications” for

more information.

Please ensure that the unit is installed and operated only by people
qualified to do so. During installation and operation the user must have
sufficient electrical contact to earth. Electrostatic discharge may affect
the operation of the unit.

strain relief clamp

sleeve

tip

sleeve

(ground/shield)

Unbalanced ¼" TS connector

tip

(signal)

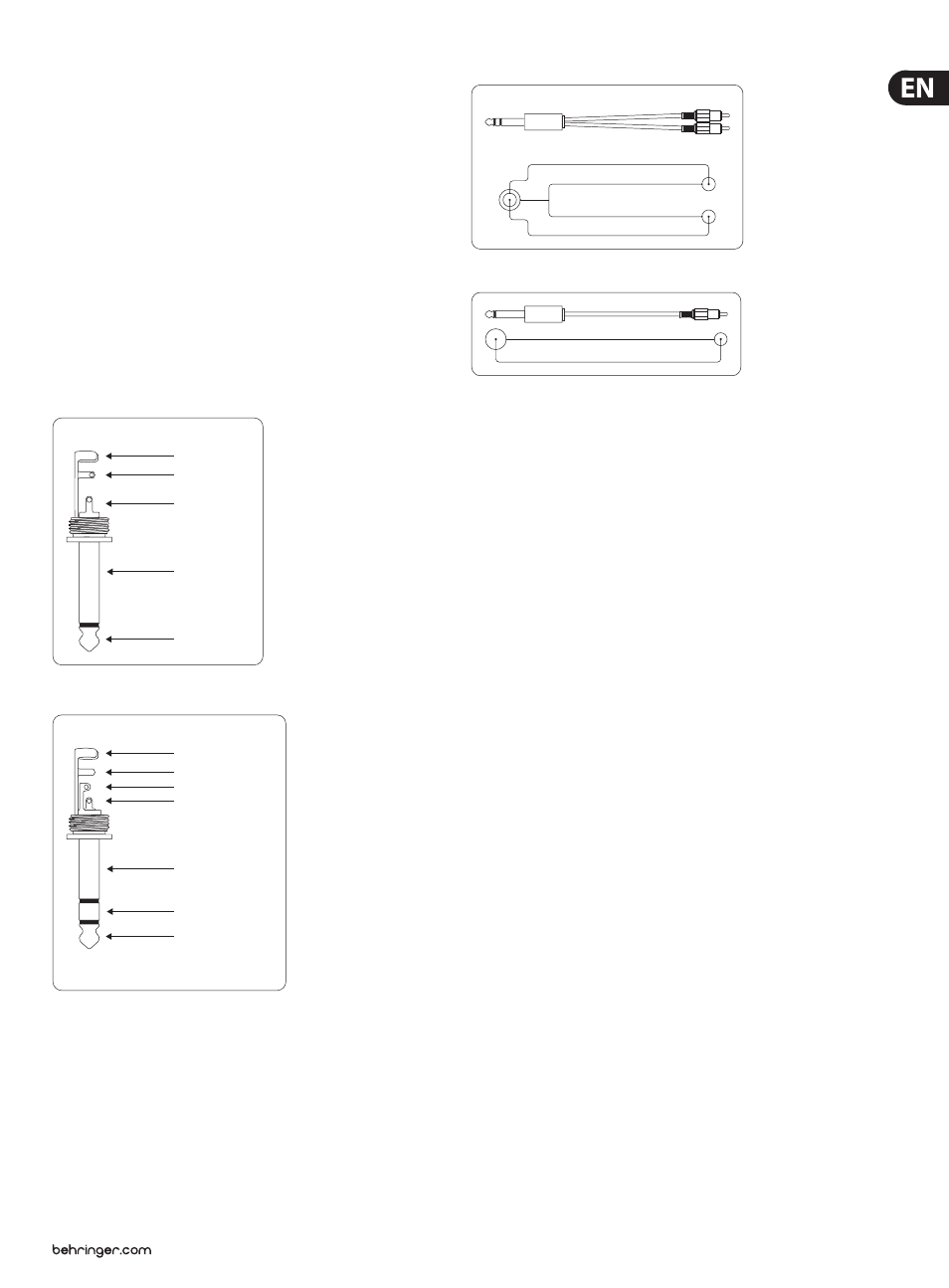

Fig. 4.1: 1/4" TS connector

strain relief clamp
sleeve
ring
tip

sleeve

ground/shield

For connection of balanced and unbalanced plugs,

ring and sleeve have to be bridged at the stereo plug.

Balanced ¼" TRS connector

ring

cold (-ve)
tip

hot (+ve)

Fig. 4.2: 1/4" TRS connector

R

L

R

L

ring

tip

sleeve

tip

tip

sleeve

sleeve

Fig. 4.3: Stereo adapter cable

sleeve

sleeve

tip

tip

Fig. 4.4: Mono adapter cable
