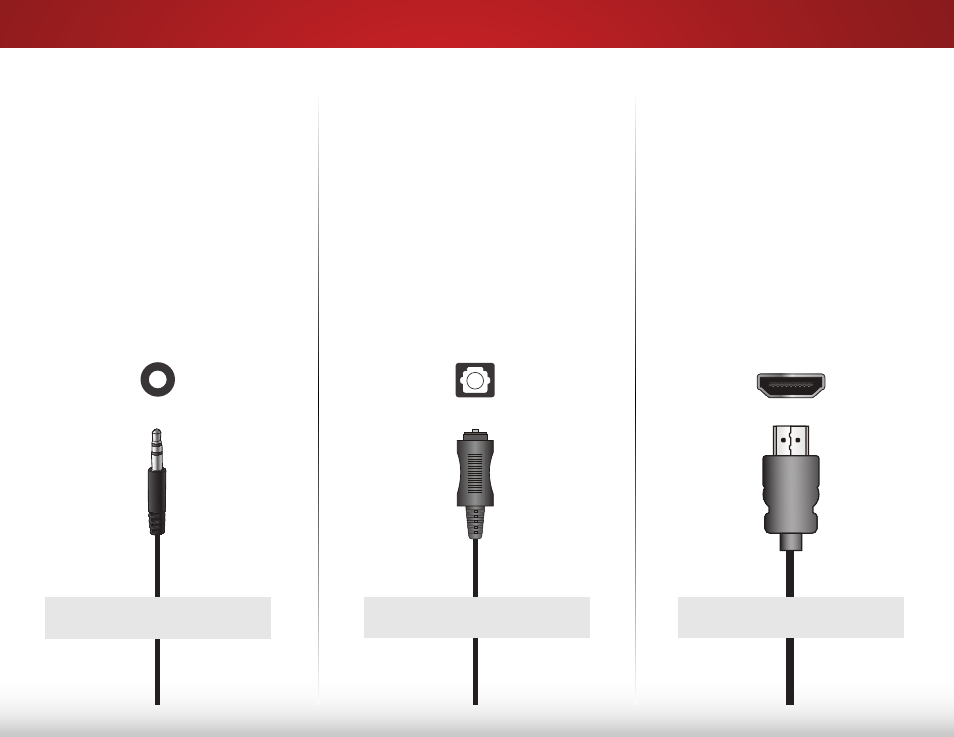

HDmi CABLe
HDMI technology transmits crystal-clear digital
multi-channel surround audio through a single HDMI
cable. Audio Return Channel-enabled (ARC) TVs allow
audio to be sent over an already connected HDMI
cable, eliminating the need for a separate audio cable.
See Connecting an Audio Device - ARC on page 18.
• ARC 2-way Communication
(Auto setup)
• pCM, DTS, Dolby Digital
• 2.0-5.1 Scaleable Lossless
Digital Audio Connection
• Audio and Video Signals
BEST
HDMI
HDMI
optiCAL/SpDiF CABLe
Optical/SPDIF cables transmit audio signals as
pulses of light through a cable made of plastic
fibers. Audio signals are digitally transmitted
between devices.
BETTER
• pCM Stream (Lossless)
• Dolby Digital 5.1 Channel
• DTS 5.1 Channel
• Digital Connection
• Audio Signal Only
Optical/SPDIF
DIGITAL OPTICAL AUDIO
CONNECTING AN AUDIO DEVICE - AUDIO CABLE TypES
3.5mm CABLe
AV cables (or Composite cables) are the
traditional way of connecting your devices to
your audio device. Audio signals are sent over
3.5mm connectors.
• Quality Stereo Connection
• 2.0 Channel
• Analog Connection
• Audio Signal Only
ANALOG AUDIO/
HEADPHONE JACK
3.5mm
GOOD
