©2012-2013 DJI Innovations. All Rights Reserved.
15 |
Low-Voltage Alert
Low-Voltage Alert is to indicate that the battery cannot provide enough power for the aircraft, in order to warn
you to land the aircraft ASAP. There are both first level and second level protections. It is not for fun, you should
land your aircraft ASAP to prevent your aircraft from crashing or other harmful consequences!!!
In ATTI. Mode & GPS ATTI. Mode.
 The first level protection has LED warning.
 During second level protection the aircraft will land automatically with LED warning. Meanwhile the center
point of throttle stick will move up slowly to 90% of endpoint, you should land ASAP to prevent your aircraft
from crashing! When the center point is at 90% of endpoint, aircraft will still ascend slowly if you continue to
pull the throttle stick, and the control of Pitch, Roll and Yaw are the same as before.
(1) Configure the FailSafe function in the assistant software -> “Advanced” -> “F/S” and read the
instruction thoroughly and carefully.
(2) Configure the Low-Voltage Alert function in the assistant software -> “Advanced” -> “Voltage” and
read the instruction thoroughly and carefully.

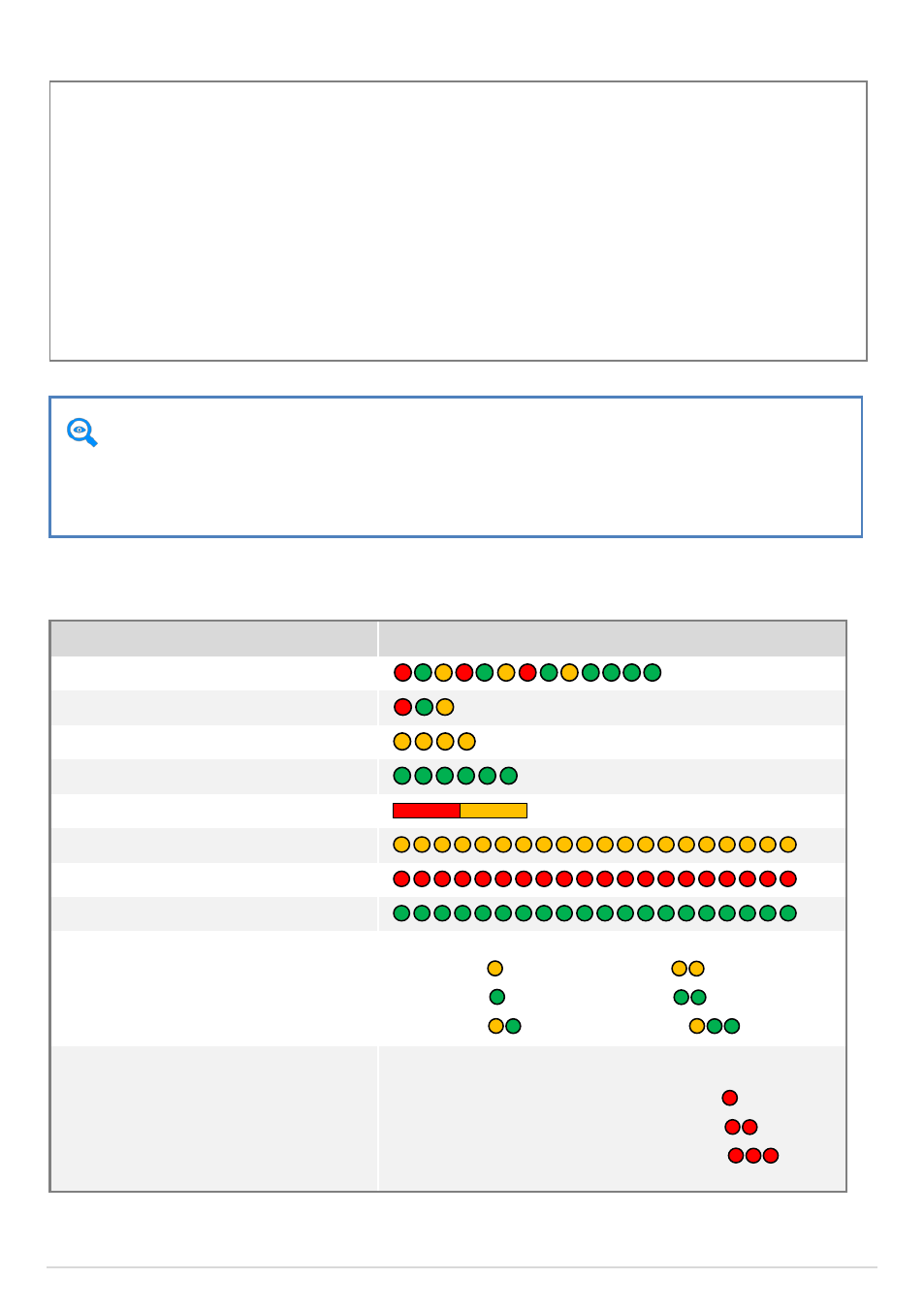

LED Description
System Status LED Flashing
System start and self-check
IMU abnormal data
Warm up after power on
Bias of Sensors too Big
Compass Error too Big
Tx signal lost
Low Voltage Alert
Record forward direction or home point
Control Mode Indictor
Manual Mode: None
ATTI. Mode: ( stick(s) not at center )
GPS Mode: ( stick(s) not at center )
IOC Mode: ( stick(s) not at center )
GPS Signal State Indicator
（GPS/Compass Module is necessary）
GPS Signal is Best(GPS Satellite number > 6): None
GPS Signal is Well(GPS Satellite number = 6):
GPS Signal is Bad (GPS Satellite number = 5) :
GPS Signal is Worst (GPS Satellite number < 5):
