Ultra Filter UF1
User manual
Page 4
clearaudio electronic GmbH 2010
3. Rear view and operating elements
Important:
The total power of all connected equipment should not exceed
more than 2000 Watt
1
Power sockets for equipment with max. 100 W power consumption, e.g. CD-Player,
Tuner,
2/8
Power sockets for equipment with max. 1000 W power consumption, e.g.,
Power amplifier (Class A)
3
Main switch (complete switch - off)
4/5
Grounding (connected with protective conductor / PE)
6
Main fuse T 10A / 250V
7
Power sockets for equipment with max. 500 W power consumption
8
See no. 2
9
Power line
1

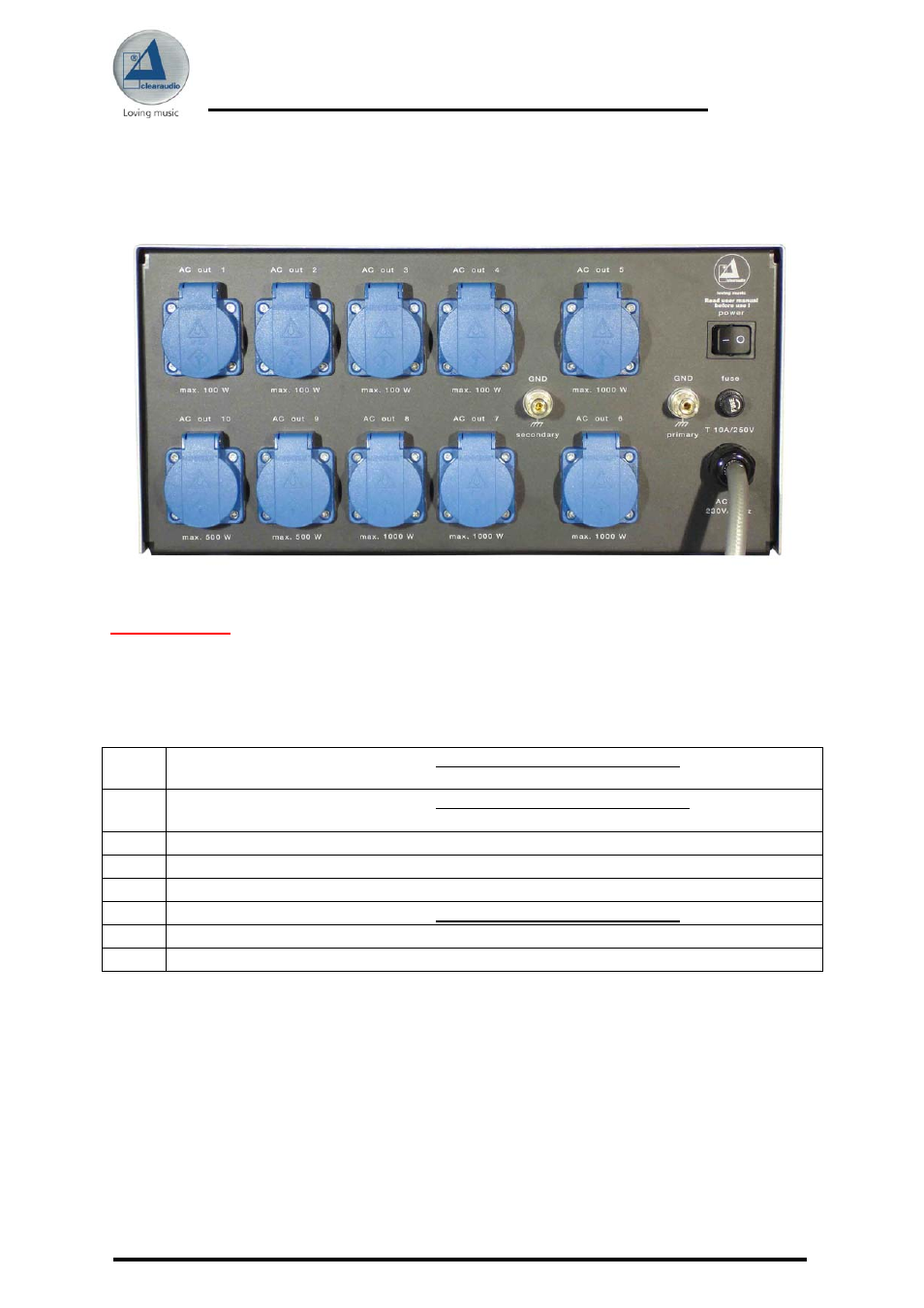

Pic. 2: Rear view and operation elements
