Ambient
User manual
Seite 9
clearaudio electronic GmbH 2008
Place the pulley on the motor spindle. The distance between the pulley and the motor housing
should be approx. 3 mm. Tighten the three little screws inside the pulley with the aluminium
screwdriver provided.
Place now the motorunit beside your Ambient turntable. The distance between the motorunit and
the turntable should be
2 - 2,5 cm!
3 mm

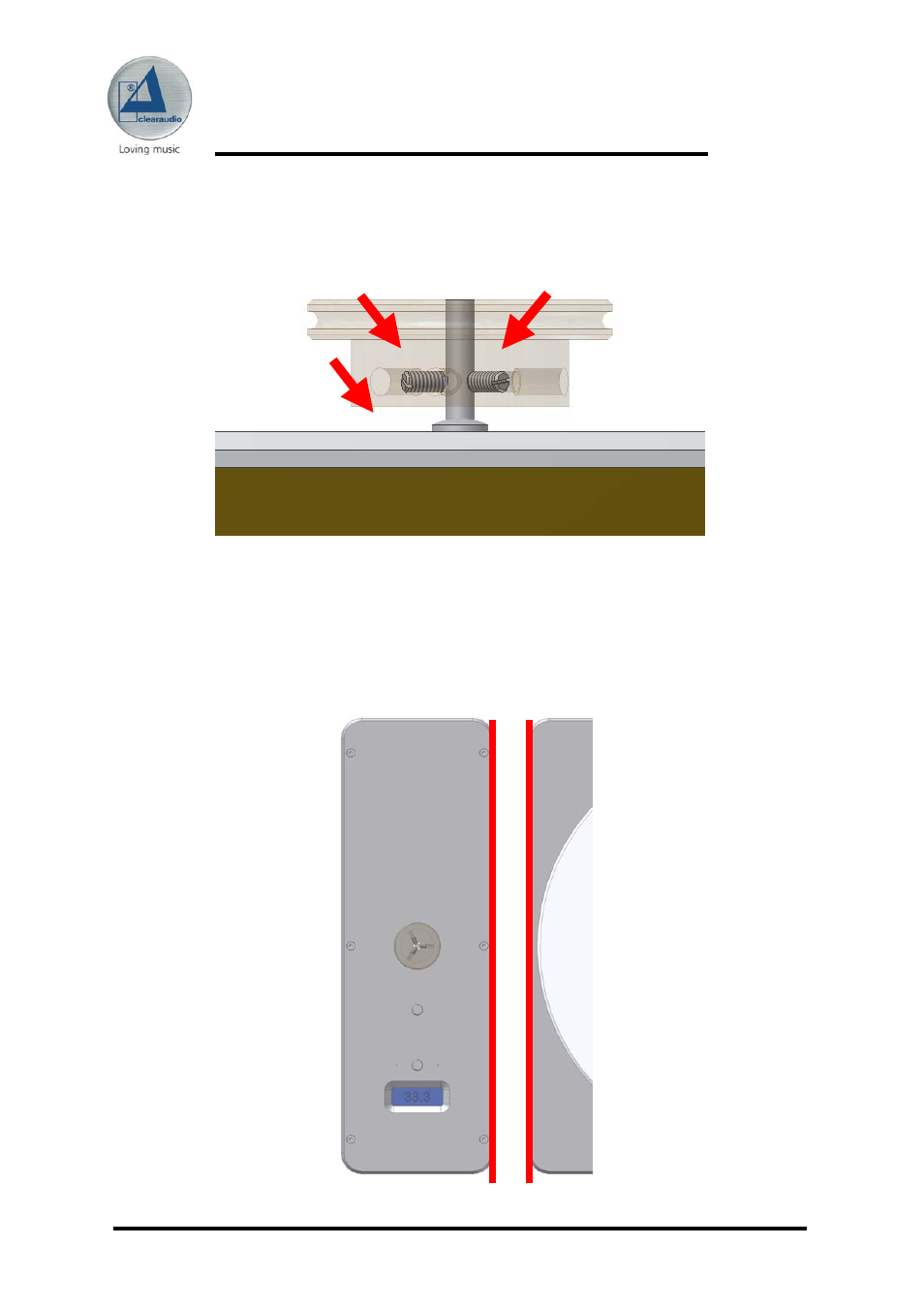

Pic. 5: Placing the pulley on the motor spindle
Pic. 6: Distance between motor unit and Ambient turntable
2 – 2.5 cm
