4.2 Satisfy mounting
To mount the tonearm base to the Ambient armboard please use the screws without
nuts (M4x20) and place it like the red marked screws.
Please put careful the cables and the tonearm through the armboard, pay attention that
no wire will be damaged! Now fix the tonearm with the 2 screws ont the right and the
left side, not to much, so that you can adjust it in the next steps!

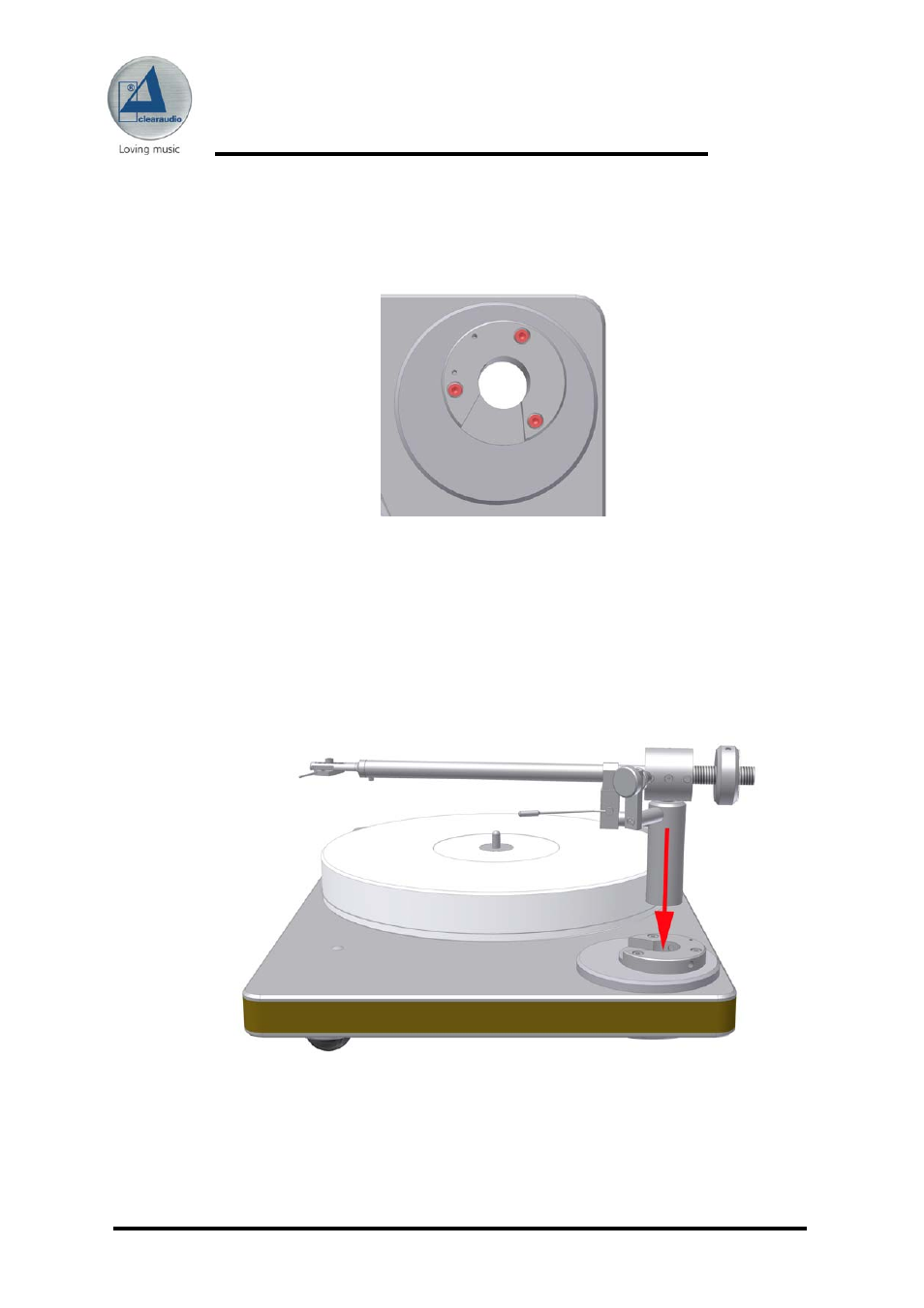

Pic. 16: Mounting the tonearm base for Satisfy
Pic. 17: Mounting the clearaudio Satisfy tonearm
