SHOW BATTEN 100

CONTROL PANEL

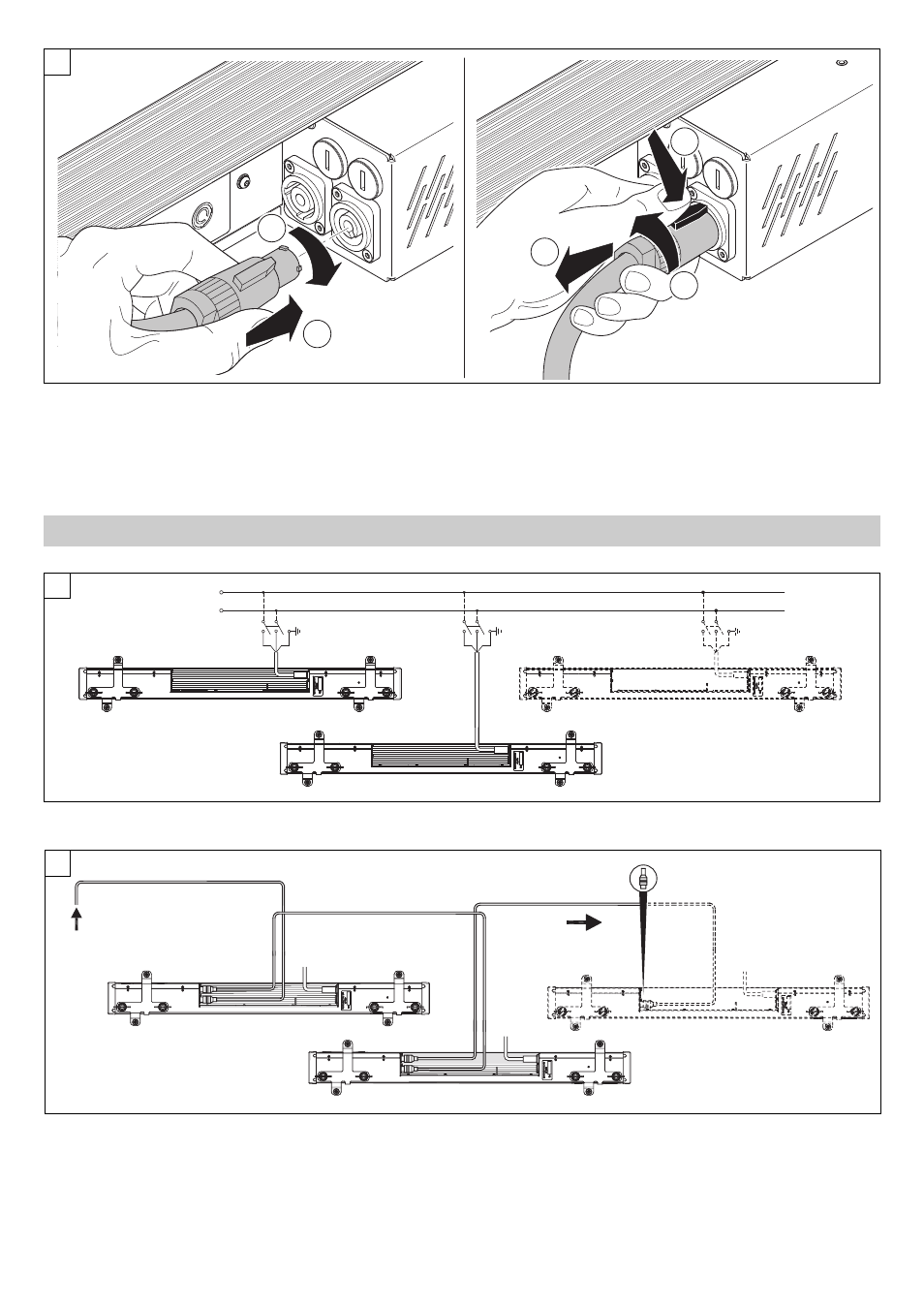

Connections to the power mains - Fig. 6

DMX 512

DMX 512

5 PIN

Power Supply

6

7

Connections to the control signal line (DMX) - Fig. 7
Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ω characteristic impedance, 22-24 AWG, low capacity. Do not use
microphone cable or other cable with characteristics differing from those specified. End connections must be made using XLR type 3-pin male/female
connectors. A terminating plug must be inserted on the last projector with a resistance of 120 (minimum 1/4 W) between terminals 2 and 3.
IMPORTANT: The wires must not make contact with each other or with the metal casing of the connectors. The casing must be connected to the shield
braid and pin 1 of the connectors.

1

2

1

2

3

5

Connecting and disconnecting the power cord - Fig. 5

Continued
